描述

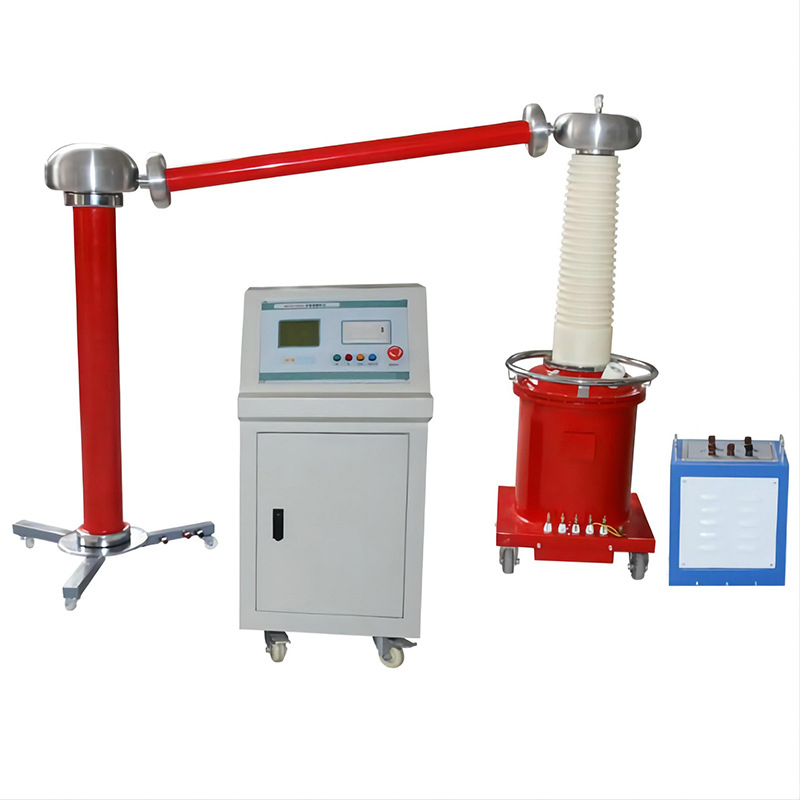

Transformer
This series of operation table is designed and produced according to the use range of light high-voltage test transformers, its functions are:
Closing sound and light alarm;
Timing sound and light alarm;
Electronic low voltage current protection (box type); High voltage direct reading;
Pressure test time freely set (数字显示); Mobile structure (桌子)
Transformer
| Input voltage V | 200 | 200 | 400 | 400 | 400 | 400 | 400 |
| 输出电压 | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| Office release PC | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤10 | ≤10 |
| Impedance voltage % | ≤8 | ≤8 | ≤8 | ≤8 | ≤10 | ≤10 | ≤10 |
| No-load current % | ≤6 | ≤6 | ≤6 | ≤6 | ≤5 | ≤5 | ≤5 |
| Waveform distortion % | <3 | <3 | <3 | <3 | <3 | <3 | <3 |
| specification | 容量 (kVA) | 能量源 | exportation | 方面 (毫米) | Reference weight (公斤) | |||
| Phase number | Voltage （V) | 频率 | Voltage （V) | 当前的 (A) | ||||
| HM-XC | 3 | 1 | 200 | 50 | 140 | 13.6 | 300*400*220 | 17 |
| HM-XC | 5 | 1 | 200 | 50 | 240 | 22.7 | 300*400*230 | 20 |
| HM-TC | 10 | 1 | 200 | 50 | 240 | 45.5 | 410*540*680 | 28 |
| HM-TC | 15 | 1 | 200
380 |
50 | 240
430 |
68
39 |
410*540*680 | 35 |
| HM-TC | 20 | 2 | 380 | 50 | 430 | 52.7 | 410*540*680 | 40 |
| HM-TC | 30 | 2 | 380 | 50 | 430 | 78.9 | 470*630*1100 | 65 |
| HM-TC | 50 | 2 | 380 | 50 | 430 | 131.5 | 1020*650*1600 | 65 |
