描述

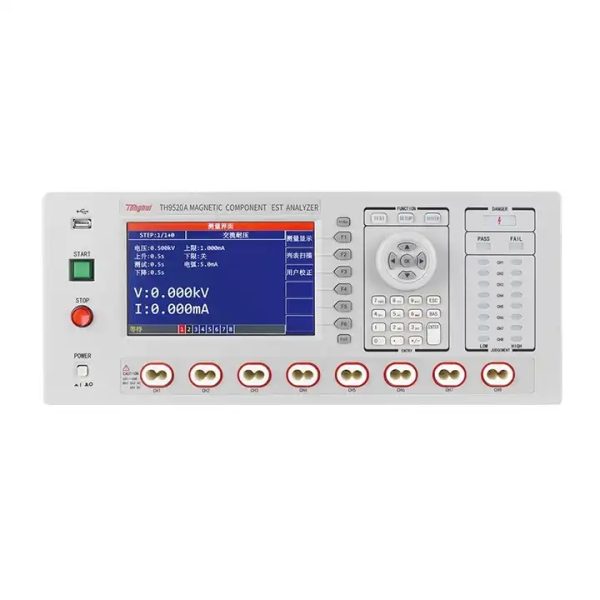

Integrated Magnetic Analyzer
特征
High-resolution: 7-英寸 800 × 480 点, TFT液晶显示屏
Six-in-one comprehensive analysis, one machine can achieve the
comprehensive test needs of coil components
High-power AC withstand voltage analysis
DC voltage analysis
Insulation resistance analysis
Turn-to-turn insulation analysis
DC low resistance analysis
Inductance test analysis
Eight-channel switching technology that can test eight different
components simultaneously
500VA power AC withstand voltage design, in line with UL 1004-1 发动机
test standards
Insulation resistance test: maximum voltage can reach 5kV
直流 / IR automatic rapid discharge function
Turn-to-turn insulation test: sampling ADC promoting to 12bit, 200兆赫兹
sampling rate
DC low resistance test: support DC resistance calculation of Y-type motor
DC low resistance temperature conversion function and optional
温度传感器
Inductance test analysis of up to 100kHz frequency
Quick contact check function to realize rapid detection of test fixture
New-type high voltage test fixture
Four-terminal Kelvin test of DC low resistance and inductance
Test steps up to 32
Internal file storage and external U disk file saving
Integrated Magnetic Analyzer
技术参数
| 模型 | TH9520 | |||||
| Number of Channels | 8 | |||||
| Withstand Test | ||||||
| 输出电压 | 交流电 | 0.050 – 5.000电压,Step 0.001kV,Frequency 50Hz/60Hz ±0.1%,sinusoidal waveform | ||||
| 直流 | 0.050 – 6.000电压,Step 0.001kV | |||||
| 准确性 | ± (1% 设定值 + 0.1% of full scale) | |||||
| Adjustment Rate | (1% 输出 + 0.1% of full scale) 额定功率 | |||||
| 电流范围 | 交流电 | Voltage≤4.000kV: 0.001嘛 – 120.0嘛, 电压>4.000电压:0.001mA – 100.0mA | ||||
| 直流 | 0.1微安 – 20.00嘛 | |||||
| 准确性 | ± (1% of reading + 0.5% of full scale), AC Real: ± (1% of reading + 5% of total current reading + 5 数字) | |||||
| 输出功率 | 500VA | |||||
| ARC | 交流电 | 1.0嘛 – 20.0嘛,0.1mA Step | ||||
| 直流 | 1.0嘛 – 10.0嘛,0.1mA Step | |||||
| 绝缘电阻测试 | ||||||
| 输出电压 | 0.050 – 5.000电压,Step 0.001kV Accuracy: ± (1% of set value + 0.1% of full scale) | |||||
| 电阻测试范围 | 0.100MΩ- 99.99GΩ Resolution:0.1MΩ | |||||
| Measurement Accuracy | ≥500V | 1.000MΩ – 1.000GΩ, ± (3% of reading + 5 数字) | ||||
| 1.000GΩ – 10.00GΩ, ± (7% of reading + 5 数字) | ||||||
| 10.00GΩ – 99.99GΩ, ± (10% of reading + 5 数字) | ||||||
| < 500V | 0.100MΩ – 1.000GΩ, ± (7% of reading + 5 数字) | |||||
| 1.000GΩ – 99.99GΩ,for reference only, no accuracy requirements | ||||||
| Time Setting | ||||||
| 上升时间 | OFF,0.1s – 999.9s,Step 0.1s | |||||
| Test Time | 0.1s – 999.9s,Step 0.1s | |||||
| Fall Time | OFF,0.1s – 999.9s,Step 0.1s | |||||
| 等待的时间 | OFF,0.1s – 999.9s,Step 0.1s | |||||
| Turn-to-turn Insulation Test | ||||||
| Output Pulse Voltage | 0.01kV – 6.000kV,0.01kV Step,± 5% set value ± 15V | |||||
| Inductance Test Range | ≥10μH | |||||
| Pulse Energy | 取决于 0.36 Joule | |||||
| Waveform Sampling | 采样率: 12少量, 采样速度: 200兆赫兹, adjustable 8-level, Memory depth: 12k Byte, Sample average: 1 – 32 | |||||
| Number of Applied Pulses | 取决于 32 | |||||
| Judgment Method | Area comparison, area difference comparison, corona discharge, phase difference comparison | |||||
| Low Resistance Test / and Y Type Resistance Test | ||||||
| Test Signal | mΩ 1A,1Ω 0.5A,others ≤3V | |||||
| 测试范围 | 0.01mΩ – 1.2MΩ | |||||
| 反抗 | 范围 | 0.01mΩ – 120.00mΩ | 0.1mΩ – 1200.0mΩ | 0.001哦 – 12.000哦 | 0.01哦 – 120.00KΩ | 0.1KΩ – 1200.0KΩ |
| 准确性 | ± 0.5% of reading +0.04% of full scale | ± 0.3% of reading +0.03% of full scale | ± 0.2% of reading +0.03% of full scale | ± 0.1% of reading +0.03% of full scale | ± 0.2% + 0.03% of full scale) | |
| Inductance Test | ||||||
| Test Parameters | Ls,Lp,Rs,Rp,问 | |||||
| Measurement Accuracy | 0.5% | |||||
| Test Frequency | 100赫兹,120赫兹,1千赫, 10千赫, 100千赫 | |||||
| Test Signal Level | 1.0Vrms,10% 准确性 | |||||
