描述

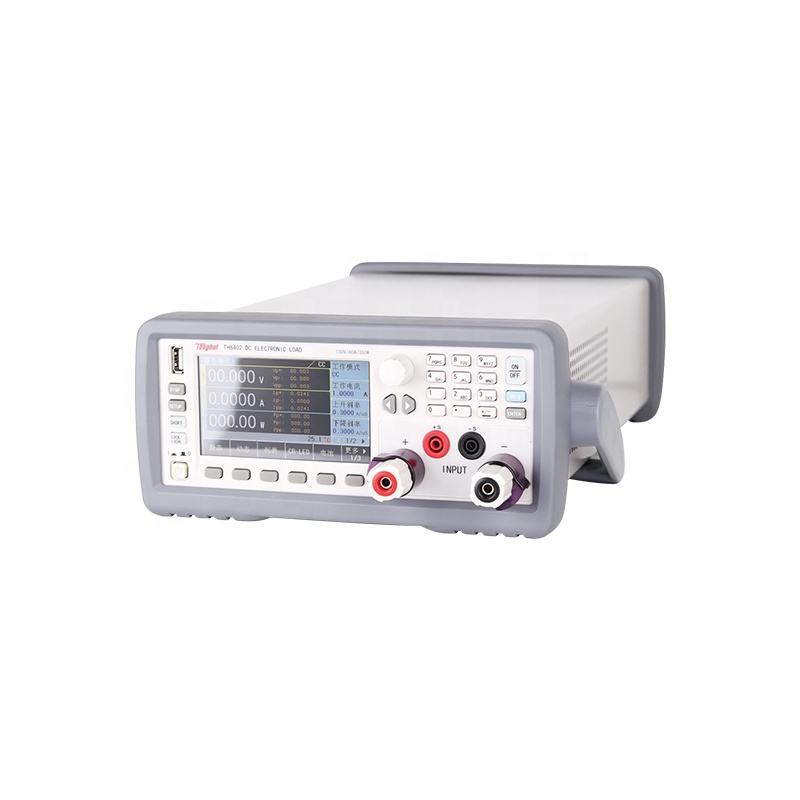

直流电子负载
- 简单的介绍
- TH8400 series is a programmable DC electronic load with high precision, high intelligence, and easy to operate. This series of instruments has a variety of test functions, 出众的表演, 清除显示, and menu operation which adapts to the production site rapid operation needs and laboratory high precision and high stability needs.
- 应用
- 力量
- Chargers, switching power supply, communication power, LED drivers, cell phone batteries, portable power source
- 新能源
- Solar cells, new power vehicles, electric bicycles
- Electronic power components
- Fuse / 连接器 / Relay / Sensor
- Automated equipment integration testing
直流电子负载
| 模型 | TH8401 | TH8402A | TH8402 | TH8411 | TH8412 | |||||||
| Rated value | 力量 | 175瓦 | 350瓦 | 350瓦 | 175瓦 | 350瓦 | ||||||
| 电压 | 150V | 150V | 150V | 500V | 500V | |||||||
| 当前的 | 30A | 30A | 60A | 15A | 30A | |||||||
| 最小. Operation Voltage | 1.5V @ 30A | 1.2V @ 30A | 1.5V @ 60A | 1.8V @15A | 3V @ 30A | |||||||
| 最小. Rising Time | 20uS | |||||||||||
| Static Mode | Constant Current (CC) Mode, Constant Resistance (Cr) Mode, Constant Voltage (简历) Mode, and Constant Power (CP) Mode. | |||||||||||
| 电压 | 范围 | 0~15V | 0~150V | 0~15V | 0~150V | 0~15V | 0~150V | 0~50V | 0~500V | 0~50V | 0~500V | |
| Setting | 解决 | 0.2MV | 2MV | 0.2MV | 2MV | 0.2MV | 2MV | |||||
