Tonghui TH7105 Programmable Line AC Varible Power Supply
- 描述
- 询问
描述

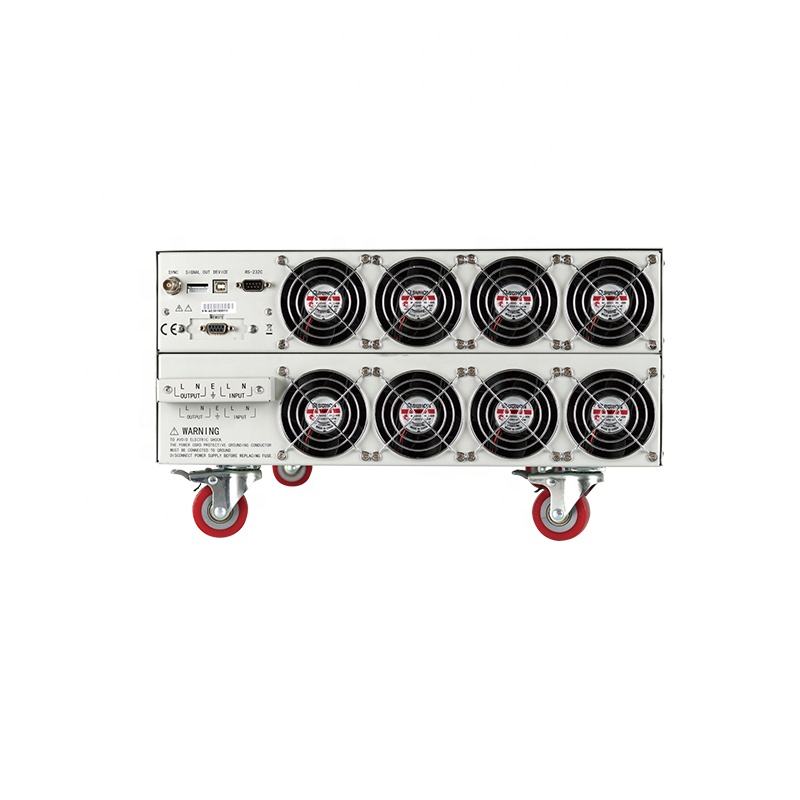

AC Varible Power Supply
特征
24-bit color 4.3-inch 480 × 272 color LCD screen, Chinese and
English interfaces
Linear output design
Flexible and convenient operation: numeric keypad, coarse and
fine adjustment knob
手动的 / program control mode output function, timing output
功能, dimming mode output function, surge and notch function
Front panel output function
Boot hold function
Store setting parameters and test results
Support USB to upgrade the instrument firmware
Multiple protection modes: set the current protection (HI-A)
Overvoltage Protection (OVP), Low Voltage Protection (LVP)
Overcurrent protection (OCP), 过度保护 (OPP)
Over temperature protection (OTP)
Two-gear temperature to control fan speed
Remote input and output functions:
Remote input: input control of 7 groups of memory
Remote output: PASS, FAIL, PROCESSING, internal output switch
Memory capacity:
手动的: 50 团体
Program control: 50 团体, 9 步骤 / group
AC Varible Power Supply
应用
Motors and transformers
Electronic production design
灯光
Aerospace military
Network communication
| 模型 | TH7105 | TH7110 | TH7120 | |||
| Output Parameters | ||||||
| Rated Power | 500瓦 | 1000瓦 | 2000瓦 | |||
| 输出电压 | 0~300V | |||||
| Output Frequency | 45.0Hz~500Hz | |||||
| Maximum Current (RMS) | 0-150V | 4.2A | 8.4A | 16.8A | ||
| 0-300V | 2.1A | 4.2A | 8.4A | |||
| MaximumCurrent (Peak) | 0-150V | 16.8A | 33.6A | 67.2A | ||
| 0-300V | 8.4A | 16.8A | 33.6A | |||
| Total Harmonic Distortion (THD | at 45.0 ~ 500Hz, ≤ 0.5% (resistive load) | |||||
| Commonparameters | Phase | 1Ø/2W | ||||
| Crest Factor | ≥4 | |||||
| Linearity Adjustment Rate | 0.1%±10% | |||||
| Load Regulation | 0.5%(resistive load) | |||||
| Response Time | <100uS | |||||
| Setting Parameters | ||||||
| 电压 | ~ 300V | 解决 | 0.1V | 准确性 | ±0.5%+2 digits | |
| 频率 | 45.0Hz ~ 500Hz | <100赫兹: 0.1赫兹 ; ≥100Hz: 1赫兹 | ±0.02% | |||
| Initial / Final Phase Angle | ~ 359° | 1° | ±1°(45 ~ 65Hz) | |||
| 测量参数 | ||||||
| 电压 | ~ 300V | 解决 | 0.1V | 准确性 | ±0.5%+2 digits | |
| 频率 | 45.0Hz ~ 500Hz | <100赫兹: 0.1赫兹 ; ≥100Hz: 1赫兹 | ±0.1Hz | |||
| 当前的 | 0-150V | 0.000 ~ 4.200A | 0.000 ~ 8.400A | 0.000 ~ 16.800A | ||
| 0-300V | 0.000 ~ 2.100A | 0.000 ~ 4.200A | 0.000 ~ 8.400A | |||
| 解决 | 0.001A | |||||
| 准确性 | ±0.5%+5 digits | |||||
| Peak Current | 0-150V | 0.00 ~ 16.80A | 0.00 ~ 33.60A | 0.00 ~ 67.20A | ||
| 0-300V | 0.00 ~ 8.40A | 0.00 ~ 16.80A | 0.00 ~ 33.60A | |||
| 解决 | 0.01A | |||||
| 准确性 | ±5%+2 digits | |||||
| 力量 | 范围 | ~ 500W | ~ 1000W | ~ 2000W | ||
| 解决 | 0.1瓦 | 0.1瓦(0 ~ 1000W);1瓦(1000 ~ 2000W) | ||||
| 准确性 | ±0.6%+5 digits | |||||
| Power Factor | 0.001-1.000 | 解决 | 0.001 | 准确性 | ±2%+2 digits | |
