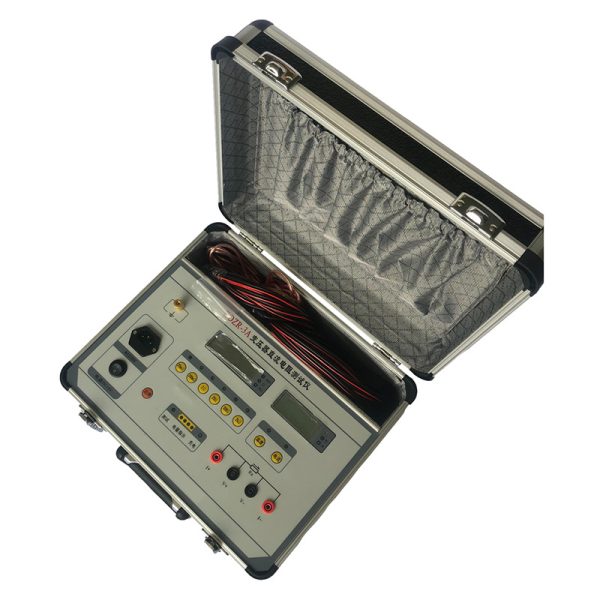

KDZR-3A Transformer Dc resistance tester

描述

Dc resistance tester

产品概述
Kdkr-3a DC resistance rapid tester is a high-precision replacement product for DC single and double arm Bridges. The switching power supply technology used by the instrument, its measurement speed is more than one hundred times faster than the bridge, the display part consists of four half LCD liquid crystal display measurement results, three half LCD liquid crystal display ambient temperature or test current value, to overcome the shortcomings of other similar products by LED display value in the sun inconvenient reading, and has the automatic arc elimination function. The instrument has the advantages of fast measurement speed, 高精准度, intuitive display, 抗干扰能力强, 小尺寸, 功耗, stable and reliable test data, and is not affected by human factors. The instrument is equipped with a rechargeable battery pack (12V), which can be used both by AC and DC for on-site and field testing.
This product meets the requirements of DLT 845.3-2004 “General Technical Conditions for resistance measuring devices Part 3 DC Resistance Tester”.

Product use
It is an instrument for measuring the DC resistance of various inductive loads such as power transformers, large motors, transformers and low voltage switch contact resistance, wire and cable or weld interface resistance.

Dc resistance tester

性能特点
Fast test speed: the maximum output charging current of the instrument can reach 3A, and the measurement can effectively compensate the current inertia of large inductance equipment, accelerate the core saturation, thereby shortening the charging time and improving the test speed, which is hundreds of times faster than the traditional instrument single and double arm bridge.
高准确率: In addition to the four-terminal measurement method, the instrument also adopts the constant current power supply technology, which makes the charging current of the inductive load remain at a relatively stable value, and the anti-inductive ability is stable and the anti-interference ability is strong, thus ensuring the measurement accuracy. And the use of imported high-quality components, the measurement results are high accuracy, 良好的重复性.
Wide measuring range: resistance measuring range is 1μΩ ~ 2KΩ, wide measuring range.
Ac and DC dual use: the instrument is equipped with rechargeable battery pack, AC and DC power supply, portable design, easy to use and carry.
