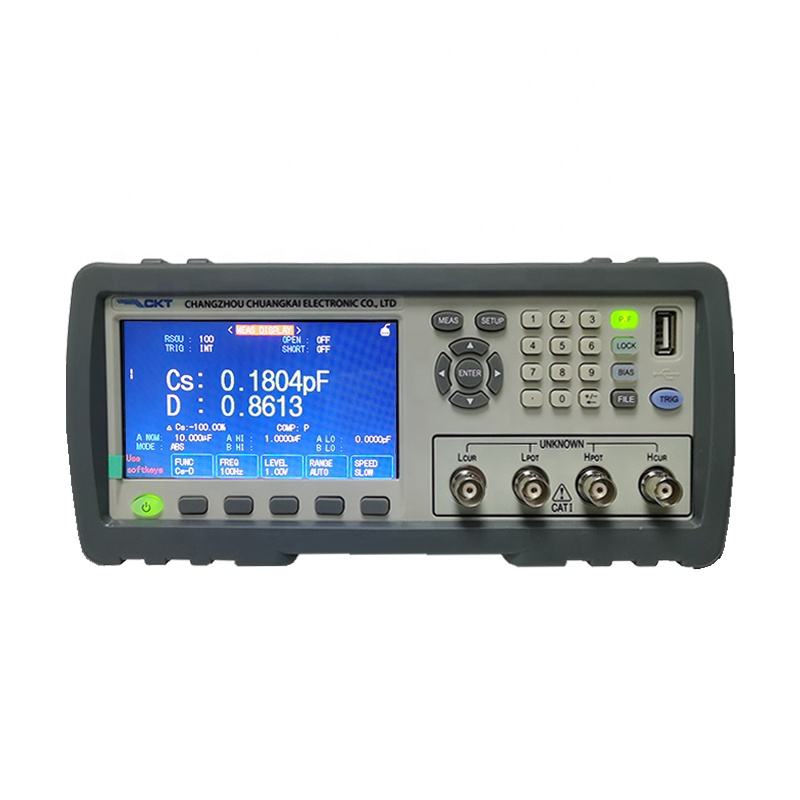

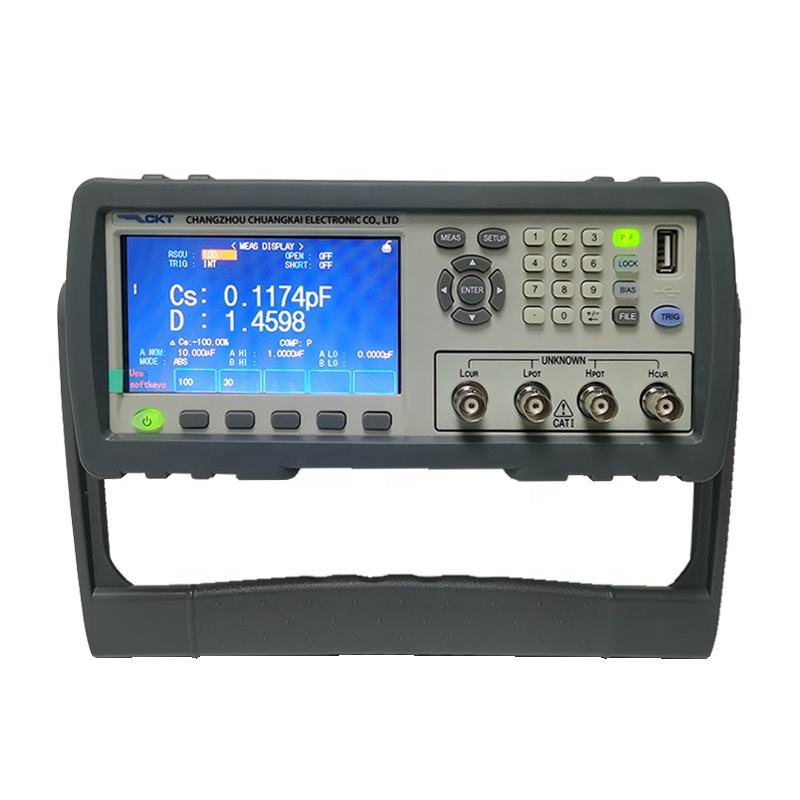

Resistance Tester
产品描述
GA28xx series is a low-end LCR digital meter with new technology, high performance and low price, which can read test results more intuitively. 50Hz-200KHz multi-frequency and 0.1% basic accuracy can meet the requirements of production line quality assurance, incoming inspection and laboratory measurement.
Resistance Tester
技术参数
|
规格 |
|||
| 模型 |
GA2810B |
GA2830 |
GA2832 |
| 参数 | L,C, 右, | Z|, D, 问,X,ESR,θ(Deg),θ(Rad) | ||
| Test Frequency | 100Hz-10KHz, 4 点 | 50Hz-100kHz,10 点 | 50HZ-200 kHz,16 点 |
| 基本精度 | 0.1% ± 5 dgt | ||
| Equivalent Circuit | Series, parallel | ||
| Math Function | Percent deviation | ||
| 范围 | 汽车, 抓住, Manual selection | ||
| Trigger Mode | INT, MAN, EXT, BUS | ||
| 测试速度 (≥1千赫) | 快速地: 30t/s, Medium: 10t/s, Slow: 3 t/s | ||
| Times Average | 1-255 | ||
| 延迟时间 | 0-60s, 1ms step | ||
| Adjustment | Open / short / load | ||
| Test Terminal Configuration | 5-terminal | ||
| Signal Level | 0.1V,0.3V,1V | ||
| 显示模式 | Direct, Δ, Δ%, V/I (Measured voltage/current monitoring) | ||
| Source Resistance | 30哦, 100哦 | ||
| 显示范围 | |||
| |Z|, 右,X,ESR | 0.1mΩ – 99.999MΩ | ||
| C | 0.01 pF – 9999uF | ||
| L | 0.01µH – 9999H | ||
| D | 0.0001 -9.9999 | ||
| 问 | 0.0001 – 9999.9 | ||
| q (Deg) | -179.99 -179.99 | ||
| q (Rad) | -3.1416 – 3.1416 | ||
| Δ% | -999.99% – 999.99% | ||
| 其他的 | |||
| 比较器 | 1-bin sorting | ||
| 贮存 | 多于 100 sets of internal instrument settings for storage/recall, 多于 500 sets of U disk expansion | ||

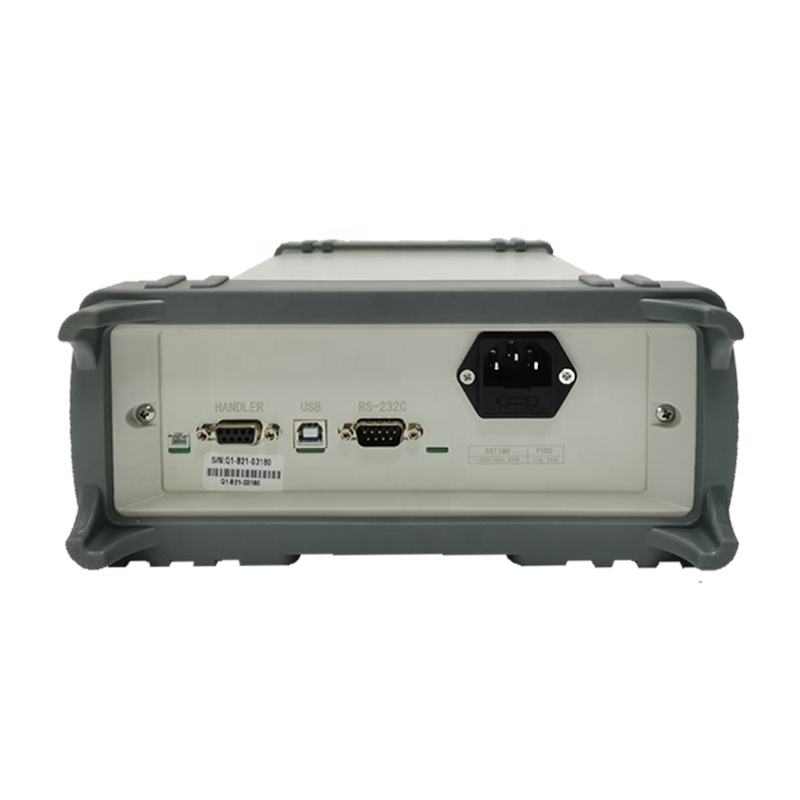

| 界面 | RS232C, USB主机, USBCDC, 处理程序, USBTMC, headphone jack, 选修的: GPIB | ||
| 一般特点 | |||
| Operating Requirement | 温度: 0℃~40℃; 湿度: 90%相对湿度 | ||
| 电源 | 电压: 198V~242V; 频率: 47.5赫兹 – 63赫兹, 功耗: ≤30VA | ||
| 尺寸和重量 | 380毫米(瓦) x102mm (H)*270毫米(D); 3.6公斤 | ||
| 订购信息 | |||

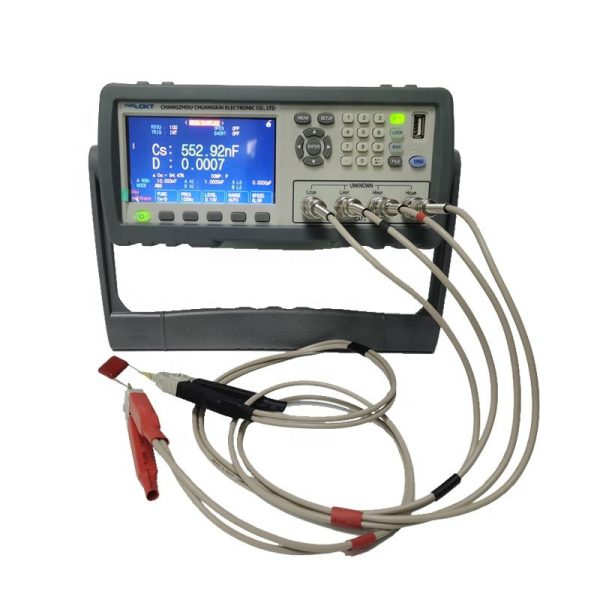

| 配件 | Kelvin Test clip; AC Power Cord | ||
| 选修的 | SMD patch test fixture; SMD patch test clip; Test fixture; Short-circuit slice | ||
