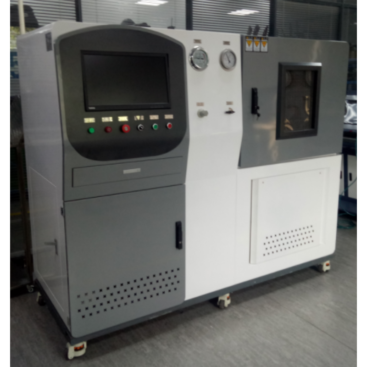

GA-Y109 High-Pressure Pulse Pressure Test Bench

描述

产品描述:

The high-pressure water pulse pressure tester is primarily used for pulse pressure testing of products such as pipes, radiators, water-cooled plates, cooling components, gas cylinders, 阀门, and pressure vessels. It operates at a test pressure of 0-80 MPa and is computer-controlled. Equipped with a data acquisition and processing system, it collects and stores pressure waveform data in real time. It can be configured with either pure water or a water-glycol mixture. It is suitable for fatigue testing of products.

技术参数

1. Factory Operating Environment:
电源: AC 380V (+15%/-10%), 50赫兹, 25千瓦.
Test Chamber Temperature: 10-35℃, 湿度: 20-90%相对湿度. Good ventilation is required. 2. Rated test pressure: 0-15 MMPa;
3. Mounting angle: 180° or 90°;
4. Test medium: High-temperature resistant, flame-resistant, and low-volatile.

Advantages and Features

1. The medium circuit utilizes high-quality SUS304 stainless steel piping; the test sample interface requires 7116 stainless steel adapters, ensuring convenient and reliable installation.
2. The overall noise level of the equipment must not exceed 70 分贝(A) (tested with a handheld sound meter at a distance of 1 meter from the equipment). Pipes and circuits must be clearly labeled and accompanied by drawings. Pressure gauges and other instruments must provide third-party calibration certificates.
3. Measurement/Recording Parameters: Environmental chamber temperature, medium temperature, DUT end pressure, pipeline pressure, 测试时间, and number of tests.
4. Data Acquisition and Processing System:
(A) Real-time acquisition and storage of pressure waveform data. (乙) Key parameters collected and processed include: pressurization waveform, pressure; oil temperature; test chamber ambient temperature; test start/end/in-progress time; number of test cycles; leak pressure, cycle number, ETC.
(C) Data Storage and Output: Collected information can be exported and saved as re-editable data files. Data output can be in tabular or graph format. Real-time pressure-over-time curves can be displayed and printed, with the mouse allowing for zooming in and out of curves and data tracking. Data storage and output features a database function, allowing for recording and review of historical measurement data. Reports can be automatically generated and printed, with real-time operation data or graph printing.
(D) The measurement and control software features an excellent communication and human-computer interface, enabling graphical and dynamic display of system operation. It also displays various measurement and control parameters, including pressure-time curves, in both tabular and graphical form. Measurement and control settings for measuring instruments and control components can be configured.
(乙) Leak detection and feedback control functions are available for each product, enabling timely detection of product failures.

Precautions for Use

1. Pay attention to safety and ensure the safety of equipment operators and the surrounding environment. 2. Operate the equipment according to the operating instructions and comply with applicable regulations and operating procedures.
3. Keep the equipment clean and dry to ensure its normal service life.
4. Before use, remove impurities and air from the system to ensure the accuracy and reliability of the test results.
5. Before conducting a high-voltage pulse pressure test, fully warm up and commission the equipment to ensure normal operation.
6. 测试后, clean and maintain the equipment to prevent damage that may affect the test results.
7. 测试期间, monitor test indicators in real time and record test results for subsequent analysis and evaluation.
8. Strictly adhere to the equipment’s scope of use and limitations. Do not overload or misuse the equipment.
