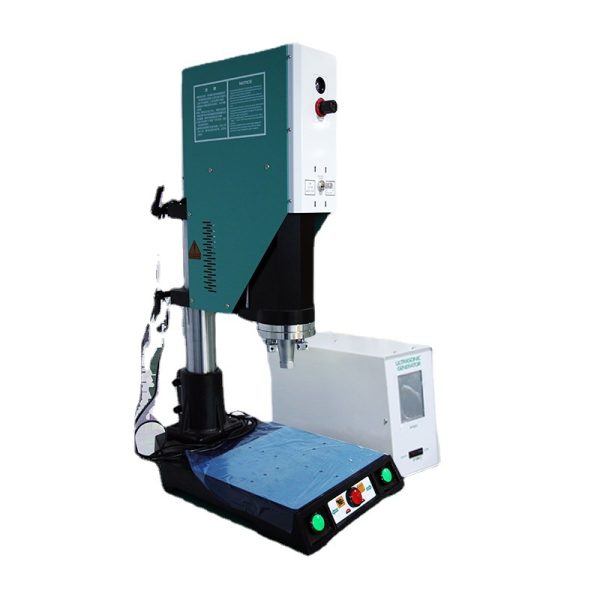

GA-SYX Ultrasonic Plastic Welding Machine
- 描述
- 询问
描述
GA-SYX Ultrasonic Plastic Welding Machine
应用
Mainly used in auto parts, 医疗设备, 电子工业, toys, electrical appliances, daily plastic products, ETC… Manufacturing industry.
Suitable welding material
Applicable welding materials: Styrene-acrylic, acetal resin, acrylic, 纤维素, ABS,PVC, polymethylene oxide, nylon, PC PE,聚丙烯, polystyrene PS, Poly, Styrene-acrylic, case ester resin, 聚丙烯, acrylic.

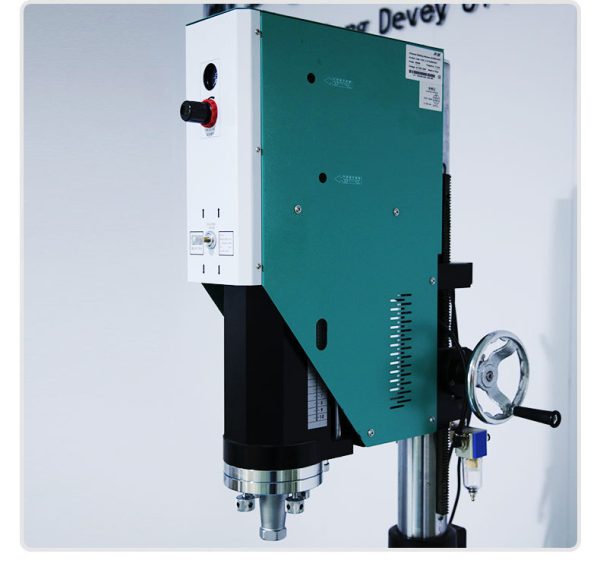

GA-SYX Ultrasonic Plastic Welding Machine
特征
1, technology development and improvement, performance optimization; The new single column free lifting operation is easy and convenient with high strength
2, rectangular column/cylinder optional, guide bearing precision fine tuning; Four-point balance adjustment, easy to adjust the welding head.
3. Easily adjust the fuselage stroke with turbine rotation to solve the adjustment drawbacks of conventional machines.
4 Independent production of piezoelectric ceramic transducer core components, strong and stable output; Aluminum/titanium alloy amplitude converter, durable and practical; The sound is strong and smooth.
5, digital frequency generator (electric box), frequency modulation and frequency automatic compensation circuit; No load, no load have resonance without adjusting the frequency of the welding head.
6, debugging and setting, soft starting circuit to avoid damage to the mold.
7, using digital code precision control switch, digital welding parameter setting, intuitive and accurate; High welding efficiency, low defect rate,
8, CNC machine tool processing, 高精准度, reliable quality.
9, self-set welding mold workshop, aluminum alloy material
GA-SYX Ultrasonic Plastic Welding Machine
范围
20KHZ
| output power | 2000瓦 |
| 频率 | 20KHZ |
| 输入电压 | (single phase)220V |
| Maximum input power | 2.3千瓦 |
| Head stroke | 80毫米 |
| output time | (Retest time)0.01-6s |
| current indication | Output amplitude indication |
| air pressure | Air pressure range 1-7bar |
| 边界尺寸 | Host size :700*400*1300 Chassis dimensions :600 X 440 X 160 |
| 重量 | 128公斤 |
15KHZ
| output power | 2600瓦 |
| 频率 | 15KHZ |
| 输入电压 | (single phase)220V |
| Maximum input power | 80毫米 |
| Head stroke | 50-100毫米 |
| output time | (Retest time)0.01-6s |
| current indication | Output amplitude indication |
| air pressure | 1-7bar |
| Welding area | ø240 |
| 边界尺寸 | Host size :700*400*1300 Chassis dimensions :600 X 440 X 160 |
| 重量 | 168公斤 |
