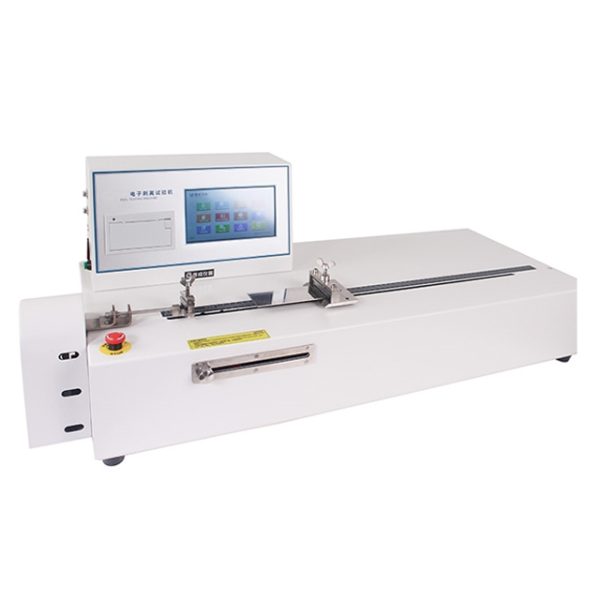

GA-5017 PSTC FINAT 180°剥离粘合力试验机

描述

剥离强度试验机

测试标准

GB/T4850、GB/T7754、GB/T8808、GB/T13022、GB/T7753、GB/T17200、GB/T2790、GB/T2791、GB/T2792、 QB/T2358

PSTC: 101 (A, 乙, C, D, 乙, F), 4, 15, 55

美国材料试验协会: D 3330

TLMI: L-IA1, L-IA2, L-IA3

AFERA: 4001 P11

FINAT: FTM 1-6, 10, 11

剥离强度试验机

介绍

Electronic peeling testing machine is suitable for adhesive, 胶带, 粘合剂, composite film, artificial leather, woven bags, 电影, 纸, electronic carrier and other related products stripping, shear, tensile performance test.Through the peel test of the material, the bond strength of the material is reflected, which is an important test index to control the adhesive products not to open glue, not to fall off. It can effectively help enterprises and institutions to improve the performance of the products.

剥离强度试验机

特点

• 触摸屏控制, man-machine interface fashion.
• Lead screw transmission system, greatly improve the accuracy of transmission displacement, can achieve stepless speed regulation function
• Intelligent operation has the maximum value, average value, real time value three test functions
• Type test parameters, test results can be output group statistical analysis
• Professional measurement and control, software with electronic signature function
• The system comes with overload protection, emergency power off protection, zero failure of human operation
• Equipped with a micro silent printer, USB接口, connected to the computer, can print out the test data
• Can realize N(Newton), KN\ M, LBF pounds, G (gram) multi-unit free choice switch, automatic printing unit data after the end of the test.
• In line with international requirements, compatible with ISO, 他, 美国材料试验协会, DIN and other international related standards

应用

Base application		Extended application (special accessories or customization required)
Tensile strength and deformation rate	Tensile force	Tear resistance	shear performance	Heat sealing performance
180°peel	90°peel	Low speed unwinding force	Peeling force of release paper	Adhesion strength test (soft)
		Adhesion strength test (hard)

规格

capacity	0～200 N（can choose 30N、50氮、100N）
准确性	0.5 Level
解决	0.01 氮
测试速度	1- 500 mm/min
Sample width	≤30 mm
中风	650 毫米
力量	AC220V 50Hz
外形尺寸	880毫米(L)× 320mm(乙)× 400mm(H)
重量	25 公斤



产品配置

标准配置: main machine, 微打印机, test board, standard press roller

Optional parts: 专业软件, 通信电缆, 传感器, sampling knife, 90° stripping fixture, low-speed unwinding device, non-standard fixture
