BGD 745 多功能高速分散机

描述

BGD 745 多功能高速分散机

BGD 745 多功能高速分散机 is developed newly after collecting many customers suggestions, and also got many patents. Compared with traditional products, it adds many practical functions and let laboratory dispersing work become more scientific, high efficiency and easy.

BGD 745Multifunction High Speed Dispersing Machine

主要特点

◆ New brushless DC motor：Has wider adjustable working speed, ultra-low noise when working（avoid electromagnetic noise from tradition AC motor）.Moreover, DC motor has a feedback system to working speeding and can monitor speed more precisely.

◆ Touch screen design：Setting working parameters become more simple and easy. All state parameters are shown directly and clearly, 易于操作.

◆ Show directly linear velocity of current dispersing blade, save time to calculate linear velocity by dispersing blade size and working speed for operator.

◆ New auto location clamping device for container：Rotate locking handle to fasten container at the central position automatically, 安全的, 简便.

◆ High quality one body mixer shaft：Made up of high quality 304SS, anti-corrosion and easy to clean.

◆ Monitor sample temperature：With infrared temperature probe, can real-time monitor dispersed sample without touching sample. Operator also can set a certain temperature by touch screen for preventing sample changing because of over heat generating from milling.

◆ Timing device for dispersing：Operator can set dispersing time, the machine would be stopped automatically when arrive this time

◆ Can choose arc bottom container with double-layer and sand-mill blades for bead mill.

BGD 745Multifunction High Speed Dispersing Machine

技术参数

■ 电机功率：1000W（Brushless DC motor）
■ Adjustable Working Speed：200～6,000r/min
■ 提升距离：260毫米
■ Overall Dimension：450mm×450mm×700mm（motor is the lowest position）
■ 净重：40公斤
■ Come with dispersing blades：Φ50mm and Φ80mm, 各一.
■ 订购信息：BGD 745—多功能高速分散机

BGD 745Multifunction High Speed Dispersing Machine

可选参数

（看 分散或研磨配件 适用于不同尺寸的分散叶片，分散容器及其他配件）

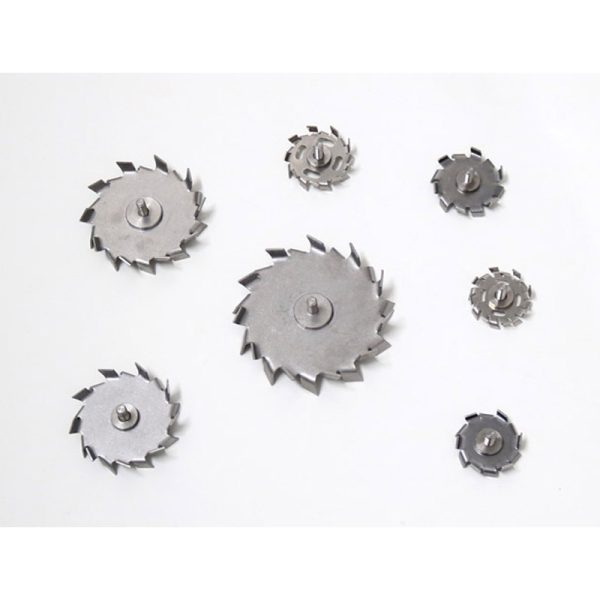

Efficient Dispersing Blade

重型分散刀片

砂磨刀片

分散容器

操作菜单

Measure Sample Temperature with infrare
