描述

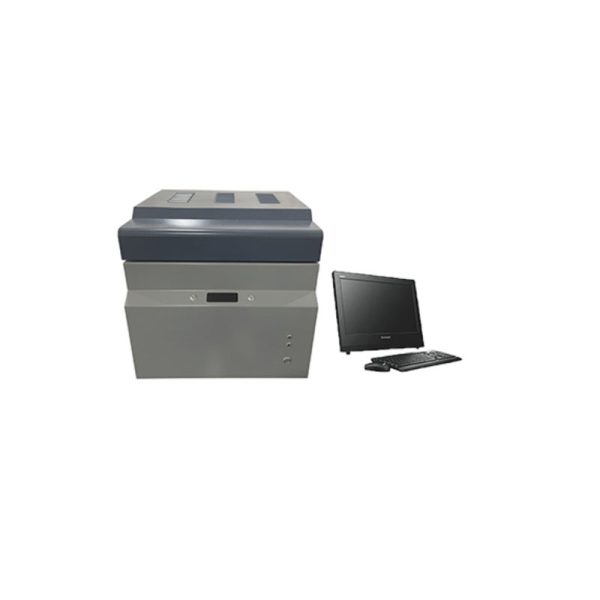

Automatic industrial analyzer Coal moisture volatile test Coke ash volatile test machine tester Cement burn loss analyzer

1.应用领域

Coal, 电力, 化学工业, geological survey, 环境保护, quarantine inspection, scientific research and colleges and other related industries and departments of coal, coke and other substances of moisture, ash, volatile test, and calculate their fixed carbon, hydrogen content and calorific value; The carbon content of fly ash and ash slag can be analyzed. The burning loss of cement can be analyzed.

Automatic industrial analyzer Coal moisture volatile test Coke ash volatile test machine tester Cement burn loss analyzer
2.技术功能

Automatic control

1, furnace insulation material: the use of circular high temperature furnace, furnace temperature distribution is more uniform and stable, to solve the pipeline work mode frequently open the door caused by the furnace temperature uneven, unstable technical problems.

2, interface mode: using CAN bus technology, using shielding and protection circuit device lightning protection, anti-magnetic interference, anti-stimulation interference.

3, temperature control mode: PID algorithm, anti-overshoot heating, guarantee, 温度控制, heating speed is fast.

4, air supply component: using low dry sound piston air pump. (Optional nitrogen and oxygen)

5, control mode: PC control. Control the operation of the host computer is not caused by the computer alone uncontrollable. Fault alarm self protection. The displacement of the functional components is positioned by the micro – space technology.

6. Analysis and test system: it can connect most of the coal quality analysis equipment of the company. Can automatically upload data, generate reports. (Users can design reports according to their own needs).

7. The door is automatically switched on and off by pneumatic slow way to avoid the damage of sudden cooling and sudden heating to the furnace body.

Reliable data

1, there are a variety of test methods for users to set arbitrarily, there are national standard arbitration method, fast method, can also be set by the user.

2, each ash test can use slow ash, all in line with the national standard requirements in no less than 30 minutes of furnace temperature to 500ºC requirements, to ensure the accuracy of ash test.

3, the data can be integrated into the coal quality management system and generate reports.

5.技术参数

1, sample weight: 0.8-1.2G, particle size: ≤0.2mm

2, furnace temperature range: room temperature ~1000ºC; Temperature control accuracy: ±1ºC, temperature control point: moisture 105 ~ 110ºC, ash 815±10ºC, volatile: 900±10ºC

3, 测试时间: < 150Min/20 samples (moisture, ash, volatile and calculated fixed carbon)

4, voltage: 220±22VAC 50±1HZ, 力量: < 5KW

5, 准确性: in line with and better than the standard

6, size mm: 555*580*525
