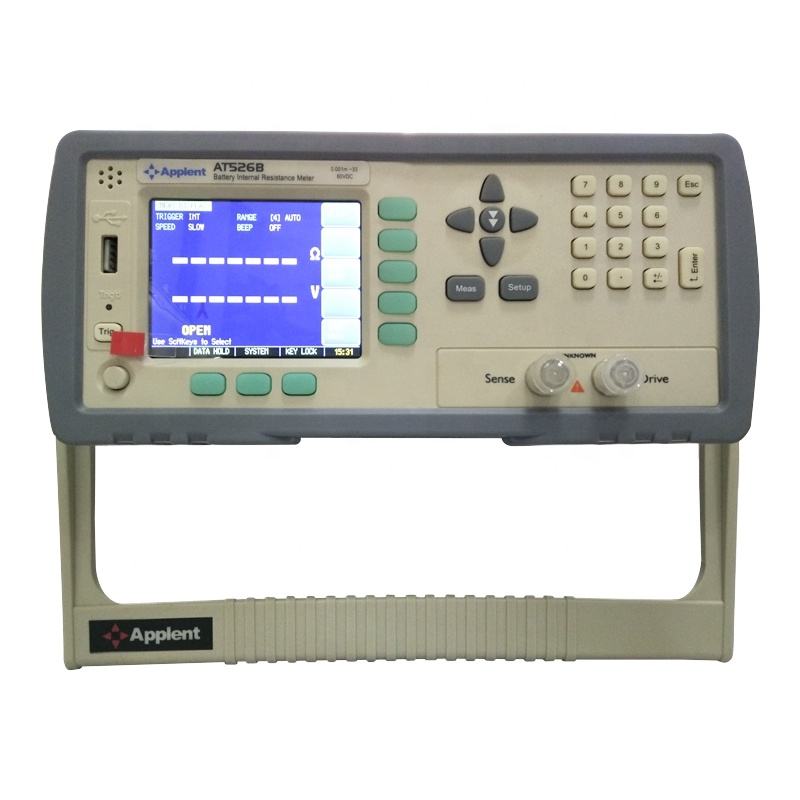

Battery Internal Resistance Meter
AT526/AT526B is brand-new design battery internal resistance meter with high precision and high stability, which adopts high-performance 32dgt ARM micro processor to control. 3.5 inches true-color LCD Chinese and English display and it is easy to operate. It is upgrade of AT520. It is high performance and intelligent instruments which is widely applied to test contact resistance, battery voltage and battery internal resistance. Resistance testing uses vector test philosophy and voltage testing adopts difference test philosophy so as to accurately test open-circuit voltage and internal resistance. Can avoid the error resulted in pyroelectricity. The sorting and beep settings apply to automation production line test. The USB interface is used to remote control and data acquisition and analysis and suitable for the volume production of batteries.
Battery Internal Resistance Meter
|
规格 |
||
| AT526 Battery Internal Resistance Meter | AT526B Battery Internal Resistance Meter | |
| 参数 |
AC resistance, 直流电压 |
|
| 基本精度 | 反抗: 0.5%
电压: 0.05% |
反抗: 0.5%
电压: 0.05% |
| 范围 | 反抗: 0.001米瓦 – 33.000千瓦;
电压: 0.00001V – 120.0000V DC |
反抗: 0.001毫瓦 – 33.00瓦.
电压: 0.0001V-60.000VDC |
| 信号源 | AC 1KHz, 开路电压 < 20MV, measurement current: < 150嘛 | |
| 范围 | Automatic and manual with 6 ranges | Automatic and manual with 4 ranges |
| 速度 | 30 t/s, 10 t/s, 1 t/s | 30 t/s, 10 t/s, 1 t/s |
| Result Display | 展示, DABS, D%, q, sorting results | |
| Display Max | 反抗: 33,000, 电压: 1,200,000 | 反抗: 33,00, 电压: 60,00 |
| Adjustment | 所有范围的短路重置 | |
| 比较器 | RHI/RNG/RLO output, VHI/VNG/VLO output, absolute tolerance ±TOL sorting, percentage tolerance ±TOL sorting, order comparison sorting | |
| 扳机 | 内部的, 手动的, external, remote | 内部的, 手动的, remote |

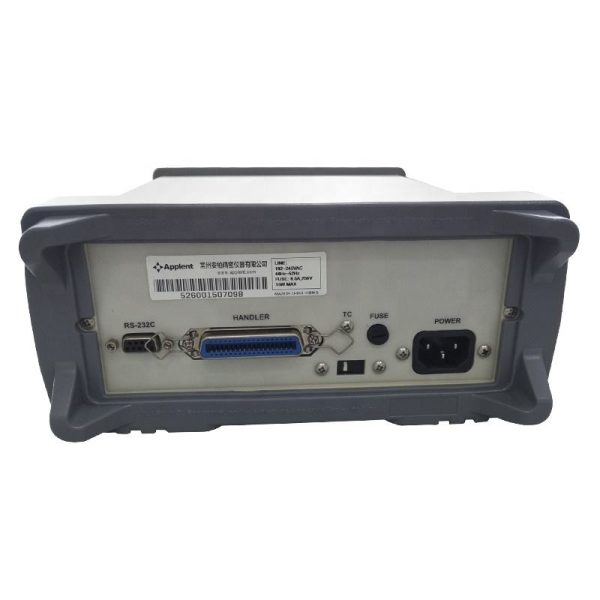

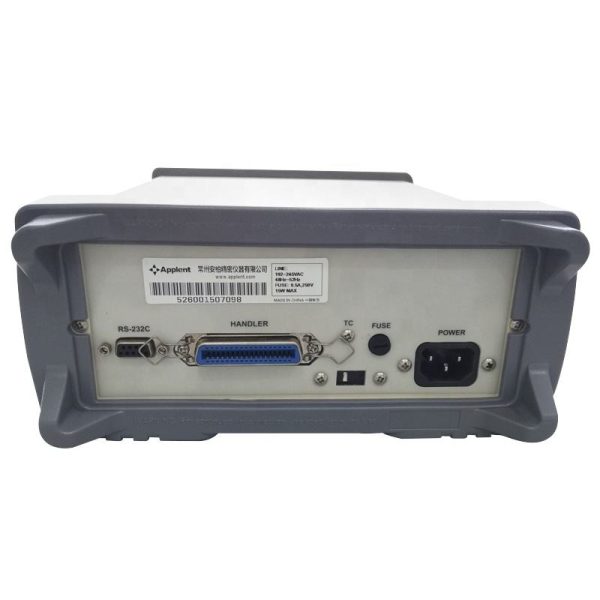

| 界面 | RS232C, 处理程序接口 (PLC接口) | RS232C接口 |
| 其他的 | Detection of damage test wire, true-color TFT-LCD display,
keypad lock and data hold function, internal memory and U-disk record |
|
| 一般特点 | ||
| 电源 | 电压: 85交流电压 – 240交流电压. 频率: 50赫兹. 力量: Max 15VA | |
| 尺寸 | 264毫米 (宽度)x107mm (高度)x350mm (深度), 4公斤 | |
| 订购信息 | ||
| 配件 | ATL502 Kelvin test leads, ATL108 RS232 communication cable, 交流电源线 | |
| 选修的 | ATL502A: test probe, ATL609 test fixture | |
