描述
温度计
简单的介绍

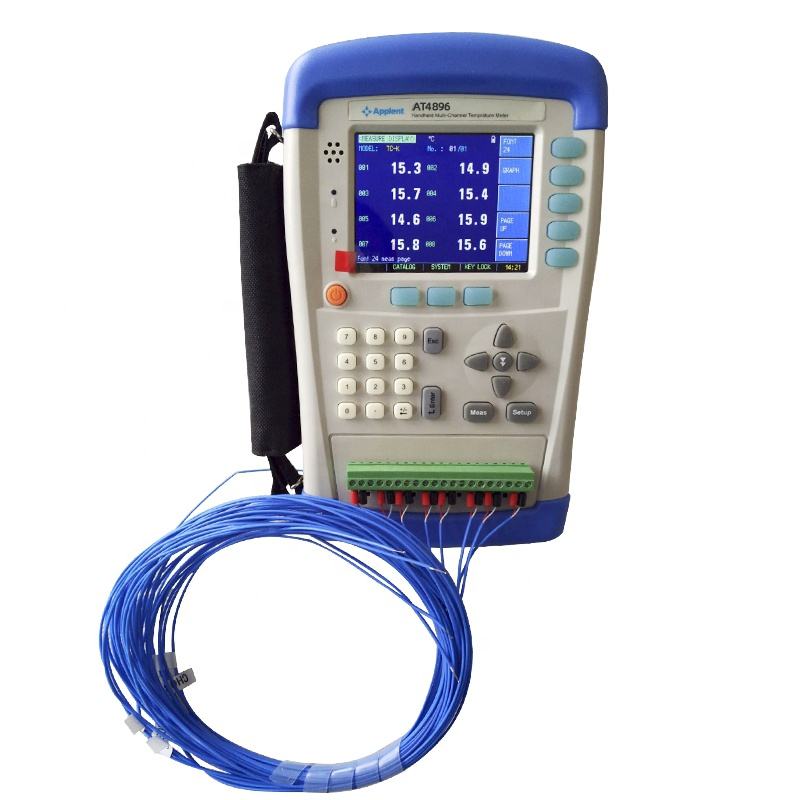

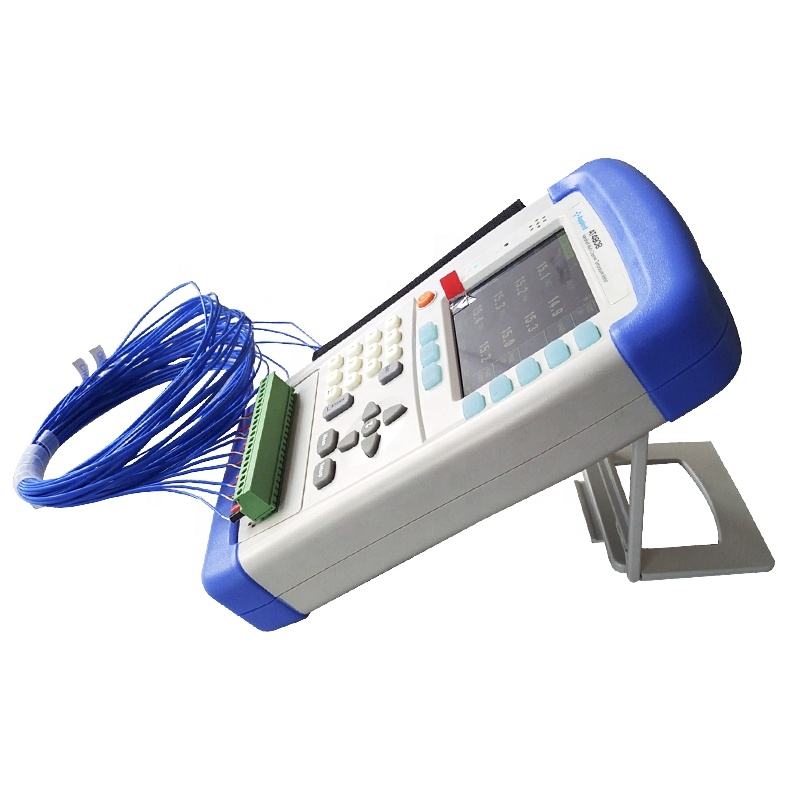

AT48xx series handheld multi-channel temperature meter adopts high-performance ARM micro processor, 可同时采集多路温度数据并快速响应. AT48xx系列具有热电偶断线检测功能, 高/低蜂鸣功能及通讯传输. 128 温度数据通道可扩展, 兼容各种温度传感器. Equipped with Mini-USB (virtual series port) interface to realize data acquisition, analysis and print through the standard computer software. Support USB disk storage, real-time sampling data storage. The users can adjust data for each channel independently.
温度计
| 规格 | |||
|
AT4808 |
AT4816 |
AT4824 |
|
| 毕业 |
热电偶:J/K/T/E/S/N/B/R |
||
| 基本精度 | 0.2℃± 2 数字(不包括热电偶精度) | ||
| 范围 | -200℃~1300℃(varying depend on graduation) | ||
| 解决 | 0.1℃ | ||
| 渠道 | 8-channel
Can be expanded to 128 渠道 |
16-channel
Can be expanded to 128 渠道 |
24-channel
Can be expanded to 128 渠道 |
| 速度 |
Medium: 500MS/频道, 慢的: 1s/channel |
||
| 更正 |
每个通道的纠错 |
||
| 比较器 |
高的 & low beep. 高的 & low value setting individually for each channel |
||
| 界面 | U盘接口, Mini-USB (virtual serial port) | ||
| 软件 | ATS48xx data acquisition software | ||
| CJC | 准确性:0.5℃ | ||
| 其他的 | TFT-LCD True-color LCD display,broken thermocouple checking function | ||
| 一般特点 | |||
| 电源
(ATL909) |
输入: 100-240电压~50/60Hz 0.35A 输出: 9V 2A DC |
||
| 电池 参数 |
8.4V, 李, 2200毫安充电电池 |
||
| 充电时间 |
单次连续充电时间: Max 300Mins |
||
| 工作时间 |
≥8 hours |
||
| 尺寸 |
外部 (毫米): 130.23 (宽度)x210.76(高度)x37.88 (深度), 650G |
||
| 订购信息 | |||
| 配件 | K热电偶 8/16/24 团队(2米/团队)
ATL909: 直流电源适配器 ATL202 Carrying Case ATL804: Lithium battery ATL105 Mini-USB communication cable ATS48xx data acquisition software |
||
