WSD-10kW Series Programmable DC Linear Power Supply

WSD-6000W Programmable DC Power Source
TH6202 Programmable Linear DC Power Supply

Loại:

Sự miêu tả

Programmable DC Power Supply

Ghi chú: This product series’s input supply voltage is 220V, currently it does not support 110V input voltage, if end user’s country use 110V input voltage, need to buy the 110-220V converter or regulator, buyers can buy the converter from us or buy a regulator locally.

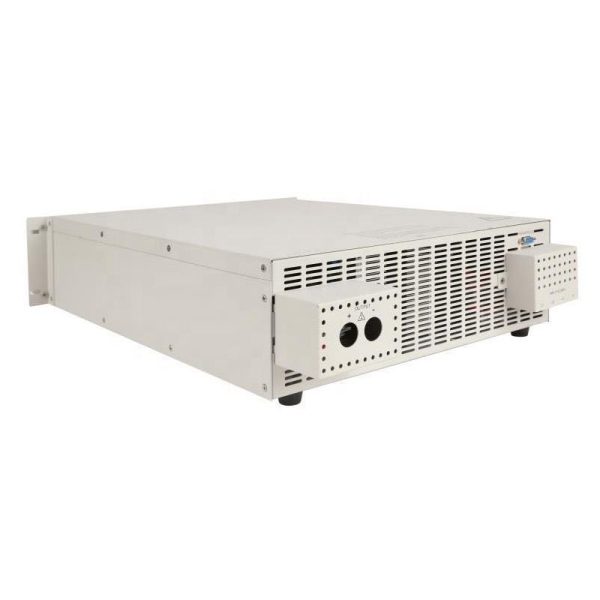

WSD-10kW Series Programmable DC Power Source High-precision Power Supply



Programmable DC Power Supply

OVERVIEW

Low ripple and low noise, Vrms<5mV,Vpp<100mV
Resolution of 1mV and 1mA, more accurate power output
Excellent dynamic response time<10bệnh đa xơ cứng
High speed DSP performs PID operation to achieve high display precision and high programming precision
Startup without impact and set voltage increase slope
Real-time power display, single working hours and cumulative working hours



WSD series high precision programmable DC power supply is a high-performance DC power supply controlled by a microprocessor. This series of products have high accuracy, high accuracy, high stability and other excellent electronic characteristics. It is the best choice for research units and laboratories as adjustable DC power supply or production line as product life test power supply. This series of products are designed with perfect overvoltage and overtemperature protection lines, and the reliability of the products is higher.

Programmable DC Power Supply
Thông số kỹ thuật
Dữ liệu kỹ thuật Series WSD-1000W series WSD-3000W
AC:Supply
-Vôn 1Φ220VAC士10% 1Φ220VAC士10%
-Tính thường xuyên 50-60HZ 50-60HZ
-Power Factor >0.92 >0.92
DC:voltage
-Sự chính xác < 0.1% of rated value < 0.1% of rated value
-Load regulation 1-100% < 0.05% of rated value < 0.05% of rated value
-Line regulation 土10ΔU < 0.05% of rated value < 0.05% of rated value
-regulation 10-100% <2bệnh đa xơ cứng <2bệnh đa xơ cứng
-Risetime 10-90% <20ms-10s <20ms-10s
-overvoltage
DC:Hiện hành
-Sự chính xác < 0.2% of rated value < 0.2% of rated value
-Load regulation 1-100% < 0.15% of rated value < 0.15% of rated value
-Line regulation 土10% U < 0.05% of rated value < 0.05% of rated value
DC:quyền lực
-Sự chính xác < 0.5% of rated value < 0.5% of rated value
Protection OVP,OCP,OPP,OTP OVP,OCP,OPP,OTP
Insulat ion
-AC input to enclosure 1500VDC 1500VDC
-AC input to DC output 1500VDC 1500VDC
-DC output to enclosure (Thể dục) 500VDC 500VDC
Digital interfaces RS232 or RS485 RS232 or RS485
Cooling Cool Cool
Operation temperature -5°C-45°C -5°C-45°C
Storage temperature -20°C-60°C -20°C-60°C
Độ ẩm <80%，Non-condensing <80%，Non-condensing
Kích thước(W*H*D) 425*132*551.5mm 425*132*551.5mm
Cân nặng 6KILÔGAM 12KILÔGAM
Dữ liệu kỹ thuật Series WSD-6000W series WSD-10000W
AC:Supply
-Vôn 3Φ380VAC士10% 3Φ380VAC士10%
-Tính thường xuyên 50-60HZ 50-60HZ
-Power Factor >0.92 >0.92
DC:voltage
-Sự chính xác < 0.1% of rated value < 0.1% of rated value
-Load regulation 1-100% < 0.05% of rated value < 0.05% of rated value
-Line regulation 土10ΔU < 0.05% of rated value < 0.05% of rated value
-regulation 10-100% <2bệnh đa xơ cứng <2bệnh đa xơ cứng
-Risetime 10-90% <20ms-10s <20ms-10s
-overvoltage
DC:Hiện hành
-Sự chính xác < 0.2% of rated value < 0.2% of rated value
-Load regulation 1-100% < 0.15% of rated value < 0.15% of rated value
-Line regulation 土10% U < 0.05% of rated value < 0.05% of rated value
DC:quyền lực
-Sự chính xác < 0.5% of rated value < 0.5% of rated value
Protection OVP,OCP,OPP,OTP OVP,OCP,OPP,OTP
Insulat ion
-AC input to enclosure 1500VDC 1500VDC
-AC input to DC output 1500VDC 1500VDC
-DC output to enclosure (Thể dục) 500VDC 500VDC
Digital interfaces RS232 or RS485 RS232 or RS485
Cooling Cool Cool
Operation temperature -5°C-45°C -5°C-45°C
Storage temperature -20°C-60°C -20°C-60°C
Độ ẩm <80%，Non-condensing <80%，Non-condensing
Kích thước(W*H*D) 425*132*551.5mm 425*132*551.5mm
Cân nặng 20KILÔGAM 24KILÔGAM
