Tonghui TH2883S4-5 Impulse Winding Tester
- Sự miêu tả
- Cuộc điều tra
Sự miêu tả
Impulse Winding Tester
Đặc trưng
The first provider of impulse winding tester from low voltage of 30V to high voltage of 10kV, single channel to multichannel in this industry (Tối đa.:8 kênh truyền hình)
First winding tester compatible with LXI standard Impulse voltage of 100V~5000V
Two models of 4-channel and 8-channel4 for selection
Each channel can be programmed and controlled as high- terminal, low-terminal and OFF
20 test procedures can be added at most 65k color 7” TFT wide display screen
Up to 200Msps waveform sampling rate
Maximum measuring speed: 6mét/giây
Storage depth of 6k Bytes
High bandwidth analog acquisition circuit
High-fidelity corona extraction algorithm (patent technology)
Four waveform comparison methods
Automatic storage of instrument parameters
Measurements on voltage, time and frequency
Amplification, stretch and movement of the waveform for accurate display
Multi-sample average, average processing of 32 standard waveforms
Destructive testing for your correct choose of voltage
Use demagnetized impulse to ensure the conformity of tested waveforms
Login of different user right for easy management
20 groups of instrument files can be stored and automatically loaded
Screen information can be stored in USB disk (COPY key)
System firmware can be automatically upgraded through
USB-disk
Selectable Chinese and English operation interfaces
Four selectable display interface effects

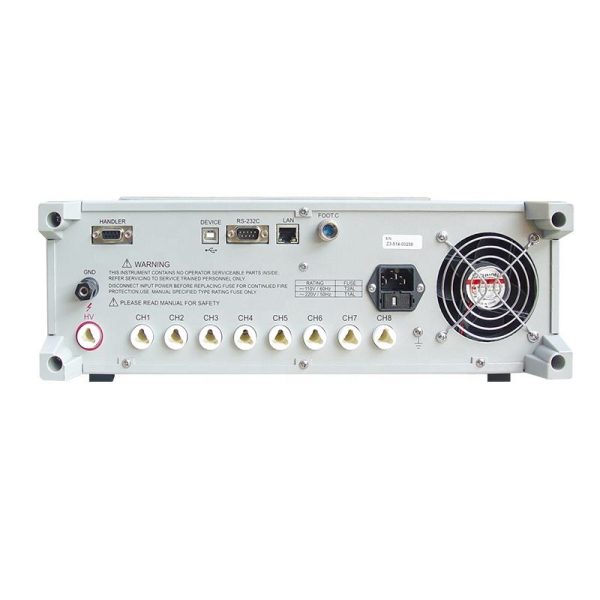

Foot control interface for easy measurements
Handler interface to realize on-line operation
RS232C, USB Device and LAN interface to realize remote control
20 test procedures can be added at most 65k color 7” TFT wide display screen
Up to 200Msps waveform sampling rate
Maximum measuring speed: 6mét/giây
Storage depth of 6k Bytes
High bandwidth analog acquisition circuit
High-fidelity corona extraction algorithm (patent technology)
Four waveform comparison methods
Automatic storage of instrument parameters
Measurements on voltage, time and frequency
Amplification, stretch and movement of the waveform for accurate display
Multi-sample average, average processing of 32 standard waveforms
Destructive testing for your correct choose of voltage
Use demagnetized impulse to ensure the conformity of tested waveforms
Login of different user right for easy management
20 groups of instrument files can be stored and automatically loaded
Screen information can be stored in USB disk (COPY key)
System firmware can be automatically upgraded through
USB-disk
Selectable Chinese and English operation interfaces
Four selectable display interface effects
Foot control interface for easy measurements
Handler interface to realize on-line operation
RS232C, USB Device and LAN interface to realize remote control
Impulse Winding Tester
Thông số kỹ thuật
| Người mẫu | TH2883S8-5 | TH2883S4-5 | |
| Impulse Voltage | 100V-5000V10V steps | ||
| Voltage Accuracy | ±(5% set value +15V) | ||
| Readback Accuracy | ±(5% actual value +15V) | ||
| Kênh | 8 | 4 | |
| Inductance Test Range | ≥10uH | ||
| Impulse Energy | Tối đa.: 0.25 Joule | ||
| Bài kiểm tra tốc độ | 6 lần/giây (single channel, single step) | ||
| Pulses Applied | Tối đa.: 32 | ||
| Trở kháng đầu vào | 5MΩ | ||
| Trưng bày | 800×480 dấu chấm, 65k color TFT; Waveform Display Range: 600×256 | ||
| Waveform Acquisition | Sampling rate: Tối đa. 200Msps, 8 levels adjustableResolution: 8 BitsMemory Depth: 6k BytesAverage: 1 ĐẾN 32 | ||
| Comparison Methods | Comparison with Standard Waveform:
|
||
| Waveform Measurement | Voltage/Frequency/Time | ||
| Trigger Mode | Manual/External/Bus/Internal | ||
| Detection Output | Pass/Fail display/LED/ Alarm | ||
| Measurement Statistics | Statistics for measurement results | ||
| Ký ức | 20 groups of standard waveform data and instrument setup can be stored in internal non-volatile memory.USB flash memory can be used as external memory. | ||
| Giao diện | Người xử lý, RS232C, USB Device, USB Host, mạng LAN | ||
| Nguồn cấp | |||
| Nguồn cấp | 220V ±10% 50Hz/60Hz ±5% | ||
| Power Consumption | ≤200VA | ||
| General Conditions | |||
| Working Environment | Nhiệt độ | 0oC – 40oC | |
| Độ ẩm | ≤75% R.H. | ||
| Safety and Electromagnetic Compatibility | IEC61010-1:2001,IEC61326-2-1:2005 | ||
