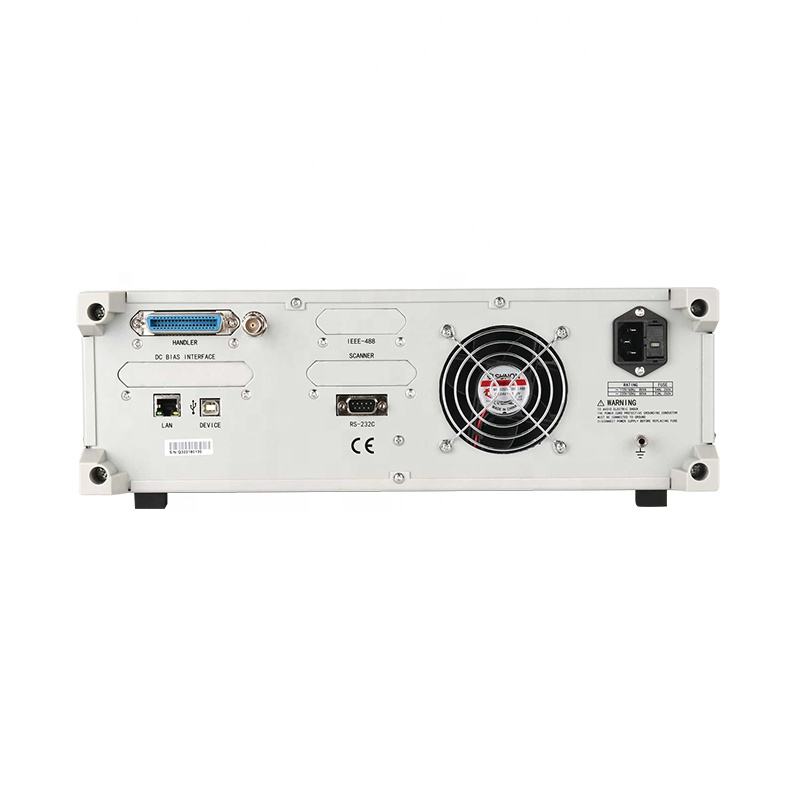

Tonghui TH2829A Digital LCR Tester TH2829C
- Sự miêu tả
- Cuộc điều tra
Sự miêu tả
LCR Tester
Tom lược
By dint of leading impedance measurement technology and rich R&D experience, Tonghui continuously introduces representative impedance measurement product — TH2829 series automatic component analyzer is another excellent product we have produced. TH2829 series automatic component analyzer possesses a higher test speed, a more comprehensive analysis function and friendly human-computer interactive experience by adopting the latest high-speed processor and a new software system. Well-designed measuring circuit and optimized algorithms further enhance the test stability of low-D capacitance and high-Q inductors. The instrument is provided with 10V AC test level, 10V/100mA bias current and standalone 10V/50mA DC current, making it convenient for applying in the test of all kinds of active/ passive devices. Main/ sub parameters display, enhanced display system design, 150-points list sweep and graphical analysis capabilities of multiple parameters meet the most application requirements of customers. Thanks to the application of a new generation of processors, the instrument has a more powerful data processing capability. The test results can be easily stored in the U disk or uploaded to the upper PC or network through multiple interfaces, promoting test automation and test efficiency. The test frequency of TH2829 series are 20Hz-300kHz, 20Hz- 500kHz and 20Hz-1MHz. The instrument has a test accuracy of 0.05% and highest test speed of 9ms/time. Being equipped with multiple interfaces of HANDLER, USB, mạng LAN, RS232C, DCI, GPIB (lựa chọn) as well as rich resources, the instrument will bring excellent cost performance experience for customers. TH2829 series automatic component analyzer is completely appropriate for test requirements of all kinds of industrial and military standards.
LCR Tester
Thông số kỹ thuật
| Người mẫu | TH2829A | |||
| Frequency of test signal | 20Hz—1MHz | |||
| Độ phân giải tối thiểu | 1mHz, 5-digit frequency input | |||
| Sự chính xác | 0.01% | |||
| Trưng bày | 800×RGB×480 7-inch TFT LCD display | |||
| ACLevel | Voltage range of test signal | 5mV—10Vrms | ||
| Minimumresolution of voltage | 100μV, 3-digit input | |||
| Sự chính xác | ALC ON | 10% x set voltage + 2mV | ||
| ALCOFF | 6% x set voltage + 2mV | |||
| Current range of test signal | 50μA—100mA | |||
| Minimumresolution of current | 1μA, 3-digit input | |||
| Sự chính xác | ALC ON | 10% x set current + 20μA | ||
| ALCOFF | 6% x set voltage + 20μA | |||
| DCbias voltage source | Voltage/Current range | 0V— ±10V / 0mA—±100mA | ||
| Nghị quyết | 0.5mV / 5μA | |||
| Voltage accuracy | 1% x set voltage + 5mV | |||
| ISO ON | Be used for the bias test of inductance and transformer | |||
| AC Source impedance | ISO ON | 100Ồ | ||
| ISOOFF | 30Ồ,50Ồ,100Ωselectable | |||
| DCR Source impedance | 30Ồ,50Ồ,100Ωselectable | |||
| DCIndependent voltage source | Voltage/current range | 0V— ±10V / 0mA—±50mA | ||
| Nghị quyết | 0.5mV / 5μA | |||
| Voltage accuracy | 1% x set voltage + 5mV | |||
| Output resistance | 100Ồ | |||
| Test parameters of LCR | |Z|,Y|, C, L, X, B, R, G, D, Q, Tôi, DCR,Vdc-Idc | |||
| Parameter display of test page | Two sets of main/sub parameters, the second set can be set as ON/OFF;There can be 10 pages of list sweep and 15 points per page at most;Multiple parameters continuous sweep graphical analysis. | |||
| Độ chính xác cơ bản | LCR test parameter | 0.05% | ||
| Sự định cỡ | Warm-up time ≥ 30 giây;Environment temperature: 23±5ºC; Signal voltage: 0.3Vrms-1VrmsZeroing: After OPEN or SHORT; Length of test cable: 0 tôi | |||
| Thời gian đo(≥10 kHz) | Nhanh: 9 bệnh đa xơ cứng / timeMedium: 67 bệnh đa xơ cứng / timeSlow:187 bệnh đa xơ cứng / time Plus the refresh time of display character | |||
| Display range ofLCR parameter | Z, R ,X,DCR | 0.00001Ω — 99.9999MΩ | ||
| |Y|,G,B | 0.00001μs — 99.9999s | |||
| C | 0.00001pF — 9.99999F | |||
| L | 0.00001μH — 99.9999kH | |||
| D | 0.00001 — 9.99999 | |||
| Q | 0.00001 — 99999.9 | |||
| Tôi(DEG) | -179.999º — 179.999º | |||
| Tôi(RAD) | -3.14159 — 3.14159 | |||
| Δ% | -999.999% — 999.999% | |||
| Equivalent circuit | Serial, Parallel | |||
| Range mode | Auto, Giữ | |||
| Trigger mode | Nội bộ, Thủ công, Bên ngoài, Bus | |||
| Average times | 1-256 | |||
| Calibration function | Open, short calibration with full frequency or dot frequency, Trọng tải | |||
| Math operation | Direct reading, ΔABS, Δ% | |||
| Delay time setup | 0-999, minimum resolution: 100us | |||
| Bộ so sánh | 10-bin sorting, BIN1-BIN9, của, AUX | |||
| Bin counter | ||||
| PASS/FAIL on front panel, LED indication | ||||
| List sweep | ·201 -point list sweep function ·List sweep of frequency, AC voltage/ current, internal/external DC bias voltage/current and independent DC source voltage can be performed on each page. Each sweep point can be sorted separately. | |||
| Graphical analysis | ·Graph scanning and analysis of frequency, AC level and DC bias can be performed.·Set the sweep start point, end point and each sweep point.·Display the maximum value, minimum value and read any of the chosen sweep point·Scanning graphs can be stored into internal or external USB memory. | |||
| Internal nonvolatilememory | 100 sets of LCRZ setting files memory201 times test results10 sets of GIF image, CSV data files | |||
| External USB memory | ·GIF image, CSV data files·LCRZ setting files memory ·Test data can be stored via USB | |||
