Máy kiểm tra tải điện tử

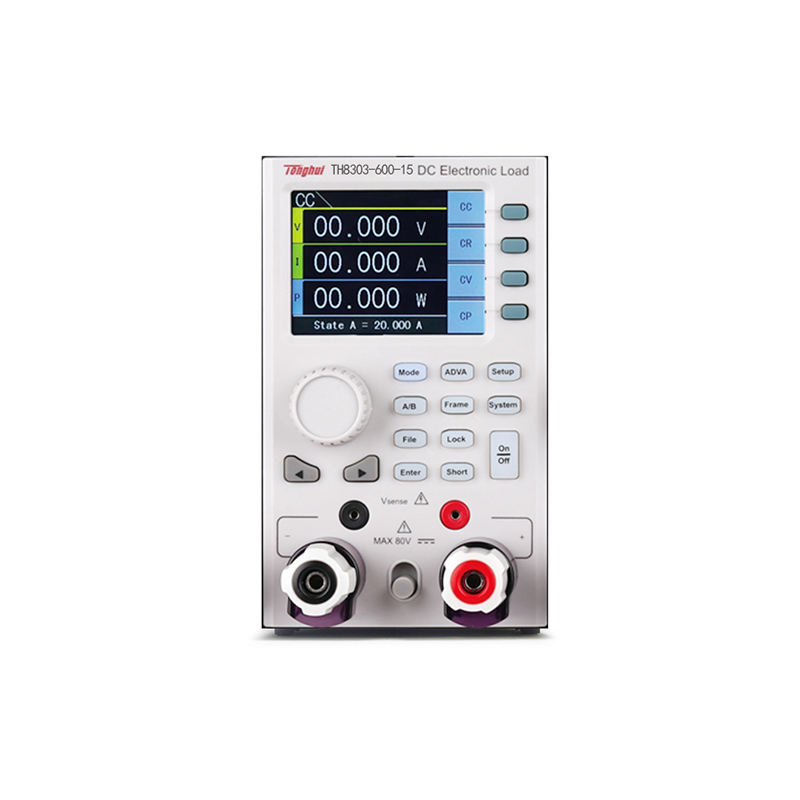

TH8300 Series Programmable DC Electronic Load Tester

Loại: Máy kiểm tra điện trở/tín hiệu

Sự miêu tả
Cuộc điều tra

Sự miêu tả

Máy kiểm tra tải điện tử

Đặc trưng

High resolution: 0.1mV/10μA

Up to 50kHz dynamic frequency

Up to 500kHz sampling speed

12 advanced test functions

Modular design, support each module to operate independently

One single machine can support up to five modules in parallel and support up to ten channels

The maximum power of the whole machine is 2000W, and the online maximum current is 400A

The maximum power of the module is 400W, the maximum current is 80A and the maximum voltage is 600V

Connect via CAN interface, support up to four complete machines online

24-bit color 2.8-inch color LCD display

Chinese and English operation interface

Smart fan system

Support power-on hold function

Support timing function

Electrical isolation, external input and output

Support over current protection (OCP), over voltage protection(OVP), bảo vệ điện (OPP), over temperature protection(OTP), reverse polarity protection (REV), low voltage protection (LVP)
