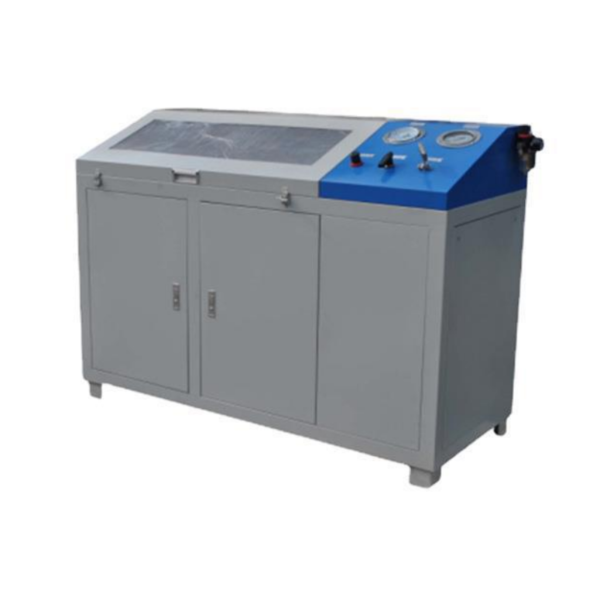

Manual Burst Tester GA-Y114

Người mẫu:GA-Y114

Sự miêu tả
Cuộc điều tra

Sự miêu tả

TÔI. Ứng dụng:

The manual burst tester differs from the automatic burst pressure tester in that it utilizes a booster pump to automatically test burst pressure, with stepless pressure adjustment. The test pressure can be manually controlled, and an optional automatic recording instrument can be used to record the burst pressure value.

II. Equipment Features

1. Equipped with a booster pump, the output pressure can be easily adjusted and controlled.
2. Advanced technology and rational structural design. It features a compact size, trọng lượng nhẹ, and elegant appearance. It is equipped with an automatic burst chamber.
3. All pressure-bearing parts are standard components from internationally renowned brands, without any welded connections, ensuring easy disassembly, high safety, sống thọ, and simplified maintenance.

III. Các thông số kỹ thuật

1. Driving air pressure range: 0.1-0.69 MPa; the output pressure is directly proportional to the driving air pressure.
2. Air consumption: 1m³/phút
3. Pressure test range: 0-500 MPa. Select the appropriate pressure based on your needs.

tên sản phẩm	Manual Burst Tester
dòng sản phẩm	GA-Y114
Basic Principle	The pressure can be adjusted manually according to the measured pressure of different parts, and the burst test can also be performed as a pressure holding test.
Performance Parameters	Test pressure	0-500 MPa (pressure selectable)
	Pressure control accuracy	Phạm vi áp suất thử nghiệm: +2% of upper limit, -1% of lower limit
	Pressure resolution	0.1 MPa (with automatic recording function)
	Pressure sensor	Test pressure sampling frequency: 0.5 giây
	Test medium	Water or hydraulic oil
	Pressure control method	Air pressure drive
	Phương thức vận hành	Manual control
	Number of specimens	One-way control for test pressure and test time (number of channels selectable)
	Specimen mounting method	Threaded
	Structural components	Manual pressure control, booster, and burst pressure recording device
Application range	Pipe fittings, van, containers, vân vân.
