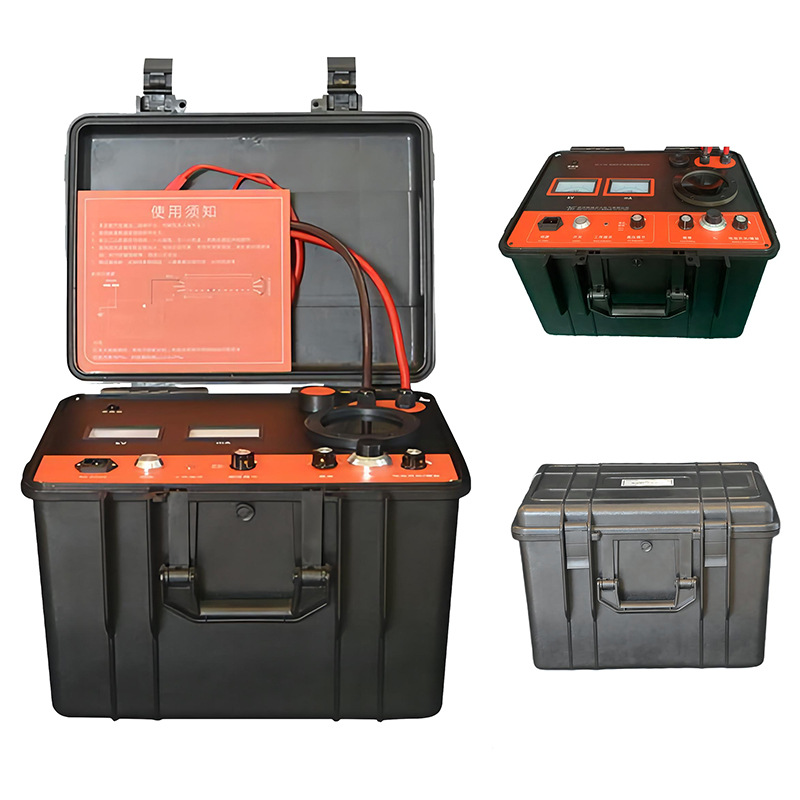

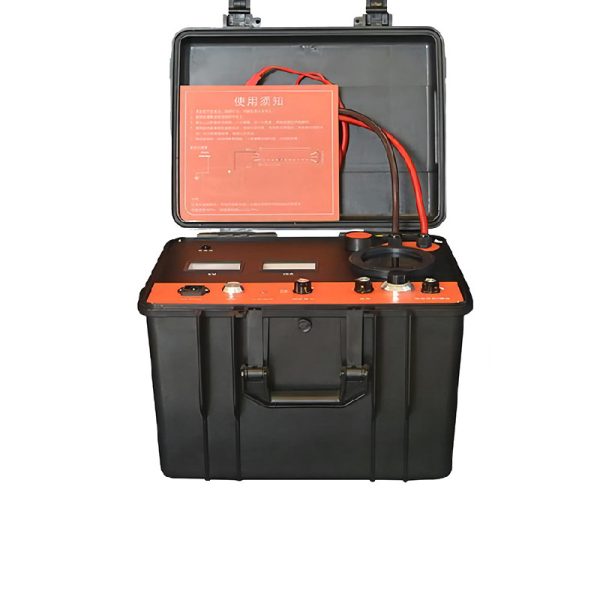

bridge cable fault detector
intro
The product is designed based on the MURRAY bridge principle, which is suitable for the location of the breakdown point of various wire and cable after laying, the defect point without breakdown but low insulation resistance value, and the location of the outer sheath fault of high voltage cable. Of course, it can also be used to locate the defect points of various cables in the cable factory.

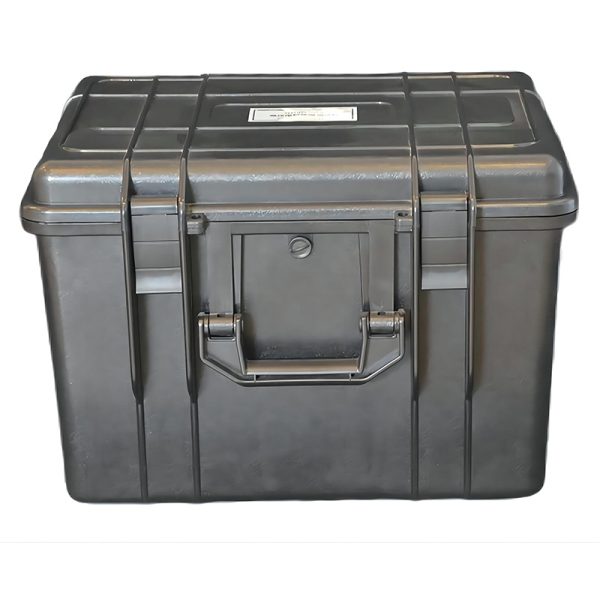

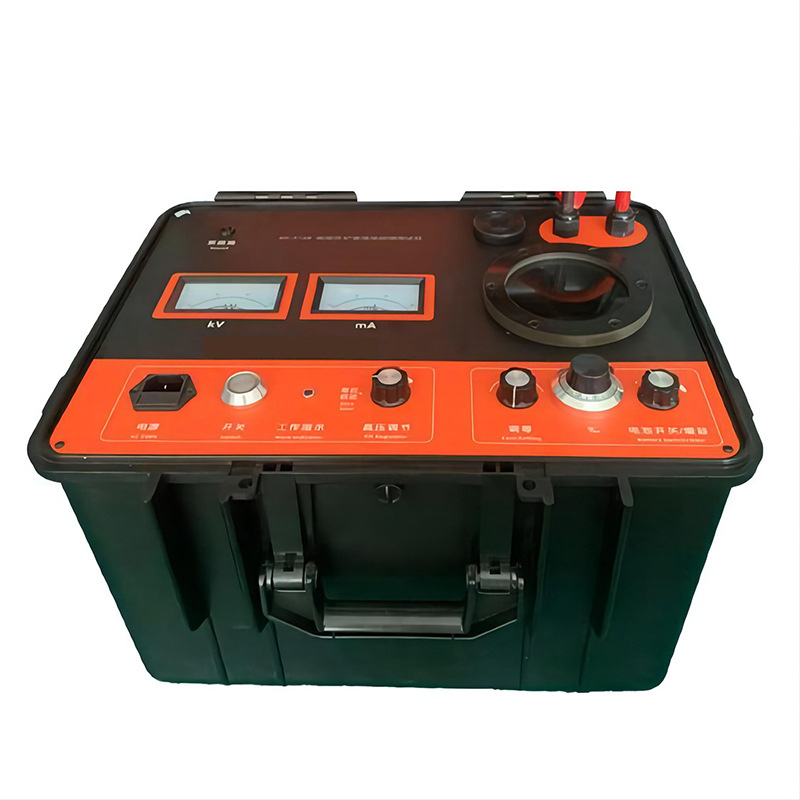

The equipment uses switching power supply to form a high voltage constant current source, uses high sensitivity amplifier and galvanometer to indicate balance, and forms a balance bridge with proportional potentiometer, and the whole is placed at high potential. The test wire is a specially designed double-core high-voltage rubber cable. The four-end resistance measurement method is adopted to avoid the error introduced by the lead resistance. The operating button on the panel is at the ground potential and the bridge is operated through the insulated rod. The high voltage constant current source and bridge are integrated in a portable industrial plastic case. Vì thế, the equipment has high voltage, trọng lượng nhẹ, easy operation and safe use.
Function and application
The product has three functions:
1, DC voltage test: the equipment can output 0 ~ 15kV DC voltage, can be used for cable DC voltage test.
2, burn through the fault point: burn through and reduce the resistance of high resistance and flashover type fault point.
3, fault positioning: The use of bridge principle for positioning, four-end resistance measurement method to avoid the introduction of lead resistance error.
Đồng thời, the product is particularly suitable for:
1. The high resistance penetration point of the cable after laying, especially the linear high resistance penetration point that is difficult to burn into low resistance, such as the linear high resistance penetration of the middle connector of the cable.
2. Flashover breakdown point, constant current source can maintain arc after breakdown, stable current passes through the bridge, and the bridge has sufficient sensitivity.
3, has not yet broken down, but low resistance of the defect point, such as the megohm meter found that the cable resistance value is low, but the running voltage No breakdown of insulation defect points.
Due to the above characteristics, the product is favored by the following categories of users:
1, engaged in professional positioning of the cable repair test team: such as large and medium-sized power supply bureau and large power enterprises of the cable repair test class. Most of the cable breakdown points can be used to quickly find the approximate breakdown location of the product. Combined with the wave reflection method and the fixed point instrument, the advantages of each make the positioning faster and more reliable.
2, small users: such as small power supply bureau and medium-sized power enterprises. The cable is not much, the general direction is clear, not too long, the number of failures is limited, if equipped with a set of wave reflection method locator, the price is high, and the quality and experience of the user are higher. The choice of this product, the price is low, dễ dàng hoạt động, can meet the daily needs, is a better choice.
3, cable production plant: In the factory, can be used as a variety of cable breakdown point positioning, optional digital capacitance meter, can find the break point. The device is lightweight and easy to carry to the field for cable users to locate services.
Bridge cable fault detector
| Điện áp thử nghiệm: negative high voltage | 0 ~ 15kV, điều chỉnh liên tục |
| Dòng điện tối đa | 30ma |
| Test ratio accuracy | ± (0.2%·L±1) tôi |
| Burning voltage | 0 ~ 15kV, điều chỉnh liên tục |
| Burning current | 30ma |
| Nguồn điện làm việc | AC220V±10% |
| Anti-interference ability | > 100VAC |
| Cân nặng | ≤12kg |
| kích thước tổng thể | L450mm × W330mm × H320mm |
