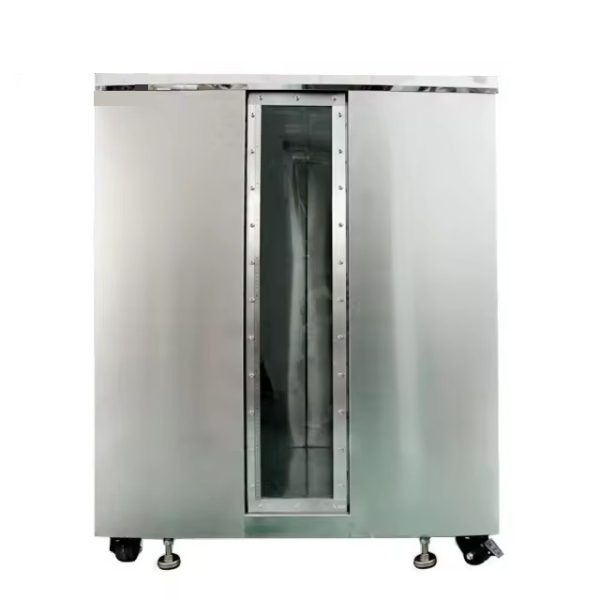

Immersion testing machine
Product Application
The main function of the immersion test equipment is for the electronic and electrical products, đèn, tủ điện, linh kiện điện, ô tô, motorcycles and their parts and other products in the simulated rain conditions, the physical and other related properties of the test. After the test, through the test to determine whether the performance of the product requirements, in order to facilitate the product design, sự cải tiến, testing and factory inspection use.
Immersion testing machine
|
SPECIFICATIONS FOR IPX7 WATER INGRESS PROTECTION
IMMERSION TEST CHAMBER
|
IEC60529/IPX7
|
||||
|
Người mẫu
|
IPX7B-108L
|
IPX7B-432L
|
IPX7B-960L
|
IPX7B-1200L
|
IPX7B-1728L
|
|
Inner size（cm）
|
30*30*120
|
60*60*120
|
100*80*120
|
100*100*120
|
120*120*120
|
|
External size
|
36*36*130
|
66*66*130
|
108*88*130
|
108*108*130
|
128*128*130
|
|
inside box thick
|
1.5mm
|
1.5mm
|
1.5mm
|
2mm
|
2mm
|
|
Max depth
|
1.2tôi
|
||||
|
Water level
|
Manual adjustment
|
||||
|
Water level display
|
Stainless steel ruler visual (display number 1mm)
|
||||
|
Box materials
|
Stainless steel
|
||||
|
Tiêu chuẩn
|
IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7)
|
||||
