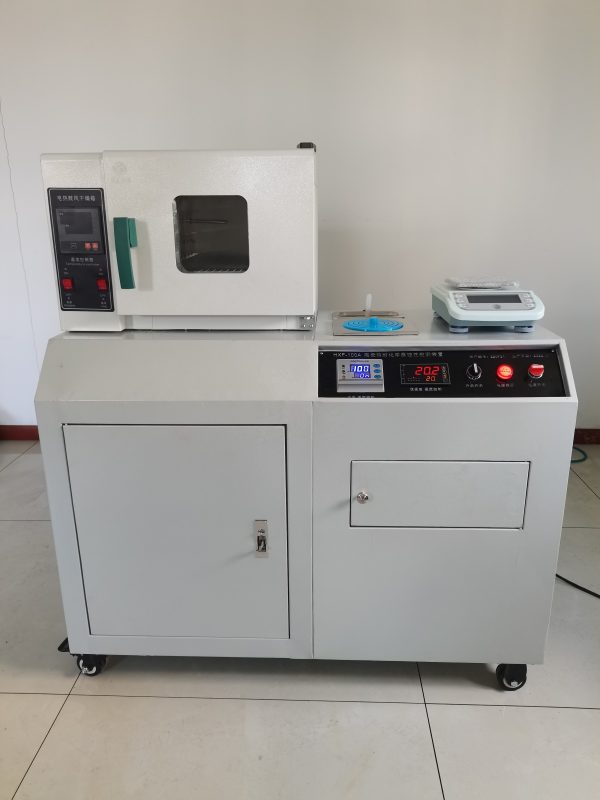

Thiết bị chống ăn mòn hóa học HXF
Giới thiệu
The test device is used to detect the chemical corrosion resistance of ceramic tile and evaluate its chemical corrosion resistance grade. The test method shall comply with the requirements of GB/T3810.13-2016, BS EN ISO 10545-13:2016 Ceramic tiles-Part13:Determination of chemical resistance. It is widely used in enterprises, research institutes product development, production and customs import and export commodity inspection and other best test instrument.
Thiết bị chống ăn mòn hóa học HXF
Các thông số kỹ thuật chính:
1. Chemical ammonium chloride solution :100g/L several. Other solvents meet standard requirements.
2. Borosilicate glass volume: 10L. The standard requires ISO 3585.
3. Drying box: 350×350×350. Stainless steel volume. Temperature 110℃±5℃.
4. Tank volume 10L. Flushing valve diameter φ16, tap water flushing pressure.
5. Time control setting is set by date and completed automatically.
6. Sample cutting size 50×50(mm).
7. Test bench appearance size: 1500 length ×500 width ×1500 height.
8. With 5000g/0.01g electronic balance.
9. Power supply 220V/50HZ. Quyền lực < 1000W.
10. Reflected light source 40W white.
