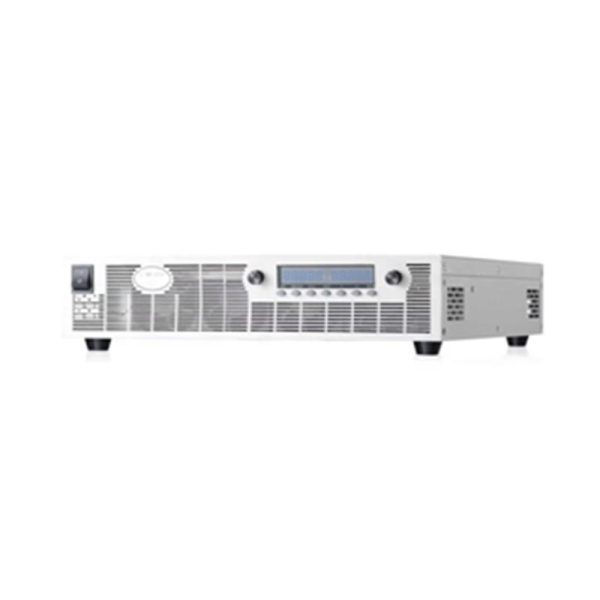

GA6002 GA6005 Programmable DC Power Supply GA6300 GA15100

WSD-10H10H Adjustable Programmable DC Power Supply
Tonghui TH6501 Programmable Linear DC Power Supply TH6502

Loại:

Sự miêu tả

DC Power Supply

Ghi chú: This product series’s input supply voltage is 220V, currently it does not support 110V input voltage, if end user’s country use 110V input voltage, need to buy the 110-220V converter or regulator, buyers can buy the converter from us or buy a regulator locally.
For 220V input voltage country, no need to buy the converter/regulator.

Người mẫu:GA6002
The regulation mode adopts Power module, whichfacilitates high efficiency, high accuracy and highstability.The series can be made according to customerrequest, with output voltage up to 2000V and outputcurrent up to 3000A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and OverLoad Protection keep the power supply and their load safe from unexpected conditions.
For more complicated applications, the power supplies are available with many optionafunctions: RS232/485 interface, remote sensing, remote ON/OFF control, timer switch, andsquare waveform output. The power supply is an ideal solution for various industrial applications.
Đặc trưng
1.Tối đa. output voltage 600V, Tối đa. output current 2A
2.Applying power modul and 19-inch standard size 3.4 1/2 LED display for voltage and currentConstant voltage (CV) and constant current (CC) operations, Auto CVCC switch
Front panel operation: preset voltage and current, output ON/OFF
4.Multiple protections: OVP, OCP,OTP and OLP
5.Optional function – Digital Signal output: RS232 or RS485 interface
6.Optional function – Analog output: DC O-5V or 4-20mA signal to controlthe output voltage and current
7.Optional function -Remote Sensing: to compensate the voltage drop
8.Optional function – Remote ON/OFF control: using a potentiometer tocontrol the output
9.Optional function Timer Switch: to turn on or of the output as perpreset ti ie
10.Optional function – Square Waveform Output: to output user-definedsquare waveform according to preset time and cycles
Người mẫu: GA6300
The regulation mode adopts Power module, whichfacilitates high efficiency, high accuracy and highstability. The series can be made according to customer request, with output voltage up to 2000V and outputcurrent up to 3000A. Kích cỡ:425*88*450mm Over Voltage Protection, Over Current Protection, Over Temperature Protection and OverLoad Protection keep the power supply and their load safe from unexpected conditions. For more complicated applications, the power supplies are available withemany optionalfunctions: RS232/485 interface, remote sensing, remote ON/OFF control, timer switch, andsquare waveform output. The power supply is an ideal solution for various industrialapplications.
Đặc trưng
1.Tối đa. output voltage 6V, Tối đa, output current 300A 2.Applying power module and 19-inch standard size 3.4 1/2 LED display for voltage and current Constant voltage (CV) and constant current (CC) operations, Auto CV/CC switch Front panel operation: preset voltage and current, output ON/OFF
4.Multiple protections: OVP, OCP, OTP and OLP
5.Optional function – Digital Signal output: RS232 or RS485 interface
6.Optional function – Analog output: DC 0-5V or 4-20mA signal to controlthe output voltage and current 7.Optional function – Remote Sensing: to compensate the voltage drop
8.Optional function – Remote ON/OFF control: using a potentiometer tocontrol the output
9.Optional function – Timer Switch: to turn on or o f the output as perpreset ti iie 10.Optional function – Square Waveform Output: to output user-defined square waveform according to preset time and cycles
DC Power Supply
Người mẫu: GA6005
The requlation mode adopts Power module. whichfacilitates high efficiency, high accuracy and highstability. The series can be made according to customer request, with output voltage up to 2000V and outputcurrent up to 3000A. Kích cỡ:2U 425*88*450mm Over Voltage Protection, Over Current Protection, Over Temperature Protection and OverLoad Protection keep the power supply and their load safe from unexpected conditions. For more complicated applications, the power supplies are available with”many optionalfunctions: RS232/485 interface, remote sensing, remote ON/OFFcontrol, timer switch, andsquare waveform output. The power supply is an ideal solution for various industrialapplications.
Tính năng
1.Tối đa. output voltage 600V，Tối đa,output current 5A .2.Applying power module and 19-inch standard size 3.4 1/2 LED display for voltage and current Constant voltage (CV) and constant current (CC) operations, Auto CV/CC switch Front panel operation: reset voltage and current, output ON/OFF
4.Multiple protections: OVP,OCP,OTP and OLP
5.Optional function – Digital Signal output: RS232 or RS485 interface
6.Optional function – Analog output: DC 0-5V or 4-20mA signal to controlthe output voltage and current 7.Optional function Remote Sensing: to compensate the voltage drop
8.Optional function – Remote ON/OFF control: using a potentiometer tocontrol the output 9.Optional function – Timer Switch: to turn on or o the output as perpreset ti ie 10.Optional function – Square Waveform Output: to output user-definedsquare waveform according to preset time and cycles
Người mẫu: GA15100
The regulation mode adopts Power module, whichfacilitates high efficiency, high accuracy and highstability. The series can be made according to customer request, with output voltage up to 2000V and outputcurrent up to 3000A. Kích cỡ:425*44*450mm Over Voltage Protection, Over Current Protection, Over Temperature Protection and OverLoad Protection keep the power supply and their load safe from unexpected conditions. For more complicated applications, the power supplies are available withmany optionalfunctions: RS232/485 interface, remote sensing, remote ON/OFFcontro, timer switch, andsquare waveform output. The power supply is an ideal solution for various industrial applications.
Tính năng
1.Tối đa. output voltage 15V, Maxoutput current 100A 2.Applying power module and 19-inch standard size 3.4 1/2 LED display for voltage and currentConstant voltage (CV) and constant current (CC) operations, Auto CV/CC switch Front panel operation: preset voltage and current, output ON/OFF
4.Multiple protections: OVP,OCP,OTP and OLP
5.Optional function – Digital Signal output: RS232 or RS485 interface
6.Optional function – Analog output: DC 0-5V or 4-20mA signal to controlthe output voltage and current 7.Optional function – Remote Sensing: to compensate the voltage drop
8.Optional function – Remote ON/OFF control: using a potentiometer tocontrol the output
9.Optional function – Timer Switch: to turn on or o the output as perpreset ti ie 10.Optional function Square Waveform Output: to output user-definedsquare waveform according to preset time and cycles
DC Power Supply
Người mẫu:GA12010
The regulation mode adopts Power module, whichfacilitates high efficiency， high accuracy and highstability. The series can be made according to customer request, with output voltage up to 2000V and outputcurrent up to 3000A Size:425*44*450mm Over Voltage Protection, Over Current Protection, Over Temperature Protection and OverLoad Protection keep the power supply and their load safe from unexpected conditions. For more complicated applications, the power supplies are available with many optionalfunctions: RS232485 interface, remote sensing, remote ON/OFF control, timer switch, andsquare waveform output. The power supply is an ideal solution for various industrialapplications.
Tính năng
1.Tối đa. output voltage 120V, Max output current 10A 2.Applying power module and 19-inch standard size 3.4 1/2 LED display for voltage and current 4.Constant voltage (CV) and constant current (CC) operations, Auto CV/CC switch Front panel operation: preset voltage and current, output ON/OFF
5.Multiple protections: OVP,OCP,OTP and OLP
6.Optional function – Digital Signal output: RS232 or RS485 interface
7.Optional function – Analog output: DC 0-5V or 4-20mA signal to controlthe output voltage and current
8.Optional function – Remote Sensing: to compensate the voltage drop
9.Optional function – Remote ON/OFF control: using a potentiometer tocontrol the outpu
10.tOptional function – Timer Switch: to turn on or o f the output as perpreset ti ie 11.Optional function – Square Waveform Output: to output user-definedsquare waveform according to preset time and cycles
DC Power Supply
Người mẫu GA6002



 GA6005



 GA6300



 GA15100



 GA12010


Output capacity 1200W/600V/2V 3000W/600V/5A 1800W/6V/300A 1500W/15V/100A 1200W/120V/10A
đầu vào single phase 220Vac±10%
Constant Voltage Operation
Điện áp đầu ra DC 0~100% full range adjustable
Line regulation ≤0.2% + 2d
Load regulation ≤0.3% + 2d
Temperature drift ≤0.1%/℃
Ripple & Noise ≤0.3%+10mV (rms)
Constant Current Operation
Output Current DC 0~100% full range adjustable
Line regulation ≤0.2% + 2d
Load regulation ≤0.3% + 2d
Temperature drift ≤0.3%/℃
Ripple & Noise ≤0.5%+10mA (rms)
Trưng bày
Mét 4 digits LED display
Voltage display 00.00V-99.99V; 000.0V-999.9V; 0000V-9999V
Độ phân giải hiện tại 00.00A-99.99A; 000.0A-999.9A; 0000A-9999A
Sự chính xác ±1% (F.S)
Protection
Over Voltage Protection (OVP) Built-in OVP, protection limit is +5% of rated voltage. The output will be shutdown when OVP is activated.
Over Current Protection

(OCP)



 Over load, short circuit and current limit output
Over Temperature Protection

(OTP)



 Built-in OTP, protection limit is 85℃±5% (temperature of cooling device). The output will be shutdown when OTP is activated
General
Cooling method Cooling fan
Input module Power socket or terminal block
Operating environment 0℃~40℃, 10%~80%RH
Storage environment -20℃~70℃, 10%~90%RH
