Sự miêu tả

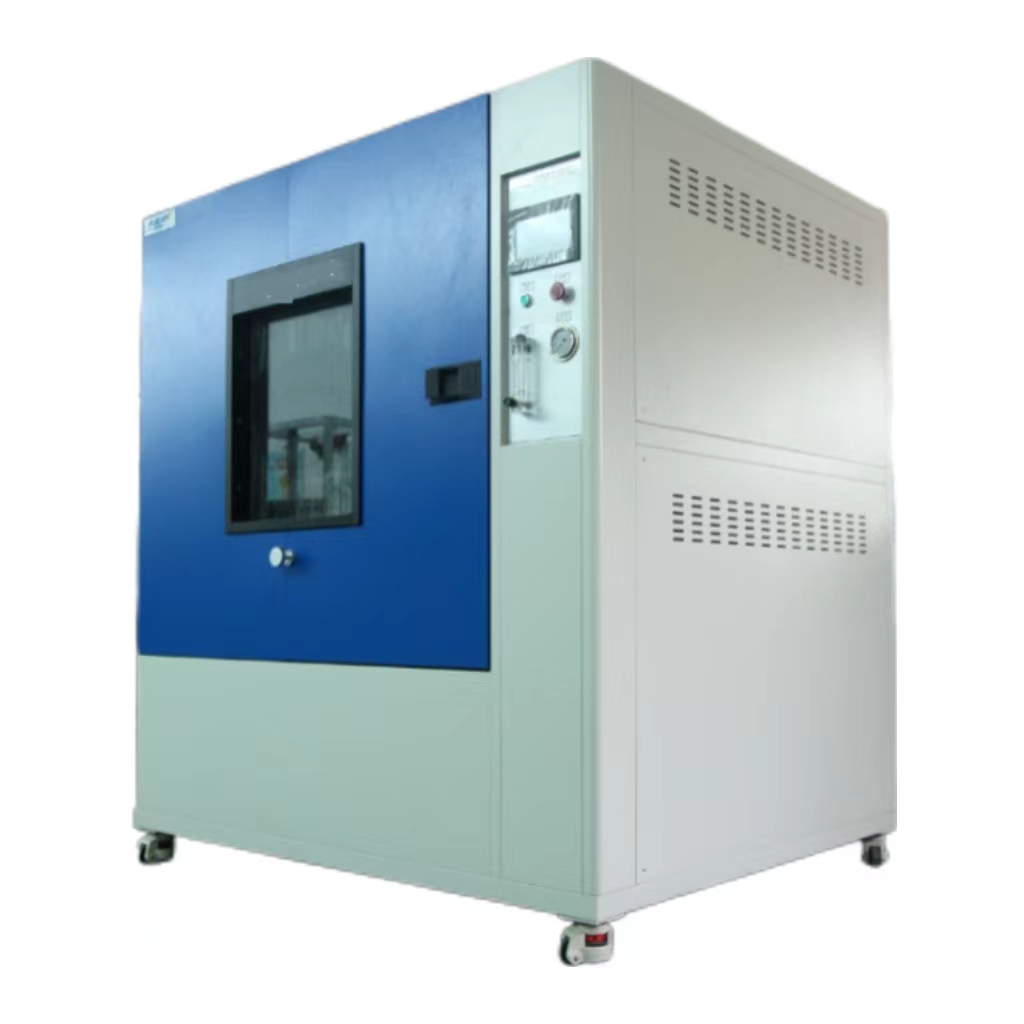

Integrated rain test chamber
Production standard:
Comply with IEC60529:1989, “GB4208-2017 shell protection grade (IP code)” and GB7000.1 “Lamps Part I: General requirements and tests” provisions.
Tính năng sản phẩm:
1, suitable for product IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 waterproof grade test.
2, model structure: box-type structure, easy installation, smooth rotation of the pendulum tube.
3, the equipment shell and turntable are all made of SUS304# stainless steel plate, long-term use without rust.
4, 304 stainless steel water storage tank, water tank installed with water level float ball valve automatic control of water, and high and low water level alarm detection, effectively prevent water pump dry turn damage.
5, pendulum tube drive: the use of imported Panasonic servo motor (servo motor with small noise, pendulum tube speed, Angle accuracy and other advantages).
6, turntable drive: the use of domestic high-quality stepper motor, speed and Angle can be set on the touch screen adjustable, accurate stepless adjustable within the standard range, and can automatically control the positive and negative rotation.
7, the test time can be set :0-999Tối thiểu(có thể điều chỉnh); Sample power on and off time can be controlled by the program: power off (0-999Tối thiểu) – power on (0-999Tối thiểu) a power off is suitable for the sample in the test need to power on and off. (0-999Tối thiểu),
Integrated rain test chamber
Structure material:
1, vòi phun :304 stainless steel pipe
2, vòi phun :SUS304 stainless steel plate
3, table :SUS304 stainless steel plate
4, IP56 internal bracket: stainless steel square, PU hose
5, electrical control accessories selected from France Snide, Omron, Delixi, Fuji and other international well-known brands
6, high-power water pump 3KW multiple solenoid valves control the waterway
7, IPX12 vertical drip, IP34 swing pipe rain, IP56 strong water spray control system operate together, IP level can be selected for testing.
| the total size of the laboratory | depth 3500x width 1500x height 1800mm |
| Inner box size | depth 100x width 100mmx height 100mm |
| IP12 drip pan | 600X600mm, height 120MM, hole distance :20X20MM, drip hole :0.4MM |
| drip flow | IP1-1mm±0.5/min,IP2-3mm± 1/min |
| IP34 swing tube radius | 300MM a set, swing tube diameter :16M, hole distance :50MM, water hole :0.4MIM |
| Spray flow | 0.07L/Iin |
| Pendulum tube Angle | 120°–300°(close) |
| Pendulum speed | 5-15 per minute, can be set |
| IP56 | 1 IP6 sprinkler head, 1 IP5 sprinkler head, the support frame is installed on the right side, and the middle is connected to the test box with a stainless steel round barrel with a diameter of 600mm. The nozzle is 2700Mm away from the center of the turntable. |
| Đường kính ống | Side part adopts PVC pipe, IP5 one, IP6 one is 3 meters long. |
| Nozzle size | medium 12.5mm, (IP6 grade); Medium 6.5mm, (IP5 grade) |
| Water spray pressure | 80~150kpa(có thể điều chỉnh) |
| Water spraying intensity | IP6-100+5(L/phút), IP5-12.5±0.625(L/phút) |
| Turntable | medium 300MM total one. |
| Tốc độ | 1-3 vòng/phút |
| Load-bearing | 50Kilôgam (rotation according to program setting)304 stainless steel design and production |
| Spray duration | 3, 10, 999Tối thiểu(có thể điều chỉnh) |
| Running time control | 1~9999min(có thể điều chỉnh) |
| Water circulation system to ensure the recycling of water sources | |
| Receiving surface | product front |
| Water pressure gauge, can display water pressure | |
| Hệ thống điều khiển | PLC touch screen intelligent control system |
