GA-95 IPX7 Water immersion tester
- Sự miêu tả
- Cuộc điều tra
Sự miêu tả

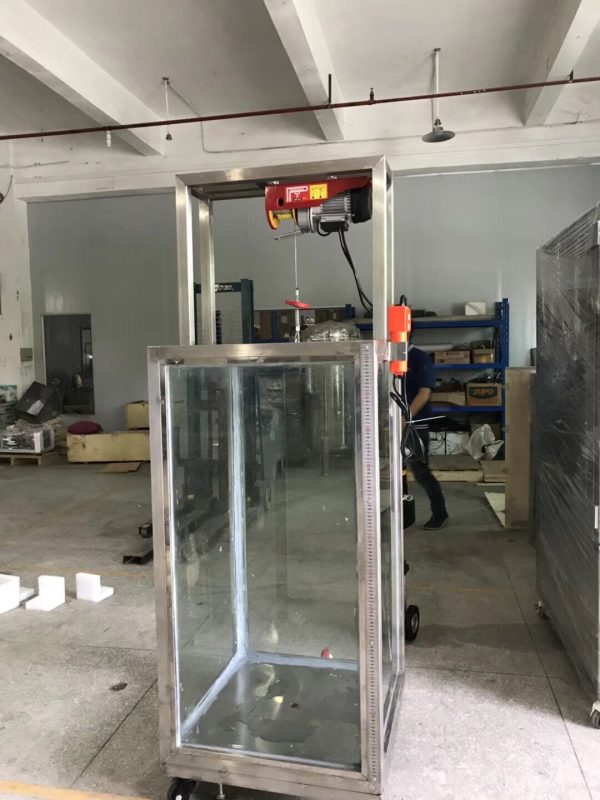

IPX7 Water immersion tester
The IPX7 submersible testing machine is used to test the IPX7 waterproof rating of products, including electronic components, outdoor lamps, mobile phone casings, phụ tùng ô tô, vân vân
IPX7 immersion testing machine fully meets the requirements of IEC60529, GB/T4208-2017 “Shell protection grade (IP code)” and GB7000.1 “Lamps Part I :- General requirements and tests”.The IPX7 submersible testing machine is used to test the IPX7 waterproof rating of products, including electronic components, outdoor lamps, mobile phone casings, phụ tùng ô tô, vân vân
IPX7 immersion testing machine fully meets the requirements of IEC60529, GB/T4208-2017 “Shell protection grade (IP code)” and GB7000.1 “Lamps Part I :- General requirements and tests”.
IPX7 Water immersion tester
| External dimension of equipment | Chiều dài 660* Chiều sâu 660* Chiều cao 1900(with casters) |
| Kích thước hộp | Chiều dài 600* Chiều rộng 600* height 1200mm |
| Test depth | 1.2 tôi |
| Tank thickness | 1. 5mm |
| Adjustable window | Tempered glass (thickness 12mm) |
| Viewing window width | 200mm |
| Water level indication | Stainless steel ruler (accuracy 1mm), horizontal visual |
| Frame material | Stainless steel square |
