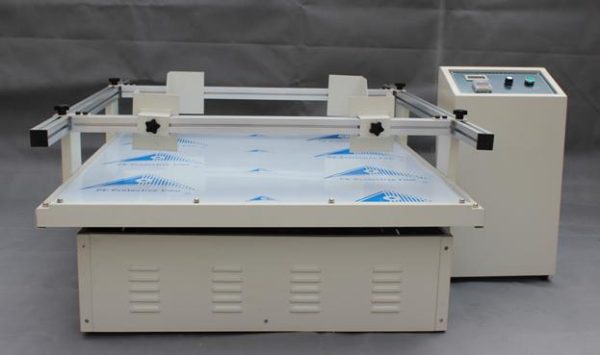

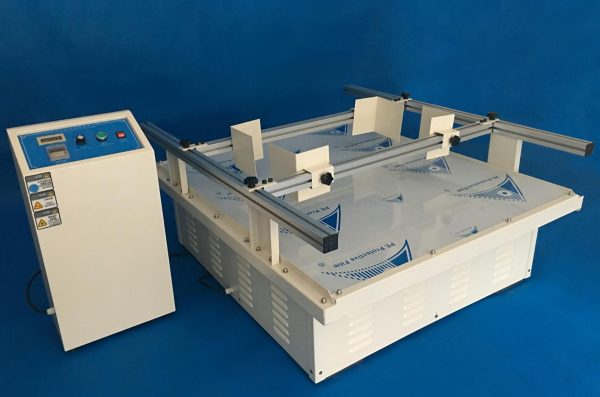

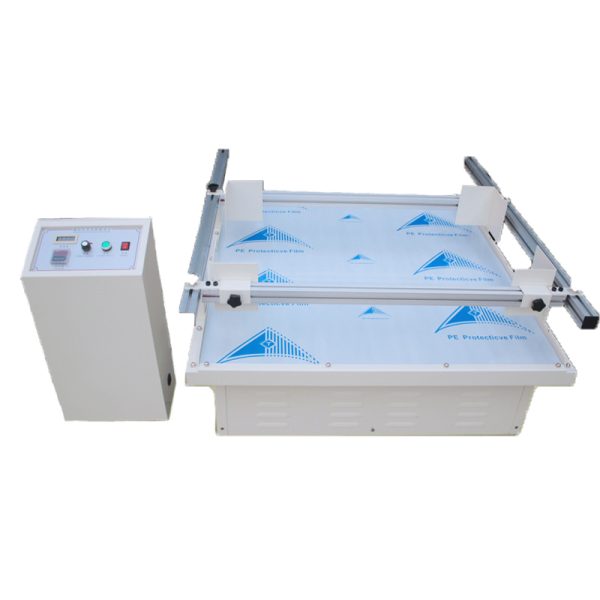

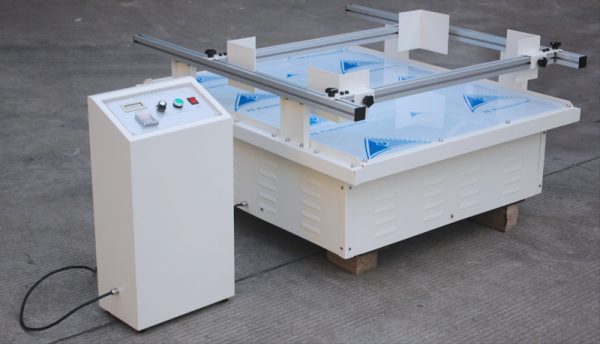

GA-5024B Simulation Transport Vibration Table

Sự miêu tả

GA-5024B Simulation Transport Vibration Table

giới thiệu

This machine is suitable for toys, electronics, furniture, gifts, gốm sứ, packaging and other products for simulated transport test, in line with the United States and European transport standards

[Applicable standards]

EN ANSI, UL, ASTM, ISTA International Transportation standards

GA-5024B Simulation Transport Vibration Table

Tính năng

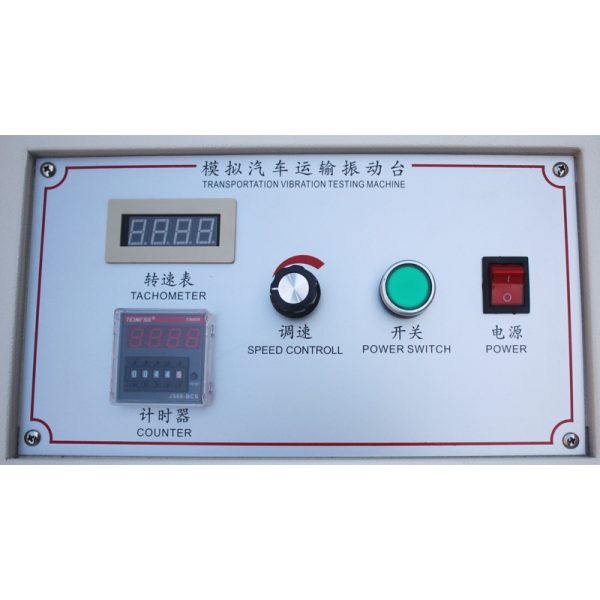

※ Digital meter displays vibration frequency
※ Synchronous quiet belt drive, very low noise

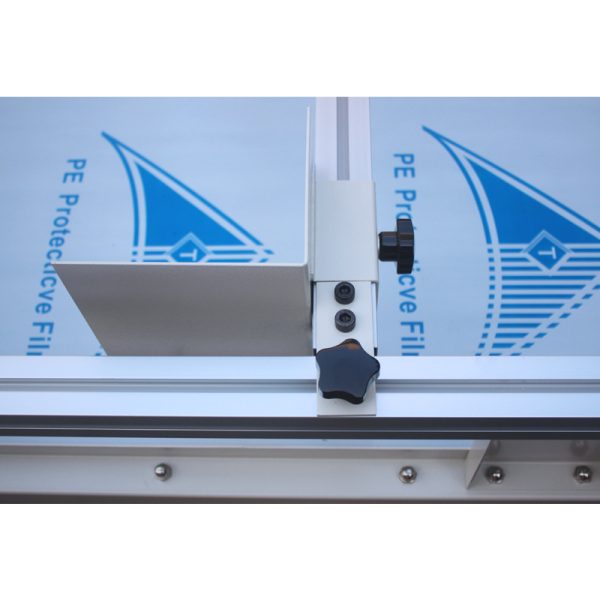

※ Sample clamp adopts guide rail type, easy to operate and safe
※ The base of the machine adopts heavy channel steel with vibration damping rubber pad, easy installation, smooth operation, no need to install anchor screws
※ DC motor speed regulation, smooth operation, strong load capacity
※ Rotary vibration (commonly known as horse type), in line with European and American transportation standards

Thông số

Vibration frequency 100~300rpm
Maximum load 100kg
Amplitude 25.4mm(1 “)
Effective work surface size 1200x1000mm
Motor power 1HP (0.75kw)
Body size 1200×1000×650 (mm)
Timer 0~99H99m
Trọng lượng máy :100Kilôgam
Display frequency accuracy 1rpm
Power supply AC220V 10A
