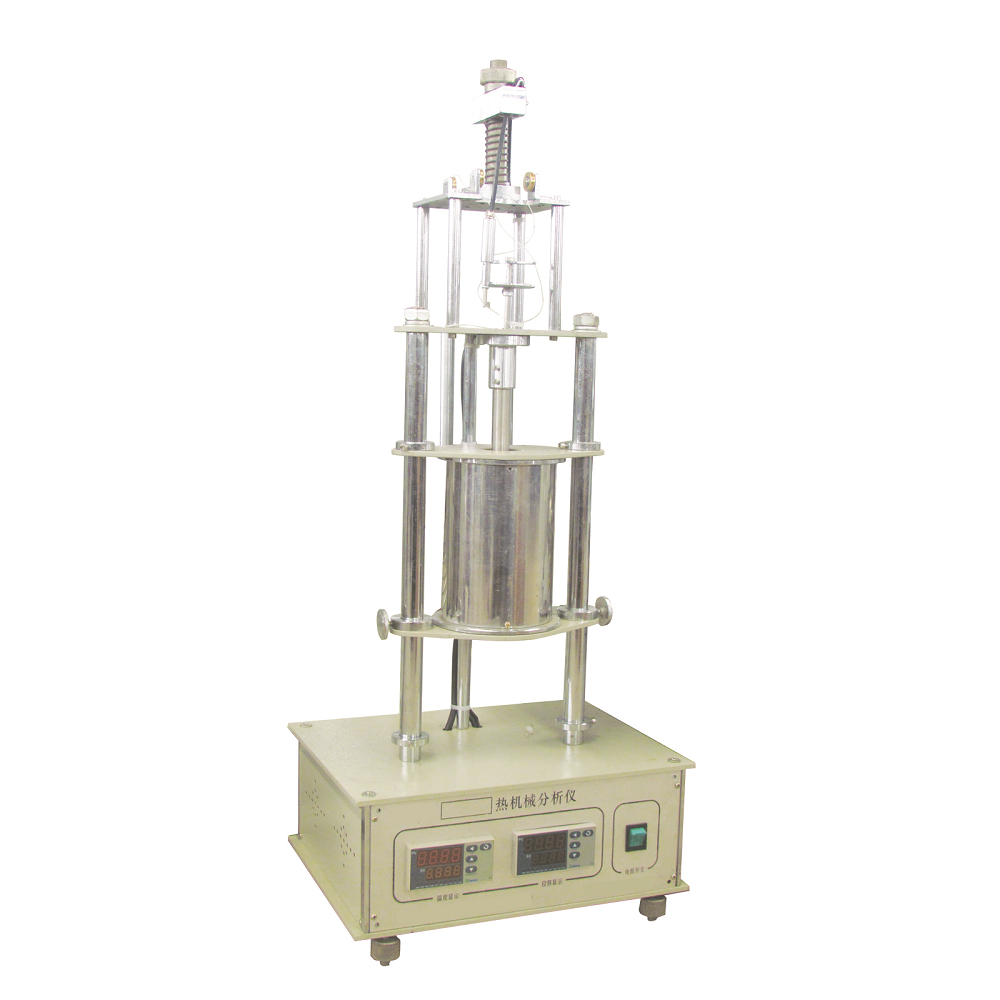

TMA analyzer tester
I.Product introduction
The instrument is mainly used to measure the expansion coefficient, glass transition temperature and thermoplastic Vica softening temperature of plastics. The glass transition temperature test is in line with GB11998-89 (plastic glass transition temperature determination method – thermomechanical analysis), and the softening temperature determination of thermoplastic Vica is in line with GB/T1633-2000 ISO 306:1994 (thermoplastic VICa softening temperature (VST) determination. The instrument is widely used in material production enterprises, quality inspection units, trường đại học, research institutes and other laboratories for thermo-mechanical analysis of plastics.
TMA analyzer tester
II.Product parameter
| Electric furnace temperature | room temperature -300℃; |
| the maximum load | 10N. |
| điện áp cung cấp điện | 220V±10%, 50HZ |
| maximum power consumption | less than 0.5KW |
| đo chuyển vị | 0-3mm, resolution 0.1um |
| temperature measurement | resolution 0.1℃ |
| cỡ mẫu | Một, expansion coefficient sample: less than or equal to Φ10×20mm
b, glass transition temperature sample: Cylindrical specimen Φ(4.5± 0,5)×(6.0±1.0)mm Square sample (4.5± 0,5)×(4.5± 0,5)×(6.0±1.0)mm c, Vica softening temperature sample: sample thickness 3-6.5mm, side length 10mm square or diameter 10mm cylindrical |
| the whole process is controlled by the computer, record the test results and automatically generate the test report, and can be printed out. | |
TMA analyzer tester
Cấu hình: including one GA-364 test host, one set of test software, one set of communication interface and data line, one set of weights, one set of desktop computer (theo cấu hình hợp đồng).
