Description

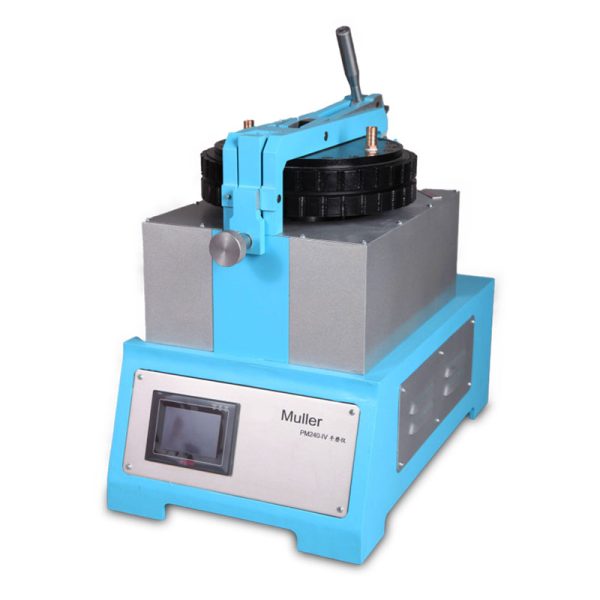

PM240-Ⅳ Digital Flat Grinding Instrument
Product Overview:
The flat grinding instrument is an essential instrument in the standard GB5211.19 “Visual Comparison method for the determination of the relative coloring power and diluting color of colored pigments”.
This machine can be used as physical property testing instrument for pigment, coating and ink industry. The machine has the advantages of compact structure, simple appearance, convenient transformation of revolution and load, easy installation and disassembly of glass plate. Microcomputer control, LCD display, easy parameter setting. When the input parameter is wrong, the controller will automatically display “input invalid”, to achieve the purpose of reliable control and simple operation. The operation adopts the touch screen mode, the display and operation are simple and clear.
PM240-Ⅳ Digital Flat Grinding Instrument
Standard:
gb / t 5211-16、gb / t 5211-19、gb / t 21867.1、gb / t 21868.5、iso 787-16、iso 787-17、iso 8780-5、iso 8780-1
PM240-Ⅳ Digital Flat Grinding Instrument
Parameter
| Model | PM 240-IV |
| Diameter grinding disc | 240mm |
| Load/weight weight | 43 kg/（1.75kg） 64 kg/( 1.75kg×2） 100 kg（1.75kg×2+2.92） |
| supply voltage | 380 V 50 Hz (220V customizable) |
| Pan speed | 75±5rpm |
| Set frequency range | 1～9999 |
| Range of runs | 0～9999 |
| Cumulative frequency range | 0～9999 |
| Main engine dimensions | 570×350×500mm (Length × width × height) |
| Net Weight | 79kg |
| motor power | 0.75kW |
| package size | 850×450×700mm |
| Total weight (including packaging) | 91kg |
