KDBR-II Transformer characteristic capacity tester
- Description
- Inquiry
Description

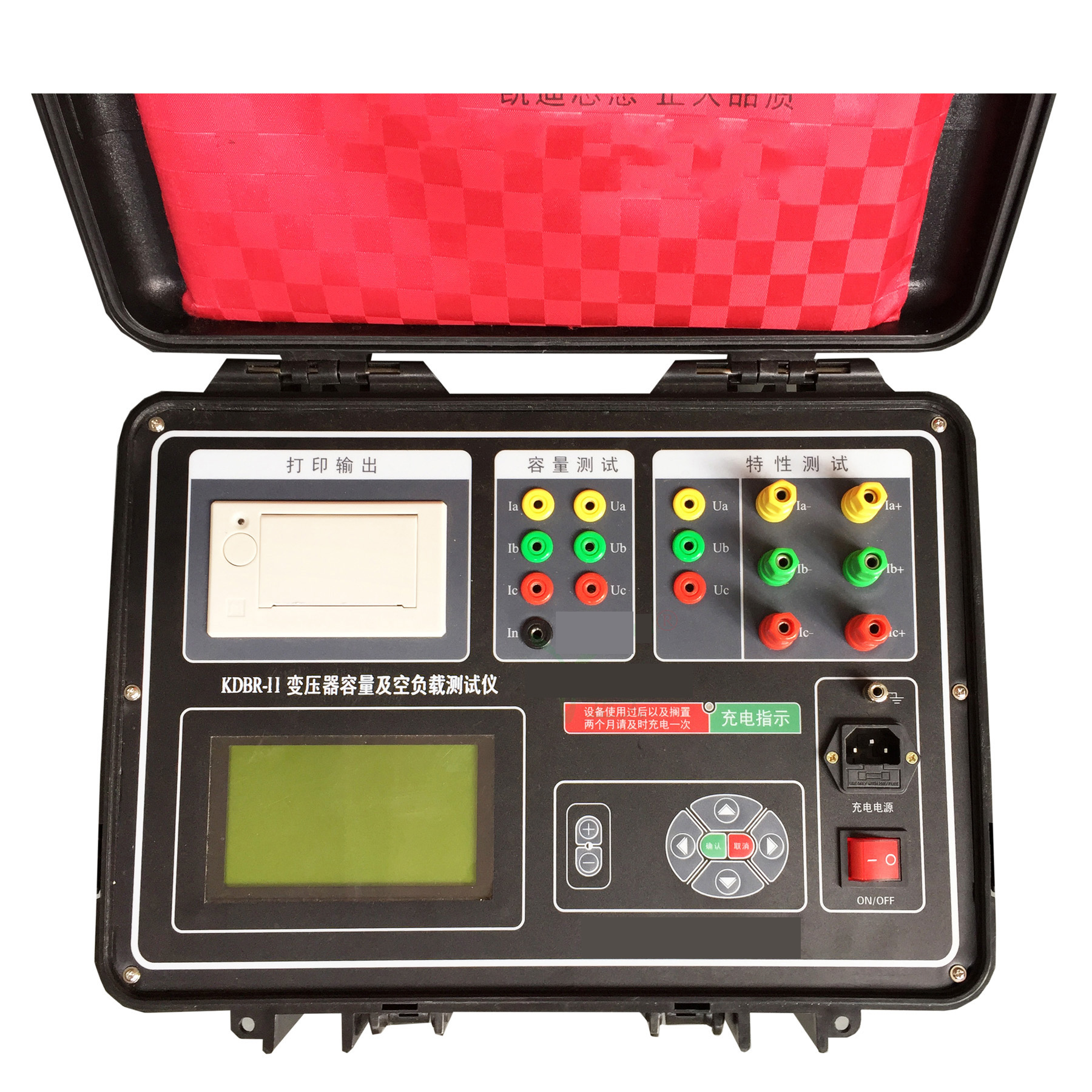

Transformer characteristic capacity tester
Functional features:
1, can accurately measure the capacity of various distribution transformers, passive measurement, convenient and accurate.
2, internal power supply, automatic generation of three-phase high-power test power supply.
3, built-in high-performance lithium-ion rechargeable battery, large capacity, fully charged can be continuously tested more than 500 sets.
4, can measure various types of transformer no-load current, no-load loss, short-circuit voltage, short-circuit loss.
5, can automatically perform waveform distortion correction, temperature correction, voltage correction (non-rated voltage no-load test), current correction (non-rated current short-circuit test), the operator only needs to input the correction index instrument according to the type of transformer can automatically calculate the corrected results, very suitable for the unit without a slightly larger capacity transformer short-circuit test conditions.
6, the voltage circuit width limit: the maximum voltage can be measured to 750V, without switching gears to ensure accuracy. It will not damage the instrument itself due to the wrong voltage gear selection.
7, capacity measurement range: 20KVA~100000KVA.
8, the remaining percentage of battery power indicator function, not a simple deficit alarm.
9, large screen, high brightness LCD display, Chinese menu and operation prompts to achieve friendly human-machine dialogue, conductive silicone touch keys to make the operation easier, longer key life.
10, the user can real-time test data through the micro printer to print out the results.
11, test result storage function, can store 200 groups of capacity test data.
Transformer characteristic capacity tester
| Accuracy | Cx: ±(reading ×1%+1pF) |
| Tgδ | ±(reading ×1%+0.00040) |
| Anti-interference index | frequency conversion anti-interference, the above accuracy can still be achieved under 200% interference |
| Capacitance range | Internal high voltage: 3pF ~ 60000pF/10kV |
| Applied high voltage | 3pF ~ 1.5μF/10kV 3pF ~ 1.5μF/10kV |
| Resolution | up to 0.001pF,4 significant digits |
| CVT ratio measurement | 35 ~ 500kV grade CVT device ratio |
| Variable ratio measurement range: 10~99999
Variable ratio measurement accuracy: ± reading x1% Phase measurement range: 0~359.999° Phase measurement accuracy: ±0.002° |
|
| CVT self-excitation method | low voltage output: output voltage 3 ~ 50V
Output current 3 ~ 30A |
| tgδ range | unlimited, capacitance, inductance, resistance three kinds of test automatic identification
Resolution: 0.001% |
| Test current range | 10μA ~ 5A |
| Internal high voltage: Set voltage range: 0.5 ~ 10kV
Maximum output current: 200mA Lifting pressure mode: continuous smooth adjustment Voltage accuracy :±(1.5%× reading +10V) Voltage resolution: 1V |
|
| External application of high voltage: the maximum test current 1A when the normal connection
Power frequency or frequency conversion 40 ~ 70Hz Maximum test current during reverse wiring: 1A/10kV Power frequency or frequency conversion 40 ~ 70Hz |
|
| Test frequency: 45Hz, 50Hz, 55Hz, 60Hz, 65Hz single frequency
45/55Hz, 55/65Hz, 47.5/52.5Hz automatic double frequency conversion Frequency accuracy: ±0.01Hz |
|
| Measurement time | about 40s, related to the measurement method |
| Input power | 180V ~ 270VAC, 50Hz/60Hz±1%, mains or generator power supply |
| Ambient humidity | -10 ° C to 50 ° C |
| Relative humidity | Relative humidity |
