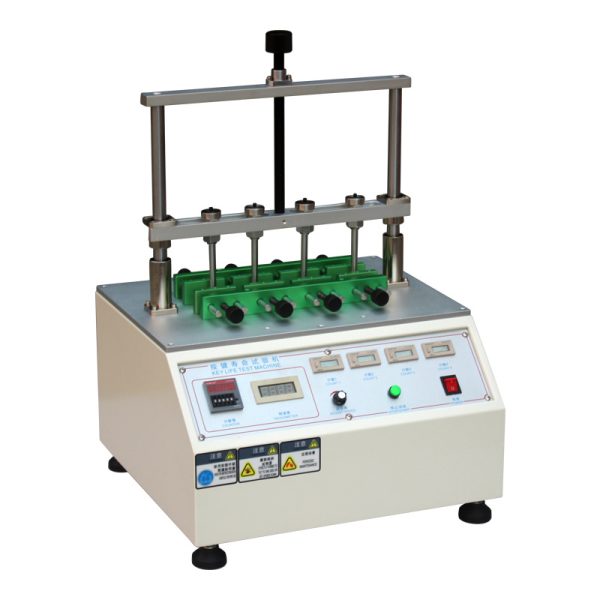

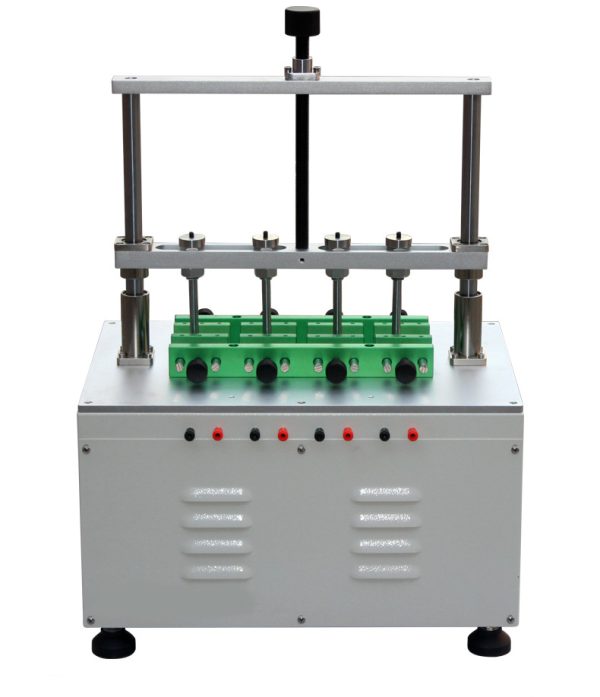

GA-5617 Key Life tester
Introduction
Key life testing machine is suitable for mobile phone, computer, electronic dictionary, Bluetooth headset, car player, remote control key, vehicle anti-theft device, fax machine key, MP5, MP4, MP3, key switch, touch switch, film key, rubber key, silicone key and other types of key life test. The machine places the product in the test position of the corresponding station respectively, and the key test rod simulates the service life test of the product under certain test load, speed, stroke and number of times.
GA-5617 Key Life tester
Product parameters:
1, test station: 4 (working at the same time)
2, load weight: 50, 100, 200, 300, 500g four (optional)
3, test counter: 0~99999999 times (preset, LCD display)
4, test turn-on counter: 0~999999 times (four-station turn-on automatic count, disconnect automatic stop count)
5, test speed: 5~60 times/min (adjustable knob, LCD display)
6, test stroke: 0~60mm (manual adjustable)
7, the test fixture conventional clamping range: 60×70mm (manual adjustable)
8, the test rod fixed device adjustable range: 0~180mm
9, overall size (L×W×H) : 500×400×550mm
10, machine weight: 25kg
11. Working power supply: AC220V, 50HZ
