KD-2125 Underground Cable detector
- คำอธิบาย
- สอบถาม
คำอธิบาย

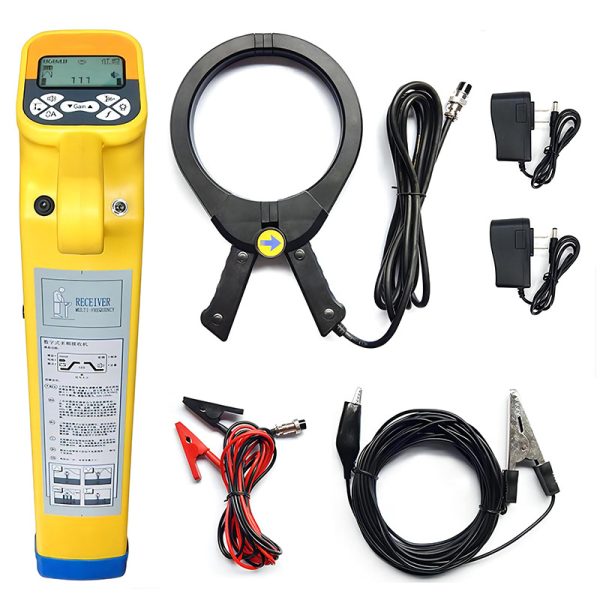

Underground Cable detector
【 Transmitter 】
| The output frequency | low frequency, intermediate frequency, ความถี่สูง, radio frequency (491 hz and 982 hz, 8.44 กิโลเฮิร์ตซ์, 9.82 กิโลเฮิร์ตซ์, 35 กิโลเฮิร์ตซ์, 82 กิโลเฮิร์ตซ์, 83 กิโลเฮิร์ตซ์; identify composite frequency 2 ~ 4 กิโลเฮิร์ตซ์. |
| โหมดเอาท์พุต | direct connection, induction, coupling |
| Clock accuracy | ≤50ns |
| กำลังขับ | with the matching load 1 ~ 10W automatic adjustment, resistance is 5-25000Ω |
| จอ LCD | automatic backlighting, graphic display output energy, digital display output power/current/voltage and loop resistance, operating mode, self-check state, load resistance, แรงดันไฟฟ้า, SS intelligent identification signal, four-way navigation key, menu selection, voltage alarm, SS intelligent identification signal, volume, external power/charging state, ฯลฯ |
| Operation mode | Softkey |
| กำลังขับ | ≥10W |
| Battery model and life | 18650 lithium battery charging set, maximum power continuous output time > 8ชม. |
| Overheat and overcurrent | automatic protection |
| Battery status | graphical display |
| Caliper diameter | 175มม |
| Charger | เครื่องปรับอากาศ 100 ~ 240V, 50 ~ 60Hz |
| ปริมาณ | 277 mm × 227 mm × 153 มม |
| น้ำหนัก | 2.8กิโลกรัม |

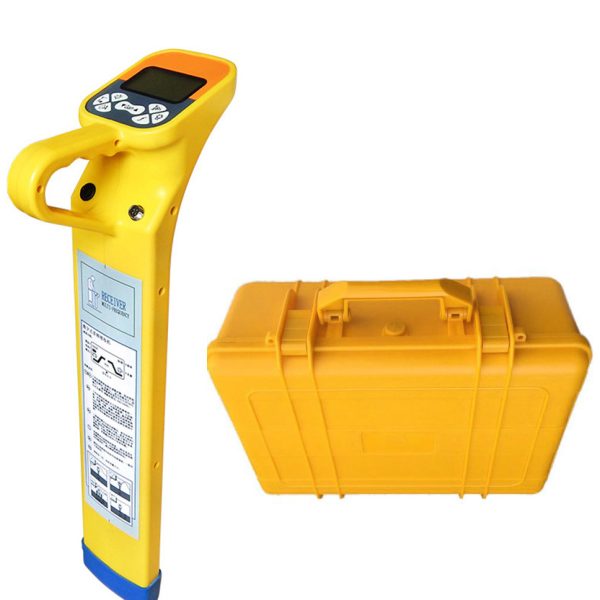

【 receiver 】
| The active frequency | low frequency, intermediate frequency, ความถี่สูง, radio frequency and power frequency (491 hz and 982 hz, 8.44 กิโลเฮิร์ตซ์, 9.82 กิโลเฮิร์ตซ์, 35 kHz to 82 กิโลเฮิร์ตซ์, 83 กิโลเฮิร์ตซ์; identify composite frequency 2 ~ 4 กิโลเฮิร์ตซ์); Depth with left/right direction indication |
| Passive frequency | 50/60เฮิรตซ์,100เฮิรตซ์,120เฮิรตซ์,RF14 ~ 21kHz; Display without depth and left/right direction |
| ช่วงการทดสอบ | 0 ~ 10 ม |
| Clock accuracy | ≤50ns |
| Depth range | 0 ~ 20m, 45 degrees sounding, 80% sounding |
| Sounding accuracy | ±2.5%+5 cm (0 ~ 2m) (related to the site environment, the shape of non-concentric lines, the distribution of adjacent pipelines, ฯลฯ) |
| Sound indication | frequency modulation tone with signal strength changes, แบ่งออกเป็น 4 levels of size |
| Signal strength indicator | จอ LCD, sound prompt |
| Signal strength | bar chart, digital range 0 ~ 999 |
| Gain dynamic range | 100 เดซิเบล, automatic and manual adjustment |
| Compass direction indication | left and right to automatically indicate the target pipeline position |
| จอ LCD | VGA high brightness LED, support strong sunlight, backlight lighting, to ensure normal work at night |
| Operation mode | Softkey |
| Display content | signal strength, depth, ปัจจุบัน, ความถี่, battery status, SS intelligent signal recognition indicator, GC compass guidance indicator, DA signal distortion warning, left/right positioning guidance arrow, signal gain, volume |
| Live identification | SS intelligent signal identification indicator, GC compass guidance indicator, DA signal distortion warning |
| Communication method | Bluetooth wireless communication |
| Battery model and working time | 18650 lithium battery charging group, continuous working > 12ชม. |
| Battery status | continuous power graphic display |
| ปริมาณ | 650mm × 32mm × 110mm |
| น้ำหนัก | 1.6กิโลกรัม |
