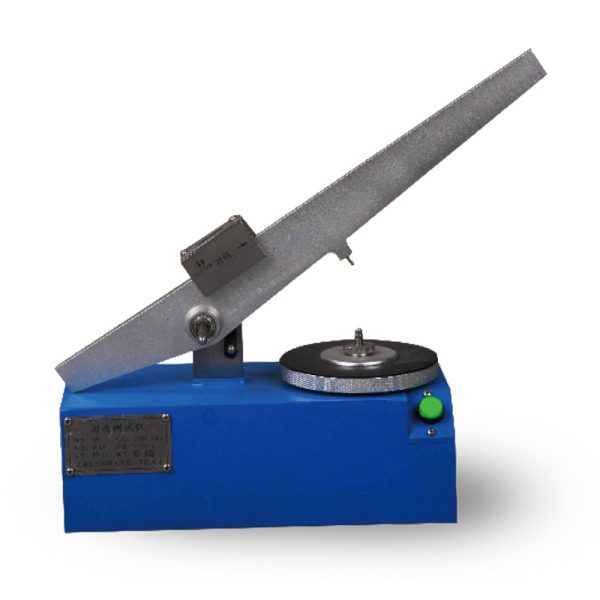

HY- V Wood Scratch Tester
Equipment Overview:
The scratch tester is used to detect the scratch resistance of the product surface, นั่นคือ, the resistance of the product surface to the diamond scratch under a certain pressure. It is often used for the scratch resistance test of wood-based panels and veneer wood-based panels, such as GB/T 15102, กิกะไบต์/ที 17657, กิกะไบต์/ที 18102 และอื่น ๆ.
HY- V Wood Scratch Tester
How it works:
Surface scratches are produced by applying pressure to the diamond stylus by means of the lever principle. The small pressure required to produce continuous scratches on the surface throughout the circle indicates the scratch resistance of the product.
พารามิเตอร์
| ชื่อ | Scratch tester (increased) |
| แบบอย่าง | HY-V |
| motor power | 6ว |
| rotary speed | 5±1r/min |
| Test plate size | Length ≤100mm Width ≤100mm Thickness ≤20mm |
| test load | 0~10N |
| แรงดันไฟฟ้า | 220V AC 50Hz |
| boundary dimension | 430×230×200mm（Length × width × height） |
| package size | 460×260×270mm |
| น้ำหนัก | 4.5กิโลกรัม |
| gross weight | 7.2กิโลกรัม |
