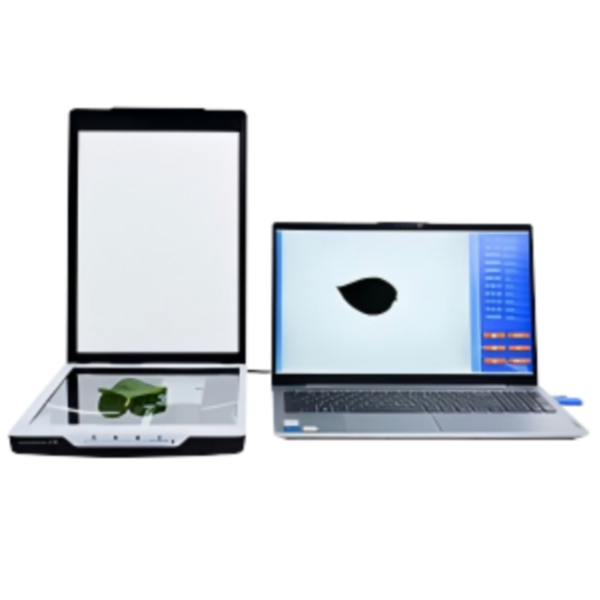

GA-C110 Leaf Area Measurement Scanner

คำอธิบาย

GA-C110 Leaf Area Measurement Scanner

การแนะนำสินค้า:

This leaf image analyzer adopts an open architecture, allowing for flexible configuration as a portable field or laboratory-grade scanning instrument for measuring leaf area. It utilizes calibrated image capture equipment to acquire high-quality leaf images and employs professional software to accurately analyze and calculate leaf area and related parameters. The instrument can measure leaves in segments, automatically merging two images and comprehensively analyzing various parameters. It is widely used in plant physiology, plant ecology, plant pathology, agronomy, horticulture, and forestry, and can be used for morphological and plant pathology research.

GA-C110 Leaf Area Measurement Scanner

Functional Parameters:

Leaf Measurement Parameters: Leaf area (single, multiple, and total area), leaf perimeter, maximum leaf length, maximum leaf width, aspect ratio, leaf and petiole length, shape factor, rectangularity, concavity/convexity ratio, sphericity, number of insect holes, insect hole area, ฯลฯ.

GA-C110 Leaf Area Measurement Scanner

Data Transmission:

Data can be uploaded to a cloud platform. Historical data can be retrieved by any time period and leaf type. Viewable data includes leaf area, perimeter, maximum leaf length, maximum leaf width, rectangularity, concavity/convexity ratio, sphericity, shape factor, number of insect holes, and insect hole area at the measurement time. Bar chart analysis of different parameters is supported. Data can be exported in Excel format. Data can be displayed according to the selected time period. Data analysis is supported in tables, bar charts, ฯลฯ, and online download is supported.

Leaf Image Analyzer Components:
1. Image Capture System: Manufacturer-calibrated image capture system
2. Leaf Image Analysis Software

Image Acquisition System Parameters:
Scanning area: 220×300 mm, ปณิธาน: 4800 dpi, portable tablet, powered by a laptop

ช่วงการวัด: Broadleaf blades not larger than 220×300 mm

Measurement Resolution:
พื้นที่: 0.001 cm²
ความยาว, ความกว้าง: 0.01 ซม

Configuration List: Scanner, dongle, USB flash drive, instruction manual, certificate of conformity, carrying case
