คำอธิบาย
เครื่องวิเคราะห์ส่วนเทอร์มินัล
การแนะนำ

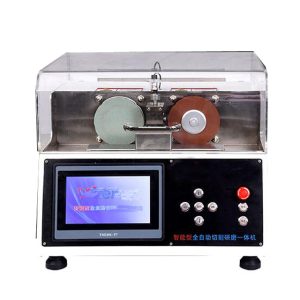

This wire harness terminal profile analyzer adopts seven-inch touch screen interface to intelligently cut and grind, ensuring the smoothness of cutting and grinding, and greatly reducing the error and time of personnel operation. Only need to input product diameter, one key cutting grinding.
เครื่องวิเคราะห์ส่วนเทอร์มินัล
คุณสมบัติ:
1.Use linear guide rail to ensure installation accuracy.
2.The motor adopts horizontal installation to ensure small swing of rotation.
3.Laser infrared counterpoint ensures fast alignment of cutting position.
4.Optional XY mobile working platform with 360 degree rotating table, convenient terminal section sampling.
5.Add drainage system, easy to clean the machine.
6.Fixture front, easy to install and adjust.
7.Trigger switch to ensure personnel safety.
8.Velcro sandpaper, quick replacement.
9.Adopt 5 million pixel industrial camera, which can collect hd dynamic pictures.
10.Built-in measurement standard analysis software, fast report export.
11.Use seven-inch touch system, intelligent cutting program
12.จนถึง 30 groups of programs saved
13.Add button operation and prolong service life.
เครื่องวิเคราะห์ส่วนเทอร์มินัล
ตัวชี้วัดทางเทคนิคหลัก
1.ตัวชี้วัดทางเทคนิคหลัก
1..Cutting module
Wire diameter range: (ø 0.10mm – ø 20.00mm including terminal)
ความเร็ว: 2800 รอบต่อนาที
Cutting speed: automatically adjustable
Cutting wheel: φ105 x 0.5 xφ16mm
2.Polish the module
ความเร็ว: 1400 รอบต่อนาที
Z fine tuning range: 0.0mm to 20.0mm (automatically adjustable)
Velcro abrasive paper: Diameter 100mm 1000# 2000# 3000# (ไม่จำเป็น)
3.Corroded part
Professional terminal section cleaning liquid
Corrosion time: 5 ถึง 30 SEC
4.Picture intake and analysis
6megapixel industrial camera
High quality, low distortion stuck lens
Standard magnification: about 36-230x (can be digitally enlarged to 500X)
Objective lens intertooth multiples: 0.7x,1x, 2x, 3เอ็กซ์, 4x, 4.5x
Ultra bright white LED light source adjustable control
5.Analysis and archiving
V3.2 version of the measurement software, including compression ratio, such as enhanced measurement tools.
6, the power supply
230 VAC, 50เฮิรตซ์, 600 ว
7.Volume and weight
น้ำหนัก: เกี่ยวกับ 30 กิโลกรัม
ปริมาณ: 500มม (l) x 350 มม. (ว) x 350 มม. (ชม)
8.Software Functions:
Compression ratio, number of wire harness, crimping height, crimping width, sectional area, support height, support Angle, burr width, burr height, ฯลฯ
Standard equipment configuration
1.One automatic cutting and grinding machine
2.5 million industrial camera 1 ชุด
3.One set of 0.7x-4.5x variable industrial lens with megapixel grade
4.1 set of adjustable bracket
5.LED adjustable surface light 1 ชุด
6.One special fixture for terminals
7.105*0.5mm ultra-thin imported cutting pieces 5 ชิ้นส่วน
30 pieces of Velcro abrasive paper
9.250ml One bottle of special cleaning solution for end face corrosion
10.5 packs of clean cotton swabs
11.One set of special measuring software for terminal section analysis
12.High precision optical glass correction block 1 ชิ้นส่วน
13.Replace 2 spanners for cutting pieces
14.One stainless steel scrap collection plate
15.Remove dust with a small brush
16.One software manual
17.Several terminal industry standards (electronic version)
