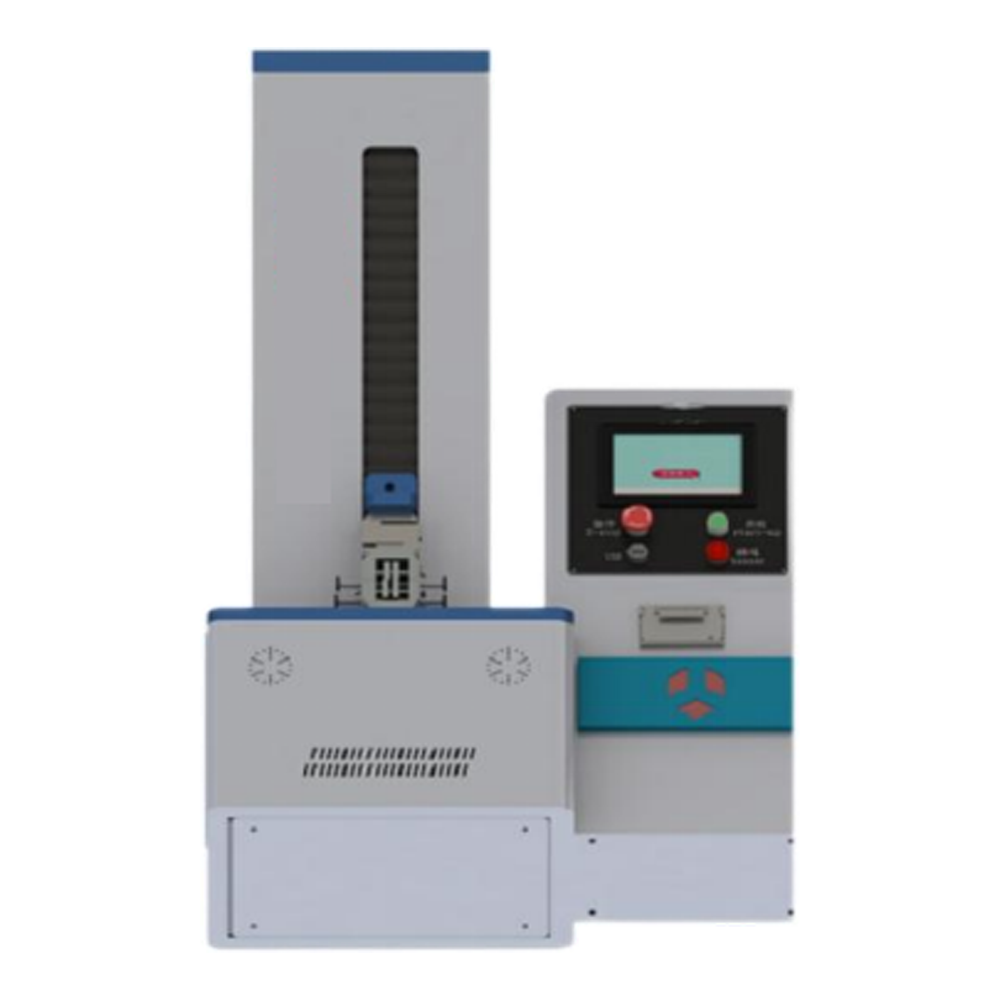

GA-3515 Intraocular lens tensile strength tester

คำอธิบาย

GA-3515 ISO11979-3 YY0290.3 Intraocular lens tensile strength tester

The IOL loop tensile strength tester is a test device for testing the tensile strength of iOL loops, with built-in high-precision sensor and complete test program, which fully meets the technical requirements of ISO11979-3 and YY0290.3.

Single loop tension test and double loop tension test function and own constant temperature tank, can meet the sample in 35℃ solution measurement.



Implementation of standard YY0290.3 and ISO11979-3 standards related content design.

Can be set to reach the set tension stop or test the breaking force function.

Horizontal design: the sample installation is convenient and fast, which greatly improves the operation convenience and ability

Reduce the residual stress to a minimum.

Automatic judgment function: breaking judgment, peak judgment, displacement record and printing function.

High precision sensor with sensitivity up to 0.0001N.

The clamp can hold a variety of different types of intraocular lens samples, including hard and soft.

Built-in weights can be checked or calibrated.

It has the function of single loop tension and double loop tension test.

Touch-type LCD screen, human-computer interaction at a glance.

The test results can be printed directly with a thermal printer.

It is equipped with a constant temperature water bath so that samples can be measured in 0-35℃ solution.

7 inch touch screen color display

PLC control system

Independently developed testing software

ช่วงการวัด: 0-20เอ็น

Set peak value: 0.25เอ็น

Measurement resolution: 0.002เอ็น

ความละเอียดการแสดงผล: 0.0001เอ็น

ความแม่นยำในการวัด: better than ±1%FS

Drawing speed: 1-6มม./นาที (set value 3mm/min)

Test stroke: 0-25มม (ปรับได้)

Host size: L680*W300*H340 mm

น้ำหนัก: About 30kg

แหล่งจ่ายไฟ: 220VAC 5A 50Hz

การใช้พลังงาน: <300ว.
