GA-1212-B Ball True Roundness Tester
- คำอธิบาย
- สอบถาม
คำอธิบาย

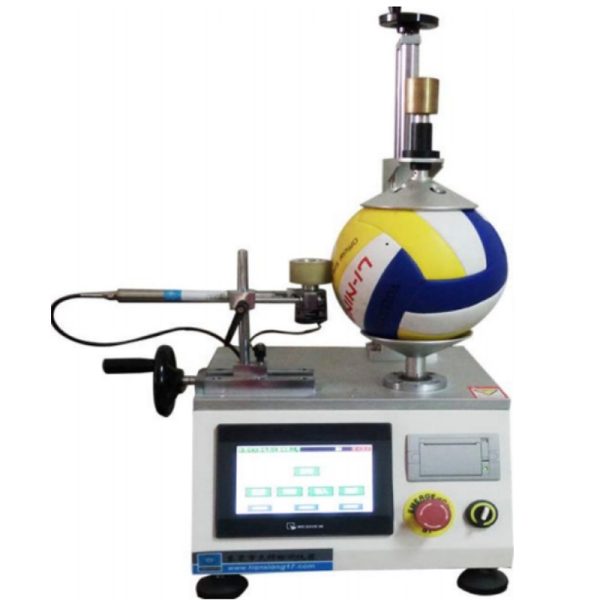

Ball True Roundness Tester
The testing machine is suitable for measuring the accuracy of the outer edge of basketball, football, volleyball and handball used in sports.
How it Works:
Using the ball roundness measuring machine to carry out three-dimensional detection of the ball, multi-point sampling :8 pieces of ball 32 คะแนน,18 pieces of ball Ball 40 คะแนน,32 pieces of ball 30 คะแนน. The sampled data is processed by PLC and the average circumference of the ball is calculated Length and maximum radius difference, the maximum radius difference of the sample represents roundness.
Using the ball roundness measuring machine to carry out three-dimensional detection of the ball, multi-point sampling :8 pieces of ball 32 คะแนน,18 pieces of ball Ball 40 คะแนน,32 pieces of ball 30 คะแนน. The sampled data is processed by PLC and the average circumference of the ball is calculated Length and maximum radius difference, the maximum radius difference of the sample represents roundness.
Ball True Roundness Tester
| Meet the standard | กิกะไบต์/ที 14625.1 |
| โหมดควบคุม | PLC+ touch screen display |
| Detection head repetition accuracy | 0.02มม |
| Value accuracy | 0.001มม |
| Ball holding force | < 7เอ็น |
| ช่วงการวัด | The diameter of the tested sample is 160~260mm |
| ปริมาณ (approx.) | 460 ´ 420´ 660mm |
| น้ำหนัก | About 30kg |
| แหล่งจ่ายไฟ | 1 #,ไฟ AC220V, 5ก |
| Standard equipment | 1 micro printer |
| 1 copy of manual and warranty 1 set of tools |
