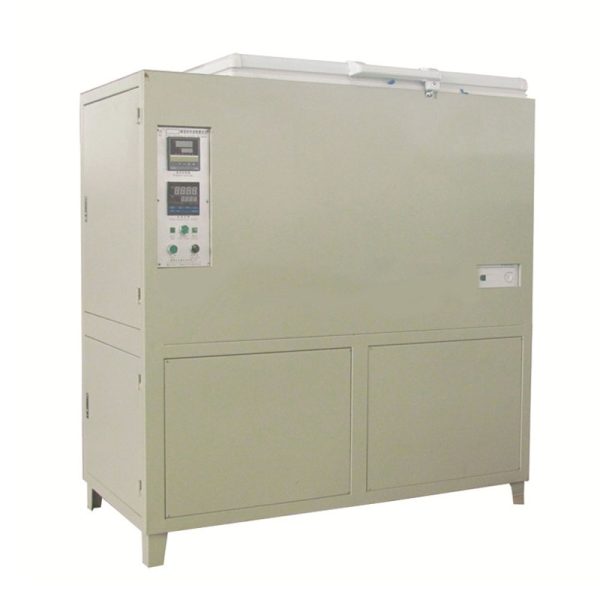

CLD Ceramic Antifreeze Tester
การแนะนำ
The instrument is suitable for measuring the frost resistance of ceramic brick special equipment, the instrument meets the requirements of GB/3810.12-2016 and ISO10545-12:1995 ceramic brick frost resistance.
พารามิเตอร์ทางเทคนิคหลัก
1, the test area operating temperature adjustment range: -10℃ – +10℃;
2, test area: 600×600×300 (มม);
3, temperature control accuracy: ±1°C;
5, test mode: according to the set number of tests automatically completed cycle.
6, แหล่งจ่ายไฟ: 220V ±10% 2.5kw;
สภาพการทำงาน
1, อุณหภูมิโดยรอบ: 0 ~ 40 ℃;
2, แหล่งจ่ายไฟ: 220วี, 50 เฮิรตซ์;
3, equipped with inlet water source, outlet pipe;
CLD Ceramic Antifreeze Tester
instrument composition
The instrument consists of three parts: freezing test chamber, inlet and drainage system, temperature control and automatic control system.
The working principle of the instrument is designed and realized according to the requirements of GB/3810.12-2016 national standard.
Set the number of test cycles (100 ครั้ง) for the electronic counter according to the test requirements. Put the sample into the test area and cover the cover. Refrigerate the test area to -5˚C for 15 นาที, turn on the inlet pump to spray water on the sample to increase the test temperature to +5˚C, hold for 15 นาที, count the counter once, set the electronic counter according to the test requirements for the number of test cycles (100 ครั้ง). Automatically according to the above cycle test, after the test alarm notice.
