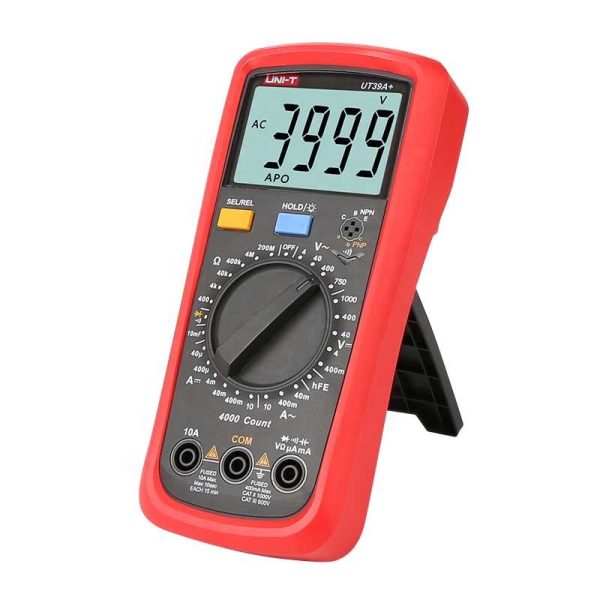

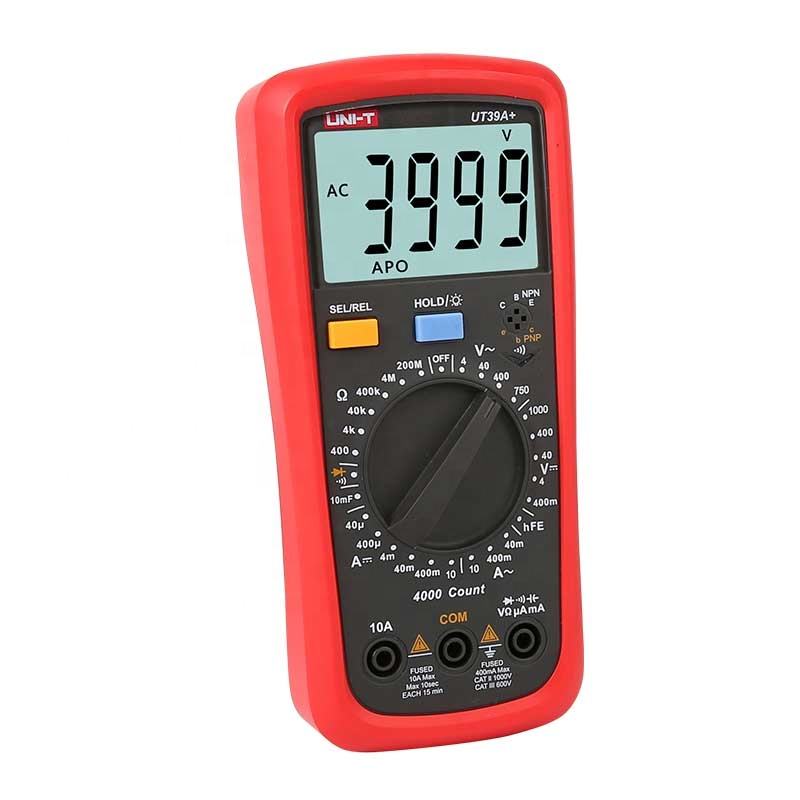

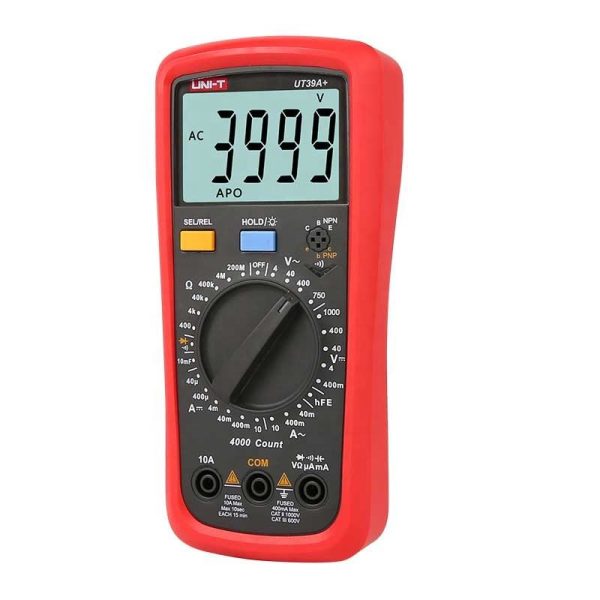

UNI-T UT39A+ High Precision Digital Display Multimeter UT39C+
- Opis
- Povpraševanje
Opis
Display Multimeter
1. 1000V DC voltage measurement
2. 750V AC voltage measurement
3. 10A DC/AC current measurement
4. Resistance/Capacitance
5. hFE
6. Diode/Continuity test
Display Multimeter
| Specifikacije | Razpon | UT39A+ | UT39C+ |
| enosmerna napetost (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) | ±(0.5%+5) |
| AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) | ±(0.8%+3) |
| DC current (A) | 40uA/400uA/4mA/40mA/400mA/10A | ±(0.8%+3) | |
| 400uA/400mA/10A | ±(0.8%+3) | ||
| AC tok (A) | 40mA/400mA/10A | ±(1%+2) | |
| 4mA/400mA/10A | ±(1%+2) | ||
| Odpornost (Oh) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | ±(0.8%+2) | |
| 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) | ||
| Capacitance (F) | 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF | ±(4%+5) | ±(4%+5) |
| Pogostost (Hz) | 10Hz~1MHz | ±(1%+4) | |
| Temperatura | -40℃~1000℃ | ±(1%+4) | |
| -40℉~1832℉ | ±(1.5%+5) | ||
| Lastnosti | |||
| Display count | 4000 | 4000 | |
| Transistor hFE | √ | √ | |
| NCV | √ | ||
| Diode | √ | √ | |
| Frequency response | 40Hz~400Hz | √ | √ |
| Range selection | Ročno | Ročno | |
| Continuity test | √ | √ | |
| Data hold | √ | √ | |
| Backlight | √ | √ | |
| Low battery indication | √ | √ | |
| Auto power off | √ | √ | |
| General Characteristics | |||
| Moč | 1.5V battery (R03)×2 | ||
| Zaslon | 56.5mm x 36mm | ||
| Product color | Red and grey | ||
| Product net weight | 330g | ||
| Product size | 175mm x 83mm x 53mm | ||
| Standardni dodatki | Test leads, temperaturna sonda (UT39C+) | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 30PCS | ||
| Standard carton measurement | 390mm x 355mm x 340mm | ||
| Standard carton gross weight | 14.5kg | ||
