Stormerjev viskozimeter STM-2T

BGD1600 Standard Oil BGD1600 Standard Oil
IVS200 Micro Automatic Viscometer

Kategorija:

Opis

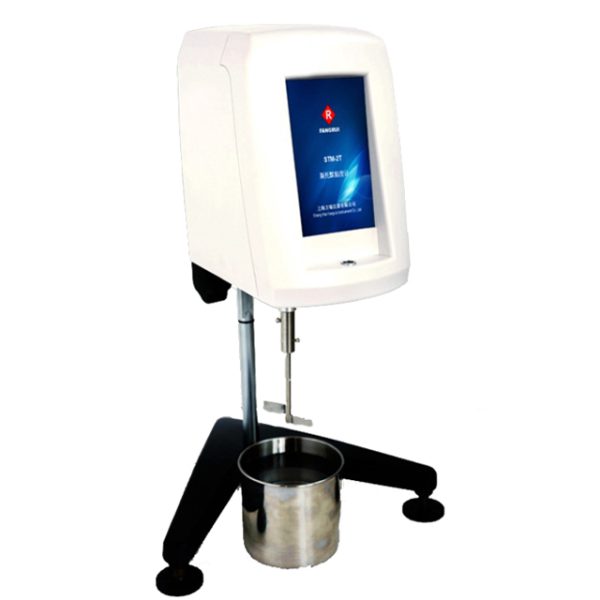

Stormerjev viskozimeter STM-2T

Uvod

The perfect integration of touch screen technology, high technology in a modern fashion to fast, accurate and convenient measurement of paint, paint or ink viscosity. Powerful, high degree of intelligence. 5 inch color touch screen full, vivid display of various parameters and working conditions. With rich content, convenient operation, visoka merilna natančnost, dobra ponovljivost, stable speed, obvious advantages of strong anti-jamming performance.

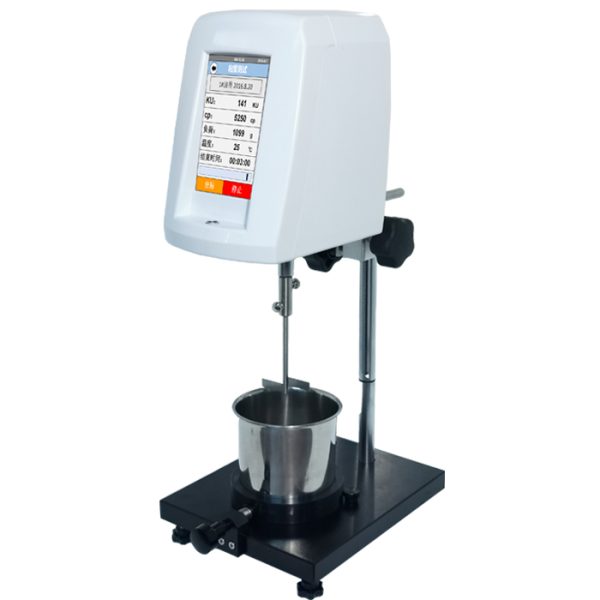

Stormerjev viskozimeter STM-2T

Main features：

1.The operation interface is simple and clear, and the viscosity test can be done quickly and conveniently through the creation of test program and data analysis;

2.Viscosity measurement accuracy: automatic calibration by computer, visoka natančnost, small error;

3.The display rich content: in addition to KU, G, CP of the three commonly used parameters, and temperature measurements for the full-scale value percentage (graphics), viscosity curve, range overflow alarm, timing, clock date, itd.;

4.Timing measurement: very practical. We measured the paint, črnilo, paint is a typical non Newtonian fluid, the viscosity and temperature on the outside (except the temperature rise, but also with the decrease of viscosity) measurement time length. The paint has ink and paint is shear thinning characteristics, the longer the time of measurement of viscosity the smaller, if the viscosity of samples of the same class are comparable, the measurement time must be the same;

5.USB vmesnik,insert U disk to copy measurement data directly（optional）

6.Self built 30 sets of test procedures: can be compiled, can quickly call;

7.Access to 30 sets of measurement data and curves; stored in the viscometer, the data include sample name, KU, G, CP value, measurement date, itd.;

8.The real-time display of the viscosity curve: on the screen at any time watch;

9.Can connect micro printer and computer: there are two interfaces, serial connection computer, parallel port connection printer;

10.The front level: the rotor is vertically placed in the sample, it is important to the accuracy of measurement data. Through the observation level in front of the three foot level, which can conveniently adjust the base level of the bubble will be adjusted to the middle position (the current domestic Stormer viscometer on the market are not level regulating device);

11.Bogata neobvezna dodatna oprema: temperaturna sonda, viscometer thermostat, Stalna temperaturna skodelica, tiskalnik, standardni vzorec viskoznosti, itd.；

STM-2T Stormer viscometer is widely used to determine the paint, črnilo, paint or other KU values to represent the viscosity of the industry, in line with international standards ASTM, D562 and GB9296 and other related standards.



Stormerjev viskozimeter STM-2T

Detailed TEhnično Strarametri:

model STM-2T
Control / način prikaza 5 inch color touch screen
speed（r/min） 200±0,1
merilno območje 40.2KU – 141.0KU

32g – 1099g

27 – 5250CP
Natančnost meritev ±3%
measurement reproducibility ±1.5%
Measuring container 1 pint
timing Flexible setting according to sample situation
temperature measurement Standardni vmesnik za temperaturo (need to match temperature probe)
Self built measurement procedure Can save 30 kompleti (including sample, čas merjenja, date)
Save the measurement results 30 nizi podatkov (including KU, G, cp, čas, curves, itd.) can be saved
viscograph Real time display viscosity curve
Print Data, curves can be printed (need to choose printers)
Podatkovni izhodni vmesnik USB vmesnik: insert U disk to copy data directly (izbirno)

vmesnik RS232: connectable computer

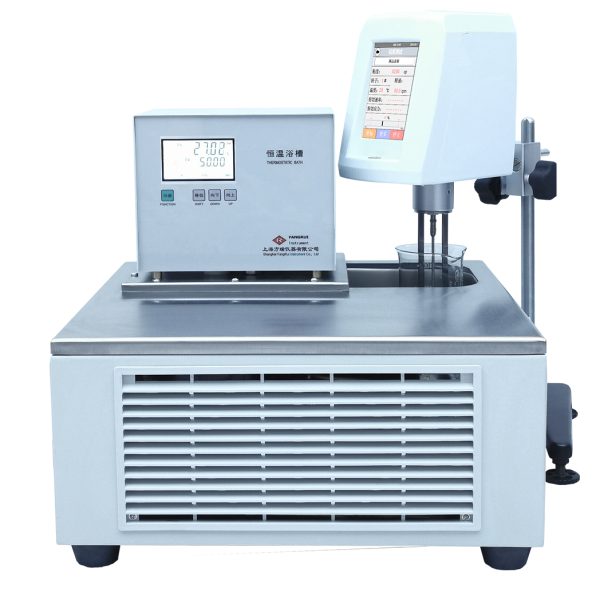

Thermostatic unit Možnosti (including special viscometer thermostatic bath, thermostatic cup)
delovno napajanje 110V / 60Hz or 220V / 50Hz
oris dimenzije 300 × 300 × 450（mm）
