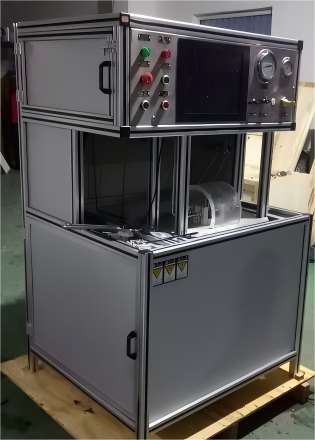

GA-E114 A

GA-E114 Valve Leakage Testing Machine

GA-E113 Water Valve Pressure Testing Equipment
GA-E115 Water Pump Performance Testing Device

Model:GA-E114

It meets customer requirements for shell testing, upper seal testing, and high-pressure water seal testing of various valves.

Kategorija:

Opis

GA-E114 Valve Leakage Testing Machine
jaz. Product Positioning:

The valve leakage testing machine is widely used in factories, parts manufacturing, vzdrževanje, kemična industrija, laboratories, schools, quality inspection units, and various automotive parts manufacturing units for the production, development, and research of valves. It meets customer requirements for shell testing, upper seal testing, and high-pressure water seal testing of various valves. During the testing process, leaks can be visually inspected, and it is suitable for factory inspection of various valves. With a maximum test pressure of 140 MPa, it boasts advantages such as convenient operation, stabilno delovanje, reliable quality, reasonable structure, and complete functions, fully complying with the national standards “ZBJ16006-90” (Testing and Inspection of Valves) in “GB/T13927-92” (Pressure Testing of General Industrial Valves).

GA-E114 Valve Leakage Testing Machine
II. Lastnosti:

1. Oil-free compression, ensuring the gas is not contaminated.
2. Uses independently developed software, combined with various control valves and sensors to achieve equipment control, and includes a pressure curve acquisition function.
3. Manual or computer control can be selected as needed.
4. Features power-off protection; the test automatically terminates and pressure is released after a power outage, maximizing operator safety.
5. Uses a booster pump, requiring no additional power equipment and producing no sparks, making it suitable for explosion-proof environments.
6. Safe and reliable connection, allowing for flexible disassembly.

GA-E114 Valve Leakage Testing Machine
III. Performance Parameters:

(1) Calibration Medium: Water, plin, oil.
(2) Maximum Air Consumption: 1.6 m³/min
(3) Pressure Test Range: 0-140 MPa, the corresponding pressure can be selected according to customer needs.
(4) Driving Air Pressure Range: 0.1-0.69 MPa; and the output pressure is directly proportional to the driving air pressure.

GA-E114 Valve Leakage Testing Machine
IV. Typical Applications:

Valve seal testing, used for gate valves, ball valves, butterfly valves, welded valves, itd.
Pressure resistance testing of hydraulic valves, coal mine hydraulic valves,
Pressure resistance testing of excavator hydraulic valves.
