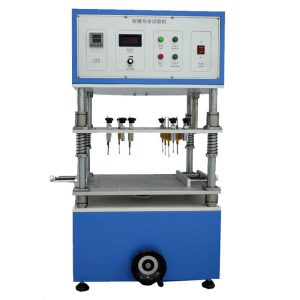

GA-3407 Keyboard Key Life Testing Machine

Opis

Keyboard Key Life Testing Machine

Brief introduction:

This machine can be used to test the durability of the buttons of notebook computer, mobile phone, palm computer and other buttons and switches.

Can test several products at the same time (each product can be multi-point test), and each button can set different pressure and different high and low pressure.

Keyboard Key Life Testing Machine

Technical Specification

Action stroke 10mm (fiksno)

Workpiece height adjustment range 100mm

The clamping capacity of the fixture is 400×300mm

The mounting range of the probe is 350×250mm

The number of tests is 999,999 ×10

The test speed is 60-300Rpm

Load range 50-450g

The probe height is adjusted by 15mm

The number of probes is 15

Minimum spacing between two probes

10mm in the X direction and 20mm in the Y direction

Exterior size 520×420×980mm

Weight 110kg

Voltage AC 220V
