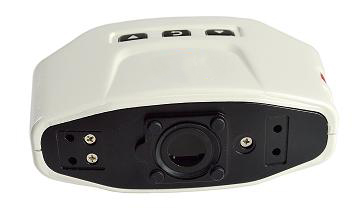

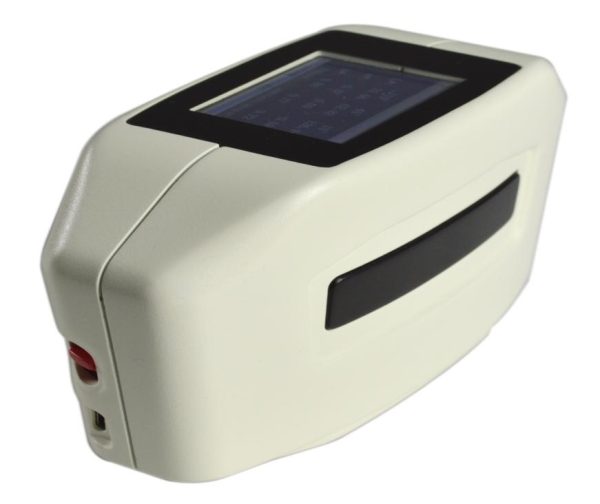

CS-390 Three Angles Spectrophotometer

Uvod

Three angles color spectrophotometer CS-390/392 is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 in 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.

CS-390 Three Angles Spectrophotometer

Instrument Advantages

  • It changes color measurement into a simpler work
  • Fast to get paint formula (only suitable for car paint manufacturer)
  • Simple interface and easy operation
  • Instrument is with rubber mat to prevent from sliding during measurement
  • Small measurement aperture for curve material measurement
  • Optional blue tooth function to connect with mobile phone and other devices.



CS-390 Three Angles Spectrophotometer

Technical Data and Price List

Model CS-390 CS-392
Illumination Angle 45°
Measurement Angles 15°, 45°,110° Color Measurement Angle: 15°, 45°,110°

Graininess Measure Angle: Integrating Sphere Diffuse
Parametri L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000 Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Graininess Lever (G)
Wavelength Range 400-700nm
Wavelength Pitch 10nm
Reflectance Range 0-500%
Resolucija 0.01%
Vir svetlobe LED
Measurement Time < 2s < 6s
Ponovljivost dE≤0.05 Max. measure white tile, after calibration

(measured 30 x at 5-second intervals)
Inter-instrument Agreement dE≤0.5 Average measurement of BCRA II color tiles
Measurement Aperture Diameter 17mm
Viewing Angles 2°/ 10°
Illuminants A,C,D50,D65, F2, F7, F11, F12
Light Source Life time 10 leta, ≥1 million times
Vmesnik USB or custom made
Instrument Size 145x58x99mm
Instrument Weight 476g
Moč 3.7V/3000mAh rechargeable lithium battery
Temperatura 0-40℃ (32-104 F)
Storage Temperature -20-50℃ (-4-122 F)
