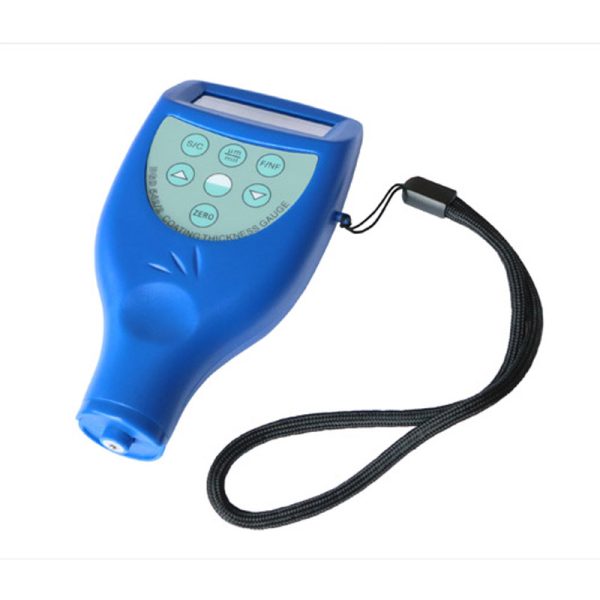

BGD 542 Precise Dry Film Thickness Gauge
Precise Dry Film Thickness Gauge
Using magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non magnetic coatings such as paints, zinc etc. on steel（F：ferrous probe）, and insulating materials on non-ferrous substrates（FN：non-ferrous.）. The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation
Precise Dry Film Thickness Gauge
Using magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non magnetic coatings such as paints, zinc etc. on steel（F：ferrous probe）, and insulating materials on non-ferrous substrates（FN：non-ferrous.）. The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
BGD 542 Precise Dry Film Thickness Gauge
Biuged offer many different types of thickness Gauges to meet with different clients’ request under different conditions.
BGD 542 Precise Dry Film Thickness Gauge
| Ordering Information→
Specifikacije↓ |
BGD 542/1 | BGD 542/2 | BGD 543/1 | BGD 543/2 | |
| Vrsta | In built probes | With separate probes | |||
| Operating principle | Only F | F&NF | Only F | F&NF | |
| Merilno območje | 0-1250μm/0-50mil（Also can ask for larger range） | ||||
| Resolucija | 0.1/1 | ||||
| Natančnost | ±1-3% or ±2.5μm | ||||
| Min. radius work piece | F：Convex 1.5mm/Concave 25mm；
N： Convex 3mm/Concave 50mm |
||||
| Min. measuring area | 6mm2 | ||||
| Min. sample thickness | 0.3mm | ||||
| Metric/ imperial | Convertible | ||||
| Napajanje | 4×1.5V AA Battery | ||||
| Battery indicator | Low battery indicator | ||||
| Pogoji delovanja | 0-40℃；10-90%RH | ||||
| Dimenzija | 126×65×27mm | ||||
| Utež | 81g | ||||
| Standard delivery | Glavna enota | √ | √ | √ | √ |
| F type probe | √ | √ | √ | √ | |
| N type probe | √ | √ | |||
| F calibration base set | √ | √ | √ | √ | |
| N calibration base set | √ | √ | |||
| Calibration foil set | √ | √ | √ | √ | |
| Carrying case | √ | √ | √ | √ | |
| Instruction manual | √ | √ | √ | √ | |
| Izbirni dodatki | USB kabel，Programska oprema，Adapter for blue tooth | ||||
BGD 542 Precise Dry Film Thickness Gauge
Precise Dry Film Thickness Gauge
Using magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non magnetic coatings such as paints, zinc etc. on steel（F：ferrous probe）, and insulating materials on non-ferrous substrates（FN：non-ferrous.）. The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
BGD 542 Precise Dry Film Thickness Gauge
Biuged offer many different types of thickness Gauges to meet with different clients’ request under different conditions.
