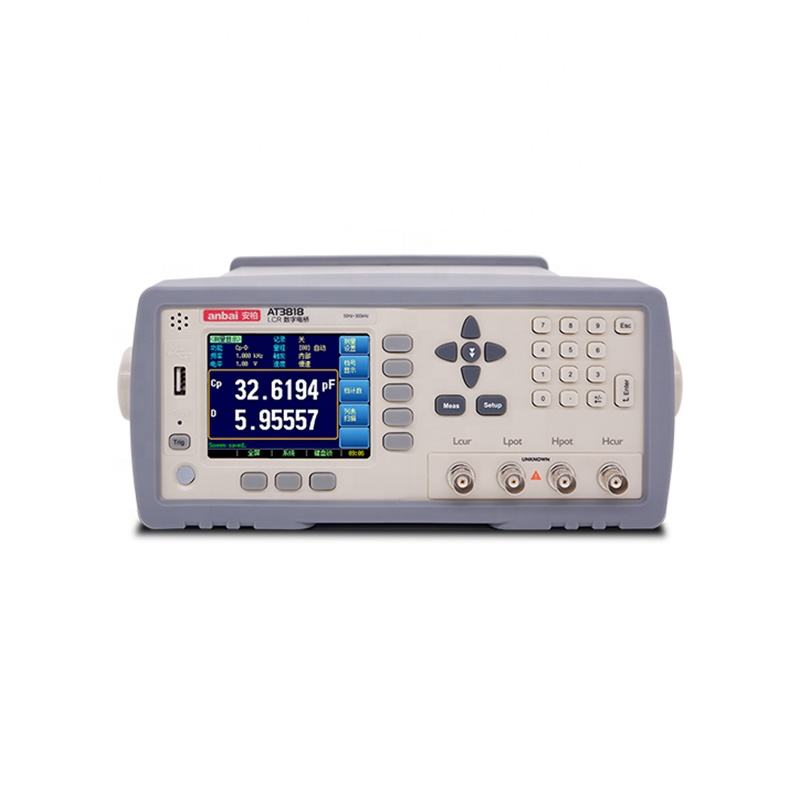

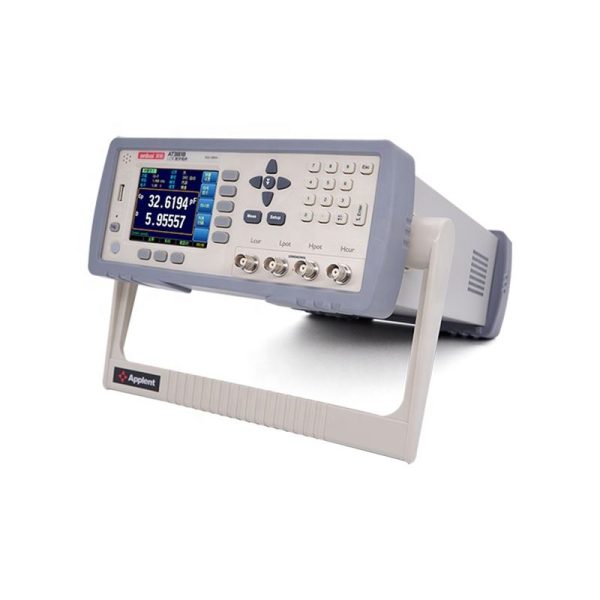

Anbai AT3818 LCR Precision Digital LCR Tester

SOSIN-8/20 Portable Surge Generator SOSIN-8/20 Portable Surge Generator
Anbai AT2811 Digital Bridge Meter

Kategorija:

Opis

LCR Tester

Descriptions

The newly upgraded AT38xx series adopt true color TFT-LCD display and full Chinese operation interface (configurable into English ). Displayed in large fonts, readings are more intuitive, used for laboratory quality control, feed inspection and component sorting. Test signal level 0.01Vrms ~ 2.00Vrms (10mV step), (add DCR measurement and internal DC bias (DC BIAS, ±2.5V) compared to AT28xx series)

AT381xx series can test the 4 parameters of component at the same time, each parameter can be arbitrarily configured. The newly improved instrument realizes display of main and auxiliary four parameters all 6 števke, can scan 10 kinds of frequency or level list, it can also be used for 3 groups frequency be corrected to improve accuracy. Built-in comparator, through HANDLER interface combined with PLC to complete the automatic sorting of components.
LCR Tester
Tehnični parameter
SPECIFICATIONS

AT3818 Precision LCR Meter
Parametri

Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg, DCR
Monitor Parameters

Z, D, Q, θr, d, R, X, G, B, Y, Vac, Iac, Δ, D %
Osnovna natančnost 0.05% ± 5 dgt
Pogostost 10Hz – 300kHz (continuous frequency, frequency resolution 0.001Hz)
Zaslon Razpon L: 0.00001mH-999999H C: 0.00001pF – 999999mF R,Z: 0.00001W – 99.9999MW D, 0.00001 - 9.99999 Q: 0.00001 - 99999.9 D%: -999999% – 999999%

q(deg): -179.999° -179.999° q(rad):-3.14159 - 3.14159 DCR: 0.00001Ω ~ 99.9999MΩ
Source Resistance 30Oh, 50Oh, 100Oh
Razpon

Samodejno, Ročno, and nominal, 9 ranges
Display Max 6 digital, principle parameter: 999999; sub parameter:999999; monitor parameter: 999999
Signal Level

0.01V – 2.00V (10mV Step)
Speed 40t/s, 10t/s, 3 t/s(with average function)
Primerjalnik

14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Maks – 999999
List Test

10 group frequency and level scanning measurement
Prilagoditev

Open & Short circuit sweep frequency reset, 3 point frequency reset and load calibration.
Files

10 group files to save user’s setting, 1 group to save system data real-time
Vmesnik RS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 podatke)
drugi LCR Automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD Display
GENERAL FEATURES
Napajanje

Napetost: 90V AC – 250V AC Frequency: 50Hz – 60Hz Max Power: 20VA
Velikost

264mm (širina)x107mm(višina)x350mm(depth) 4kg
ORDERING INFORMATION
Dodatki ATL501E: Four-terminal Kelvin test box

ATL508A: SMD tweezers test clip

ATL601: Test fixture

ATL600: Short-circuit slice

ATL108: RS232 Communication cable

AC Power Cord
Možnosti ATL608: SMD patch fixture

ATL508: SMD tweezers test clip

ATS2818: Data acquisition software
