Описание
Цифровой мультиметр
Обзор продукта
The SDM3055/SDM3055-SC is a digital multimeter designed with 5 ½
digits readings resolution and dual-display, especially fitting to the needs
of high-precision, multifunction and automatic measurement.
User-Friendly Design
• 4.3” TFT-LCD, 480*272 отображать
• Supports dual-display, Chinese and English Menu
• Built-in front panel accessible help system
• File management ( support for U-disc and local storage )
Цифровой мультиметр
Математическая функция

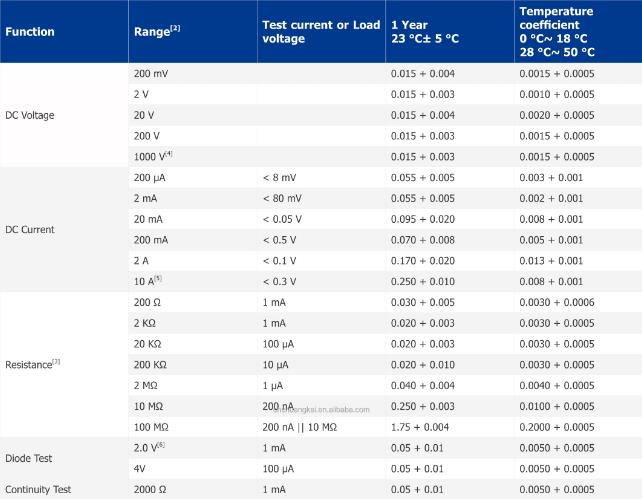

Basic Measurement Function
• DC Voltage: 200 мВ – 1000 В
• DC Current: 200 мкА – 10 А
• AC Voltage: True-RMS, 200 мВ – 750 В
• AC Current: True-RMS, 20 мА – 10 А
• 2/4-Wire Resistance: 200 Ой – 100 МОм
• Capacitance: 2 нФ – 10000 μF
• Continuity Test: Range is fixed at 2 кОм
• Diode Test: Adjustable range is 0 – 4В
• Frequency Measurement: 20 Гц – 1 МГц
• Period Measurement: 1 мкс – 0.05 с
• Temperature: Support for TC and RTD sensor
• Max, Мин, Средний, Standard Deviation,
dBm/dB,Relative Measurement, Pass/Fail Histogram, TrendChat
• Real 5½ digits readings resolution ( 240, 000 имеет значение )
• Up to 150 rdgs/s measurement speed
• True-RMS AC Voltage and AC Current measuring
• 1 Gb Nand flash size, Mass storage configuration files and data files
• Built-in cold terminal compensation for thermocouple temperature measurements
• With easy, convenient and flexible PC software: EasyDMM
• standard interfaces: USB-хост, локальная сеть ( Optional Accessories USB-GPIB Adapter )
• Scanner Card SC1016 ( Only for SDM3055-SC )
• Support remote control operation via SCPI commands.
Compatible with commands of main stream multimeters
Application fields
• Research Laboratory
• Development Laboratory
• Repair and Maintenance
• Calibration LaboratoryGene
• Automatic Production Test
• General bench-top use
