Описание

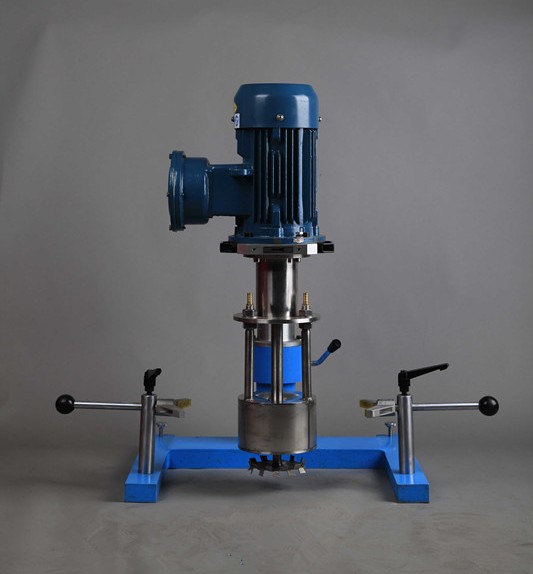

LSM Корзинчатая Песчаная Мельница
Обзор:
Basket type sand mill is used for rapid dispersion of coatings, краски, inks and other chemical laboratories. The sanding basket and barrel are equipped with cooling interlayers to help control the grinding temperature and prevent overheating.

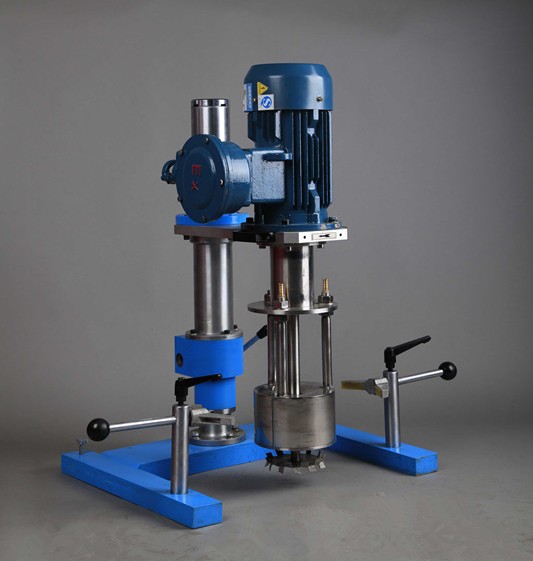

LSM Корзинчатая Песчаная Мельница
Параметр
| Модель | LSM-2.2D | LSM-2.2B | LSM-370 | LSM-750A | |
| Motor | Модель | brushless direct current | Ac explosion protection | brushless direct current | AC variable frequency |
| Власть | 2.2КВт | 2.2КВт | 550Вт | 750Вт | |
| speed of mainshaft | 50~4000rpm | 0~4000rpm | 50~4000rpm | 0~4000rpm | |
| go up and down | Manner | электрический | manual operation | manual operation | manual operation |
| route | 350мм | 400мм | 240мм | 200мм | |
| sanding disc | Φ107mm | Φ90mm | Φ44mm | Φ68mm | |
| dispersion impeller | Φ120 | Φ120mm | Φ60mm | Φ60mm | |
| zirconium bead | Φ1.4~Φ1.6mm | Φ1.4~Φ1.6mm | Φ1.4~Φ1.6mm | Φ1.8~Φ2mm | |
| Dispensing barrel | 10~30L | 10~30L | 1.25л | 2.9л | |
| Источник питания | 220V 50Hz/60Hz | 380V 50Hz/60Hz | 220V 50Hz/60Hz | 220V 50Hz/60Hz | |
| граничный размер | 580×500×850mm | 600×550×850mm | 450×420×550mm | 400×340×650mm | |
| размер упаковки | 650×570×1010mm | 650×570×1010mm | 580×540×610mm | 580×540×610mm | |
| Масса | 60кг | 96кг | 22кг | 29кг | |
| gross | 87 | 132 | 28.9+4.1（charging barrel） | 35.9+7.3（charging barrel） | |
