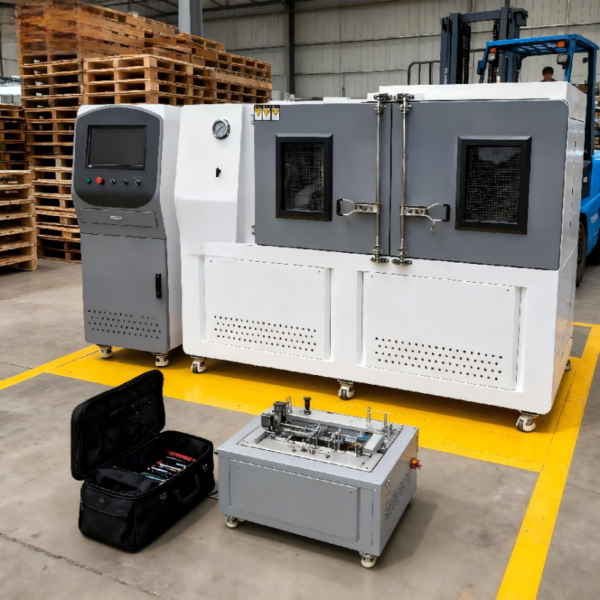

GA-Y110 Fully Automatic Oil Pressure Pulse Tester
- Описание
- Расследование
Описание
Приложения:
This fully automatic oil pulse tester utilizes computer software control, enabling unmanned operation. Dual pressure relief features, including automatic and manual pressure relief, along with overpressure, timeout, and leak alarms, ensure safety and reliability. Equipped with various abnormality detection functions and automatic control, it is suitable for pulse pressure testing of various products, including hoses, radiators, heat exchangers, air filter hoses, turbocharger hoses, engineering hydraulic hoses, aviation hoses and manifolds, other rigid pipes and fittings, as well as automotive brake pumps, клапаны, and fittings. Compared to water pressure, oil pressure allows for high-temperature testing of media.
Basic Parameters:
1. A clear image of the induced tensile fracture is obtained.
2. Test Pressure: 0-60 MPa (регулируемый)
3. Pressure Control Accuracy: 0.01 MPa (depending on the range)
4. Pulse Frequency: 5-120 beats/minute (регулируемый)
5. Pulse Pressure Waveform: Basic square wave (or trapezoidal wave), with pulse width adjustment available to meet your company’s requirements. 6. Test medium temperature: Room temperature to 160°C (согласно требованиям заказчика)
7. Test for sealing performance, performed at least 1 million times (continuously), with no leakage or deformation.
8. Control method: Computer-controlled, using servo or proportional technology.
| Product Name | Fully Automatic Oil Pressure Pulse Tester | ||
| Product Model | GA-Y110 | ||
| Basic Principle | This machine uses a pulse generator pump to generate pulse pressure, and pressure control is achieved through computer proportional or servo control. | ||
| Performance Parameters | Test pressure | 0-60 MPa (pressure selectable) | |
| Pressure control accuracy | Test pressure range: +2% of upper limit, -1% of lower limit | ||
| Pressure resolution | 0.01 MPa (depending on test range) | ||
| Pulse frequency | 5-120 strokes/min | ||
| Test medium | Water or hydraulic oil | ||
| Specimen mounting method | Manual or automatic clamping | ||
| Structural composition | Circulation system, pressure control system, workpiece mounting device, computer control | ||
| Application range | Hoses, flexible pipes, radiators, containers, и т. д.. | ||
