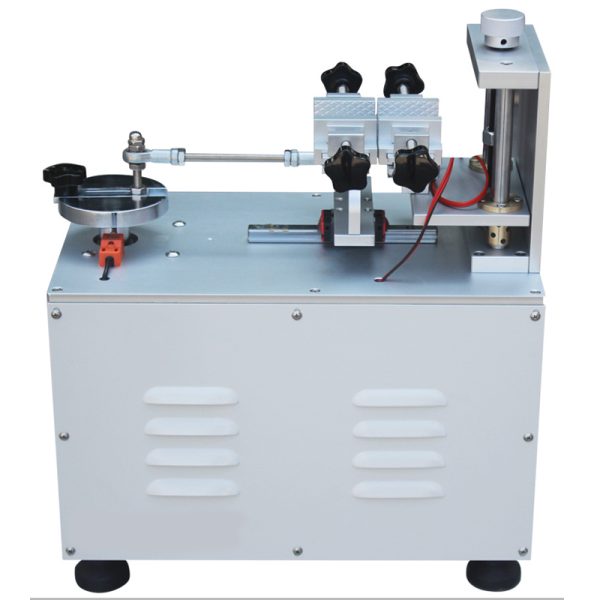

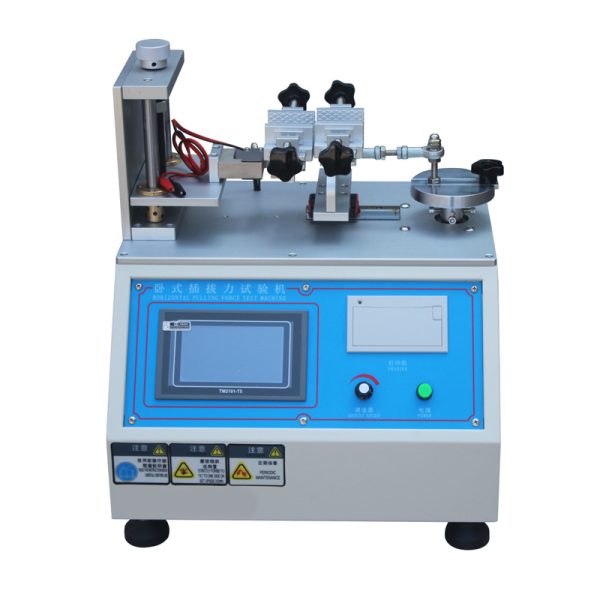

GA-5620 Insertion and Withdrawal Force Tester

Описание

GA-5620 Insertion and Withdrawal Force Tester

Приложение

Suitable for all kinds of mobile phone and computer peripheral connector insertion force and insertion life test, stable and accurate insertion life and insertion force test.

GA-5620 Insertion and Withdrawal Force Tester

Введение

This machine is suitable for a variety of connector plug and pull test, using embedded microcomputer measurement and control technology, can simultaneously display insertion force, pull out force, real-time force value, and has the number of Settings, speed stroke adjustable, and display speed value, automatic zero, unit conversion. Rotary eccentric power design, so that the test speed and test stroke is not related, long and short stroke connectors, the test is just as fast. It can be described as the most cost-effective plug and pull life testing machine on the market.

GA-5620 Insertion and Withdrawal Force Tester

Параметр

1. With overload load setting automatic stop alarm function
2. With automatic saving function, the maximum can automatically save ten points, and obtain the average value
3. Use a list to test the saved test data.
4. Users with an administrator password can change the startup password.
5. Use the software to set the load value.
6. Use all Chinese prompts to set internal functions, простой в эксплуатации.
7. Диапазон частот: 0~999999
8. Transmission mode: rotating eccentric wheel
9. Режим отображения: large-screen LCD real-time display
10. Inserting and pulling force range: 0~50kg
11. Minimum insertion and extraction force resolution: 0.01кг
12. Stroke adjustment example: 0~60MM
13. Тест скорости: 10~60 (цифровой дисплей)
14. Conversion of two units: Н, КГ, IB
15. Размер машины: 550(Д) * 470(Вт) * 450(ЧАС)мм
16. Рабочее напряжение: single-phase 220V
17. Main circuit fuse: 2А
