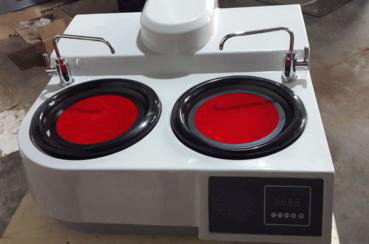

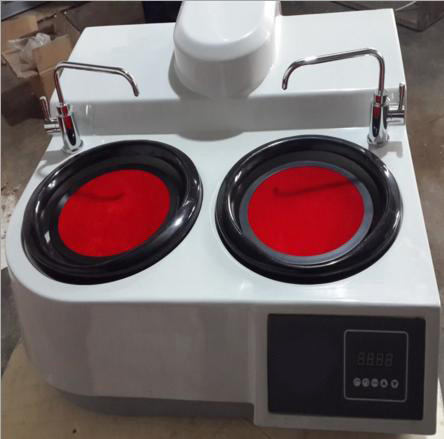

GA-2408-B Образец шлифовально-полировального станка

Описание

GA-2408-B Образец шлифовально-полировального станка

Обзор продукта:

2408-B type inorganic variable speed grinding and polishing machine, which is A combination of frequency converter and YS7146 variable frequency motor as the power source, is transferred to the main shaft of the mounting plate through the type A triangle belt.

By making the disk turn, power switch and frequency conversion operation button, various speed choices can be realized. In the operation, the speed displayed by the frequency converter is the speed of the disk drive, and the speed of the grinding wheel is 1/2 of that of the disk drive.

The operation is very convenient.



тыse and characteristics of grinding and polishing machine:

In the preparation of petrographic specimens and metallographic specimens, grinding and polishing of samples are two indispensable processes, usually completed by two kinds of equipment, namely pre-grinding machine and polishing machine.

In order to meet the needs of the development of science and technology and industry in China, and to meet various requirements of users, our company has designed and manufactured a new mp-2b inorganic variable speed grinding machine to prepare samples in two processes

It is completed by a single device. The coarse grinding, тонкое измельчение, dry grinding, wet grinding and polishing of various samples can be completed by simply selecting different rotating speeds.The diameter of the grinding disc is greater than that of the machine

Domestic similar products can increase the effective working surface by 20-30%, which can meet the preparation requirements of different materials.It can also improve the quality and preparation efficiency of samples, and is a relatively perfect and ideal equipment for making samples in metallography.



GA-2408-B Образец шлифовально-полировального станка

Основные технические индикаторы:

Модель: GA-2408-B

Playful sandpaper diameter: 200мм

The diameter of the playful disc is 220mm

Cycle speed: 50~1000rpm

Throughout motor: YS7146 variable frequency motor, 550W three-phase 220V 0~50Hz

Размеры: 730 Икс 650 x 300mm

Масса:55кг
