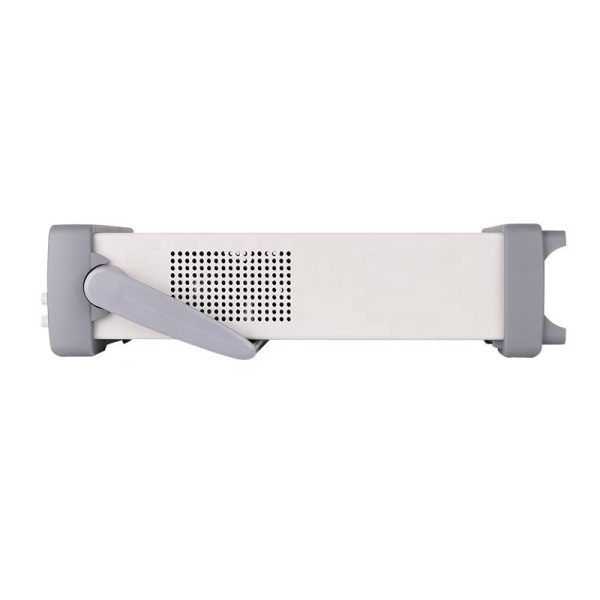

TH6202 Programmable Linear DC Power Supply
- Descriere
- Anchetă
Descriere
DC Power Supply
Caracteristici
Fresh and simple system settings with Chinese and English
operation interfaces
High resolution: 24-bit color 4.3-inch TFTLCD, rezoluţie: 480 x 272
Linear design and double range output
High precision and high stability, low ripple and low noise

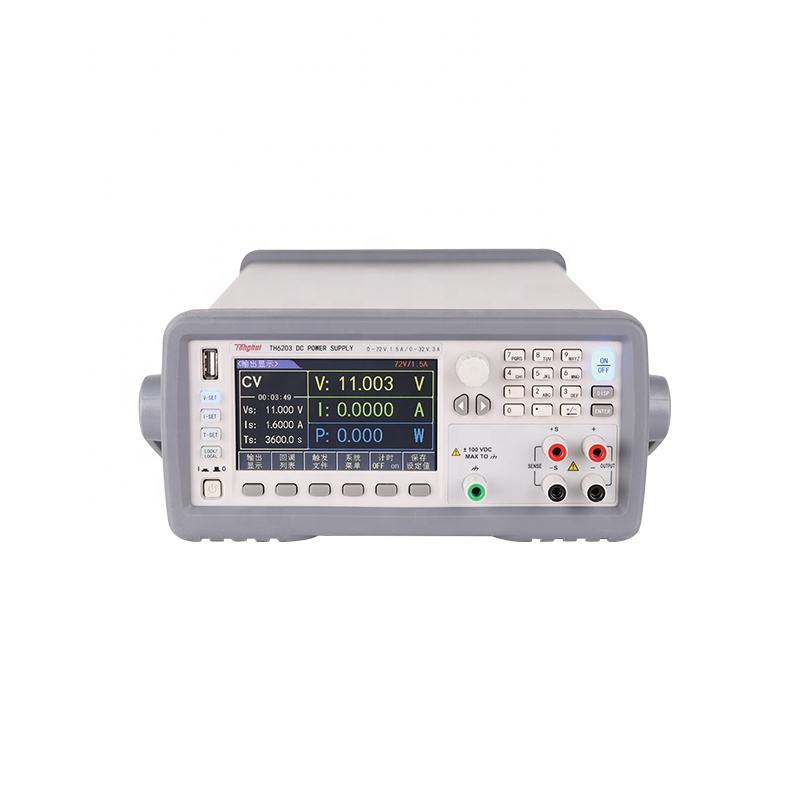

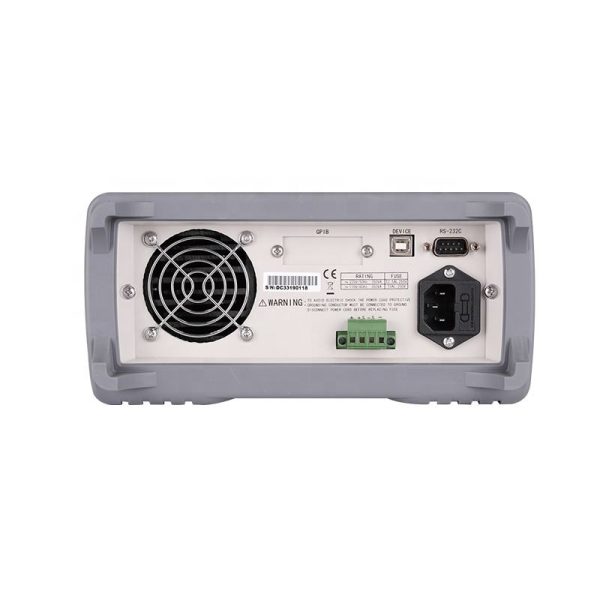

1/2 2U super mini size and output and sampling terminal on
the front and rear panel
Powerful programming ability
100 groups of setting state memory saving and calling
10 trigger files, 100 test sequences per file, loop output of
programming
Timing output: timp (0.1-99999.9s)
Use rotary knob and numeric keyboard to set the voltage,
current and output time
Panel function button with backlight display
Remote measurement function, compensation for line voltage drop
Output control switch
Copy screen function
Over voltage, over current protection
Intelligent temperature control fan
Support standard SCPI communication protocol
Software monitoring via computer
Upgrade instrument firmware via USB flash
DC Power Supply
Aplicație
R & D and design verification common test
Production line table routine testing and maintenance
Automated device integration testing
| Model | TH6201 | TH6202 | TH6203 | TH6212 | TH6213 | |||||||
| Rated Output (0℃-40℃) | Channel/Range | Range1 | Range2 | Range1 | Range2 | Range1 | Range2 | Range1 | Range2 | Range1 | Range2 | |
| Voltaj | 0-20V | 0-8V | 0-32V | 0-15V | 0-72V | 0-32V | 0-32V | 0-15V | 0-72V | 0-32V | ||
| Actual | 0-5A | 0-10A | 0-3A | 0-6A | 0-1.5A | 0-3A | 0-6A | 0-12A | 0-3A | 0-6A | ||
| Putere | 100W | 80W | 96W | 90W | 108W | 96W | 192W | 180W | 216W | 192W | ||
| Load Regulation± (% Ieșire + Bias) | Voltaj | ≤0.01% + 4mV | ≤0.01% + 3mV | ≤0.01% + 3mV | ≤0.01% + 6mV | ≤0.01% + 5mV | ||||||
| Actual | ≤0.01% + 2mA | ≤0.01% + 5mA | ≤0.01% + 4mA | |||||||||
| Power Regulation± (% Ieșire + Bias) | Voltaj | ≤0.01% + 4mV | ≤0.01% + 3mV | ≤0.01% + 3mV | ≤0.01% + 6mV | ≤0.01% + 5mV | ||||||
| Actual | ≤0.01% + 2mA | ≤0.01% + 5mA | ≤0.01% + 4mA | |||||||||
| Programming Resolution | Voltaj | 1mV | ||||||||||
| Actual | 0.1mA | |||||||||||
| Read-back Value Resolution | Voltaj | 1mV | ||||||||||
| Actual | 0.1mA | |||||||||||
| Year Accuracy(25℃± 5℃)± (% Reading +Bias) | Programming | Voltaj | ≤0.04% + 8mV | |||||||||
| Actual | ≤0.1% + 5mA | |||||||||||
| Readback | Voltaj | ≤0.04% + 8mV | ||||||||||
| Actual | ≤0.1% + 5mA | |||||||||||
| Ripple and Noise (20Hz-20MHz) | Normal Mode Voltage | ≤3mVp-p/1mVrms | ≤4mVpp/1mVrms | ≤3mVp-p/1mVrms | ≤4mVp-p/1mVrms | |||||||
| Normal Mode Current | <9mArms | <7mArms | <6mArms | <10mArms | <8mArms | |||||||
| Common Mode Current | <1.5µArms | |||||||||||
| Transient Response | <50uS (the time required for the output returns within 75mV when the output current changes from full scale to half or from half to full scale) | <50uS (the time required for the output returns within 120mV when the output current changes from full scale to half or from half to full scale) | <50uS (the time required for the output returns within 75mV when the output current changes from full scale to half or from half to full scale) | |||||||||
| Rise Time (10% — 90%) | <90Domnișoară | <120Domnișoară | <180Domnișoară | |||||||||
| Fall Time (90% — 10%) | <150Domnișoară | <200Domnișoară | <250Domnișoară | <350Domnișoară | <250Domnișoară | |||||||
| Series and Parallel Set Value Accuracy | Voltaj | —— | ||||||||||
| Actual | —— | |||||||||||
| Temporizator | 0.1 ~ 99999.9 secunde | |||||||||||
| Memorie | 10 groups of trigger output, 100 steps for each group,100 sets of setting memory | |||||||||||
