Descriere

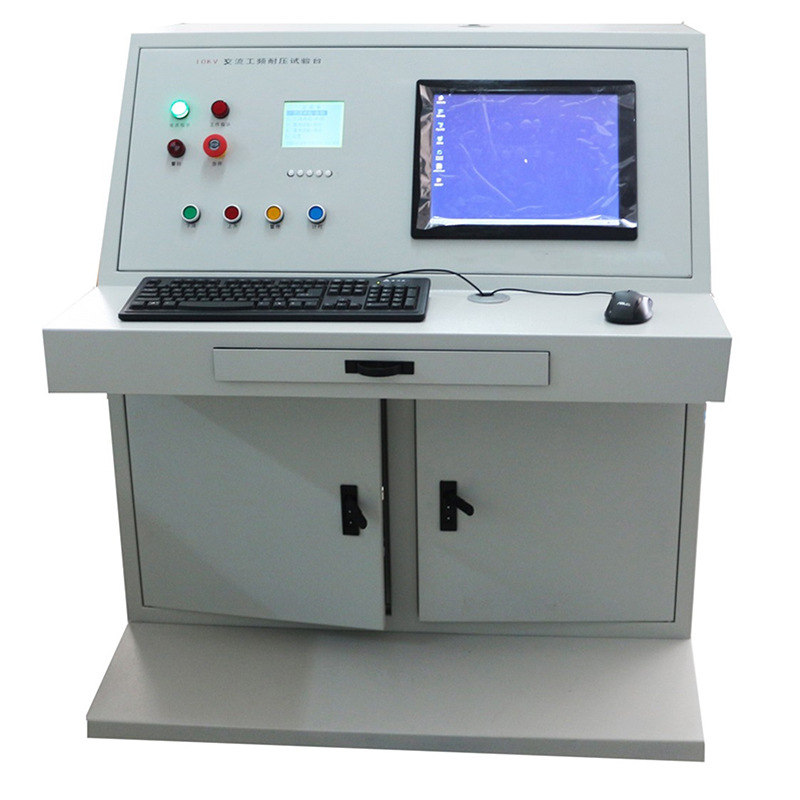

breakdown Voltage Tester
KDYD-JC series voltage breakdown tester is mainly suitable for solid insulating materials (ca: plastic, cauciuc, laminated materials, film, resin, mica, ceramică, sticlă, insulating paint and other insulating materials and insulating parts) in the power frequency voltage or DC voltage breakdown strength and voltage resistance test. It is widely used in power electronics industry, machinery industry ministry, research institute, military research, insulation material production unit of high voltage breakdown test and design and manufacture.
breakdown Voltage Tester
Product characteristics
1, the device for the touch screen operation control.
2, if you need to perform curve analysis, you can be equipped with a computer, only data and curve recording function, no equipment control, to avoid the test personnel in the computer and equipment alternating operation, more humane.
3, the equipment has the function of memory of test parameters, the same test conditions do not need to be set each test, and the power will still remember the last test set parameters.
4, the test interface is simple and clear, and is equipped with schematic curve description, different parameters, different curve trends, easy to understand.
5, the control panel is simple, the function is clearly marked, operatia este simpla.
6, can record and display 10 test records at the same time, convenient for comparative analysis of test data. Data can be discarded in real time. 7, the equipment test interface adopts the real-time display mode, which is more convenient to watch the test process.
8, the equipment has a safety warning, the test can not start when the test chamber door is not closed, and a warning will pop up, and the warning will pop up at the full degree (adică: no output of the high voltage transformer), and if the test is opened during the test, the test will automatically end.
9. The equipment is equipped with three-color alarm. (opțional)
breakdown Voltage Tester
| Model number | 5KV | 10KV | 20KV | 50KV | 100KV | 150KV |
| Tensiune de intrare | ||||||
| Tensiune de ieșire | AC: 0~5kV:
DC: 0~5kV |
AC: 0~10kV:DC: 0~10kV | AC: 0~20kVDC: 0~ 20kV | AC: 0~50kV:DC:0~50kV | AC:0~100kV:DC:0~100kV | AC:0~150kV:DC:0~150kV |
| Output power | 0.5 kVA | 1 kVA | 2kVA | 3kVA | 10kVA | 15kVA |
| Interval de măsurare | AC: 0.05~5kV:DC: 0~5kv | AC: 0.5~10kV:DC: 0.5-10kV | AC:1~20kV:DC: 1~20kV | AC: 1 bark ~50kV:DC: 1~50kV | AC1~100kV:DC1~100kV | AC1~150kV:DC1~150kV |
| Measurement error | ≤2% | |||||
| Boost rate | 0.025kV/s~ 0.5/s | 0.05kV/s~ 1kV/s | 0. 1kV/ S-2kV /s | 0.20 kV/s ~ 5 kV/s | 0.02kV/s~ 10kV/s | 1 kV/s ~10kV/s |
| Withstand voltage time | 0~4H(no load) | |||||
| Curent de scurgere |
It can be freely configured by computer software |
|||||
| Sursa de putere | Ac 220V 10% single-phase AC voltage and S0Hz 1% frecvenţă | |||||
| Test environment | Temperatura: 15 ~ 30C, umiditatea relativa: 30%~65% can be stable operation. | |||||
| Overall dimension |
Length X width X height: 1000X1000X1400 mm |
|||||
| Dead weight of equipment |
150kg |
300kg | ||||
| Grounding requirement | The instrument needs to be grounded separately, according to the national standard requirements, and the metal forest is buried at least 1.5 meters underground | |||||
